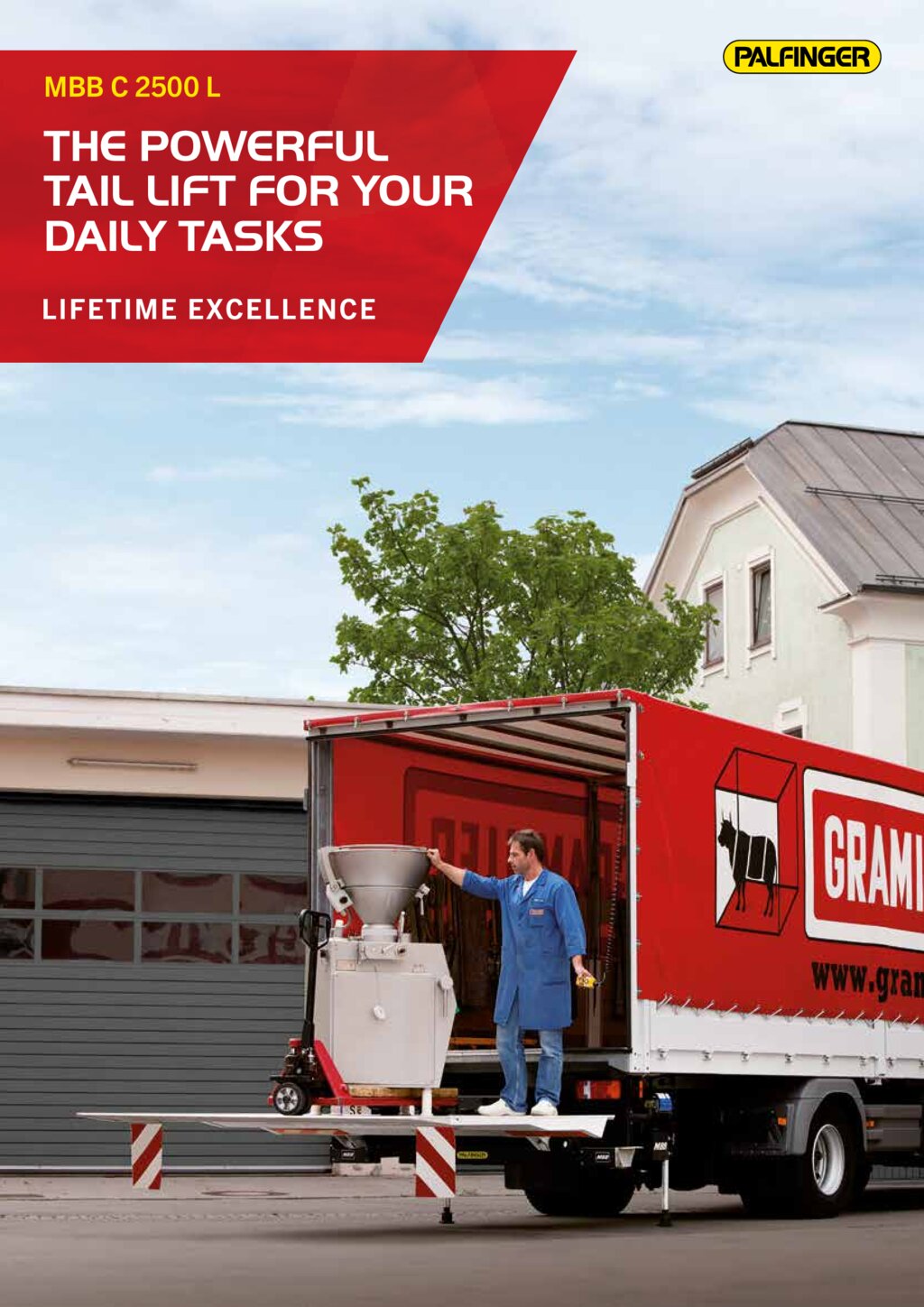

- The weight-optimised heavy-load tail lift
- 2,500 kg lifting capacity with 750 mm load distance
- Four-cylinder lifting mechanism with four lifting arm lengths from 700 to 1,000 mm
- Available with aluminium or steel platform
- Many options available
Lifting capacity : 2500
kg
Main beam : 180 x 180 mm
Lifting gear hydraulics : 2 lifting cylinder / 2 tilting cylinder
Platform overlap with floor : - 63 mm
Lift arm pitch /Lift arm length : 1300 mm
Load centre - lengthwise : 750
mm
Load centre - across center : Central 50% of rated load on one side
Inclination angle of the platform : 90° to -10
| Platform type | Platform width | platform height | Dead Weight | Dead Weight |
| 547 kg | 1850 mm | 2500 mm | alu | - |
| 569 kg | 2100 mm | 2500 mm | alu | - |
| 735 kg | 2009 mm | 2500 mm | steel | - |
| 785 kg | 2109 mm | 2500 mm | steel | - |
| a (mm) | Q (kg) |
| 750 | 2500 |
| 900 | 2050 |
| 1100 | 1700 |
| 1600 | 1150 |
| 2400 | 750 |
Feasibility study
Webtool for automatic feasibility study for C- Type Lifts
Here you can create your feasibility study drawing online. For an extensive range of vehicles, quickly and without obligation
Dimensions
| Lift arms (in mm) | 700 | 800 | 900 | 1000 |
| H (max.) Loading height unloaded | 1160 | 1345 | 1444 | 1651 |
| H (min.) Loading height loaded | 883 | 916 | 1006 | 950 |
| F (max.) Middle of main beam to upper edge of loading floor | 650 | 785 | 820 | 977 |
| K (min.) at dimension F (max.) | 618 | 641 | 751 | 721 |
| D (min.) Installation space (min.) | 768 | 791 | 901 | 871 |
| D (max.) Installation space (max.) | 876 | 970 | 1057 | 1190 |
| F (min.) | 508 | 566 | 614 | 569 |
| K (max.) at dimension F (min.) | 726 | 820 | 907 | 1040 |
The specified weights apply to the lightest platforms of the corresponding height. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
