EQUIPMENT

  • Lifting capacity 1,000/1,500 kg with 1,000 mm load distance

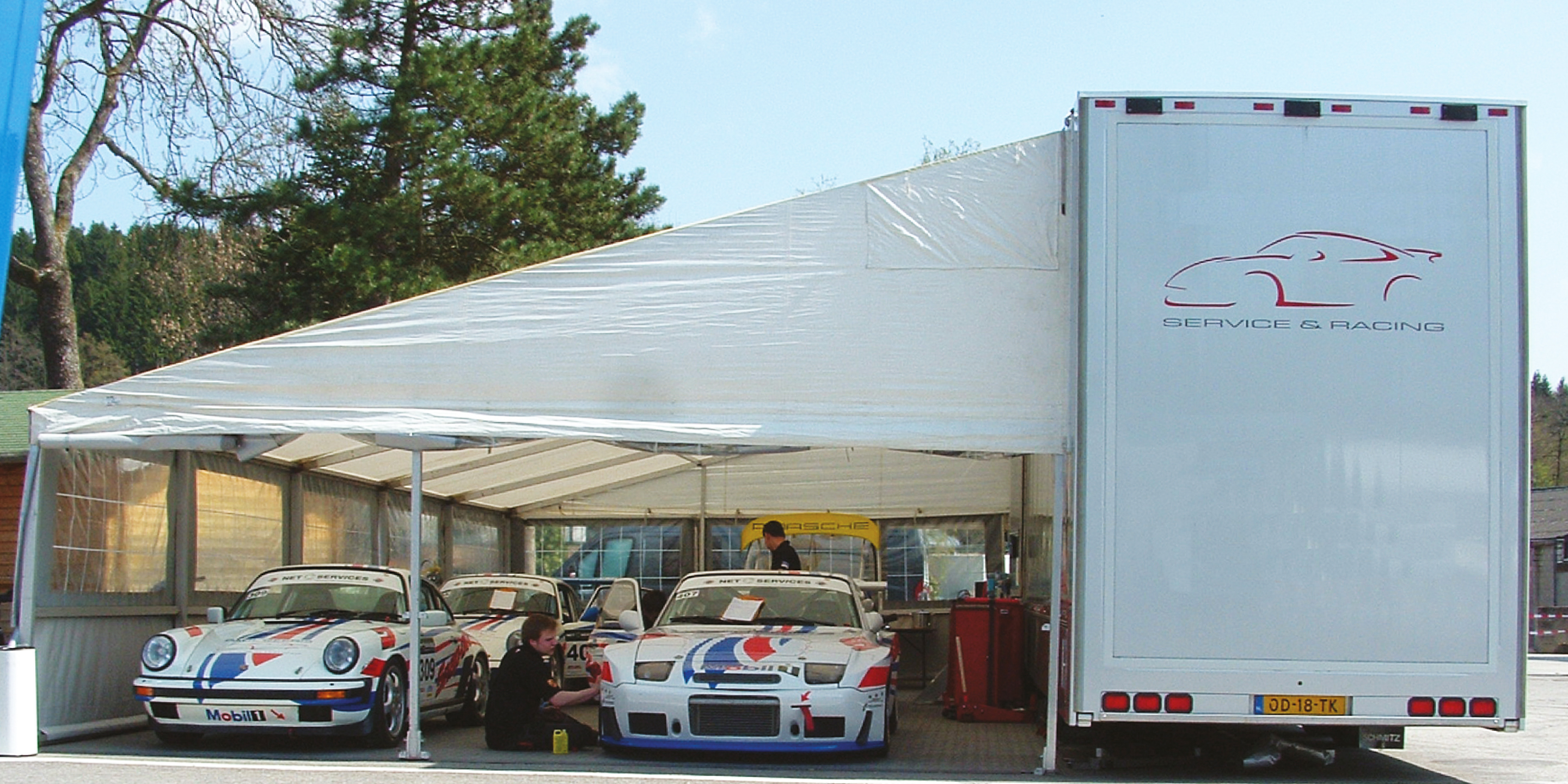

  • Specially for transportation of vehicles SCL
  • For mobile applications, e. g. skiploaders containers (SML)
  • Low-maintenance drive positioned above • Large platform with dimensions 3,450 x 2,420 mm
  • The mounting frame made from KTL-coated steel can be directly attached to the vehicle frame
  • Integrated platform locking via the upper drive box
Platform type Platform width platform height Dead Weight Dead Weight
Q Traglast (kg) 1000 1500
a load distance (mm) 1000 1000



A lifting height 3864 mm
B lifting width 2543 mm
H1 height of deck 1 1900 mm
H2 height of deck 2 1798 mm
X platform height 2771 mm
Y height of bridging plate (as platform extension Y-80)
Maximum loading-space width 1990 mm
Maximum loading-space height 1798 mm







The specified weights apply to the lightest platforms of the corresponding height. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
