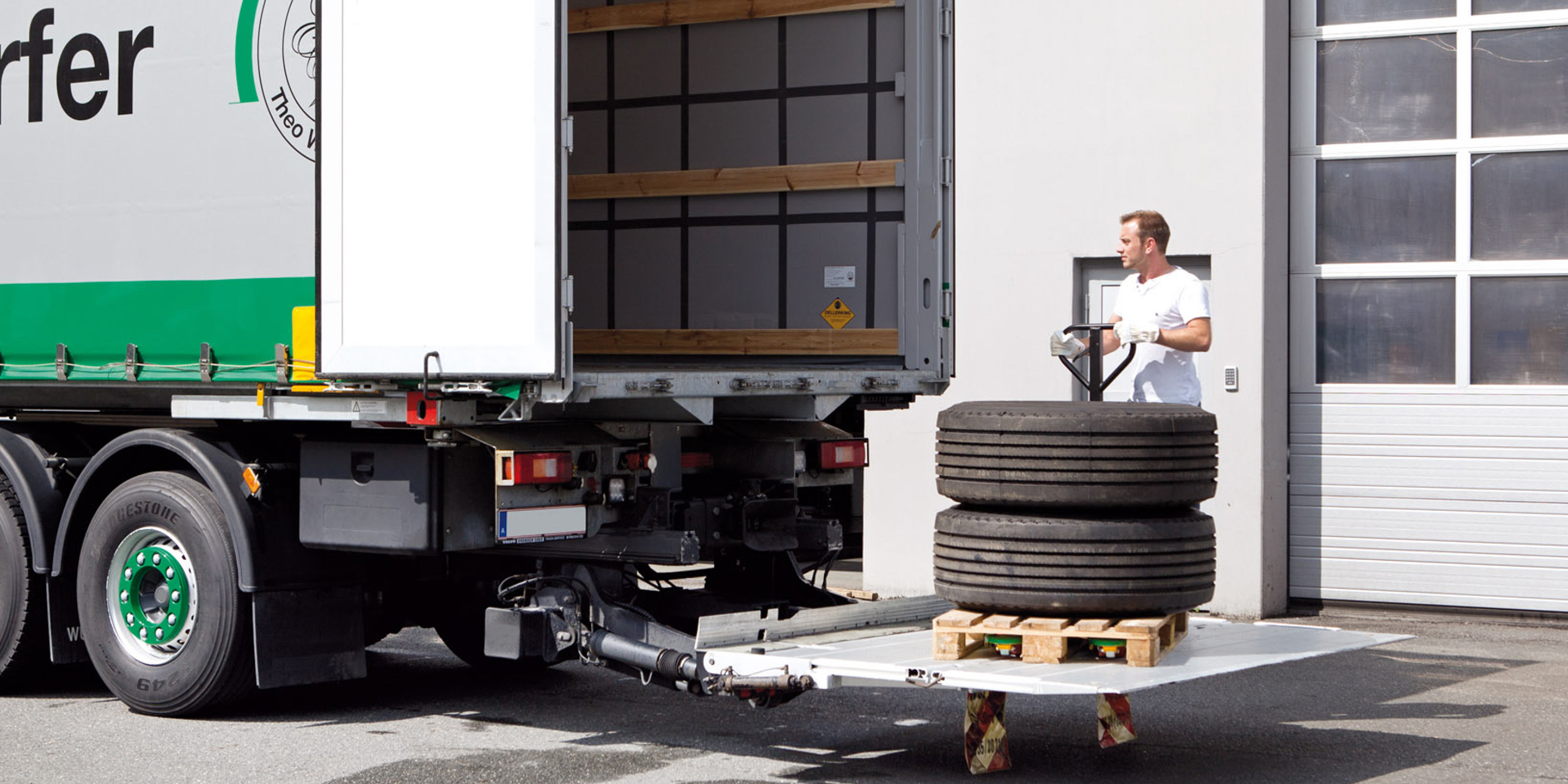

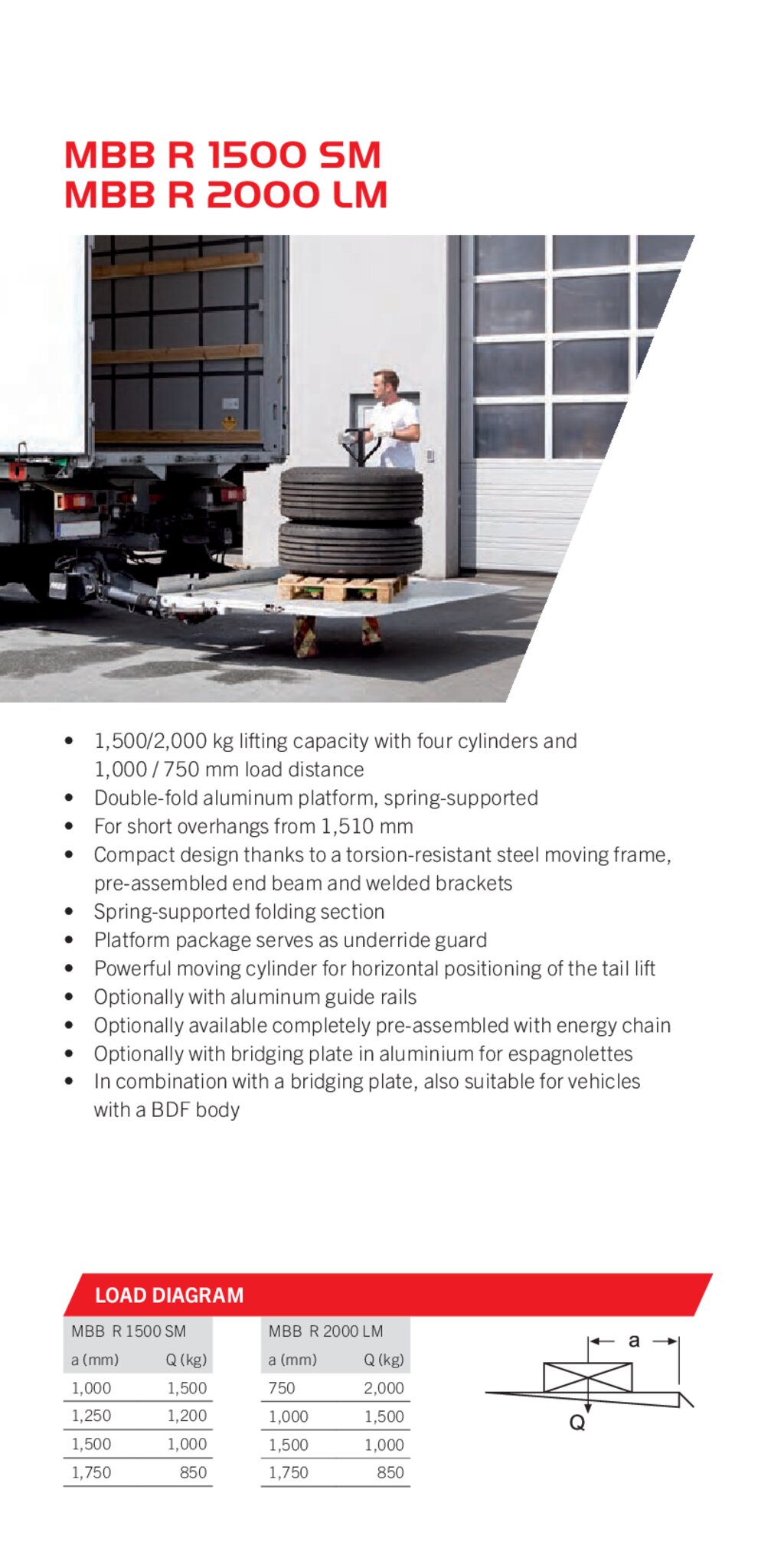

- 1,500/2,000 kg lifting capacity with four cylinders and 1,000 / 750 mm load distance
- Double-fold aluminum platform, spring-supported
- For short overhangs from 1,510 mm
- Compact design thanks to a torsion-resistant steel moving frame, pre-assembled end beam and welded brackets
- Spring-supported folding section
- Platform package serves as underride guard
- Powerful moving cylinder for horizontal positioning of the tail lift
- Optionally with aluminum guide rails
- Optionally available completely pre-assembled with energy chain
- Optionally with bridging plate in aluminium for espagnolettes
- In combination with a bridging plate, also suitable for vehicles with a BDF body
Lifting capacity : 2000
kg
Main beam : 180 x 180 mm
Lifting gear hydraulics : 2 lifting cylinders / 2 tilting cylinders / 1 moving cylinder
Lift arm pitch /Lift arm length : 1300
mm
Load centre - lengthwise : 750
mm
Load centre - across center : Central 50% of rated load on one side
Inclination angle of the platform : 10° to -10
| Platform type | Platform width | platform height | Dead Weight | Dead Weight |
| 650 kg | 1805 mm | 2300 mm | alualu | - |
| a (mm) | Q (kg) |
| 750 | 2000 |
| 1000 | 1500 |
| 1500 | 1000 |
| 1750 | 850 |
The specified weights apply to the lightest platforms of the corresponding height. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
