- Lifting capacity 1,500/2,000 kg with four cylinders and 750/1,000 mm load distance
- Simple-fold platform

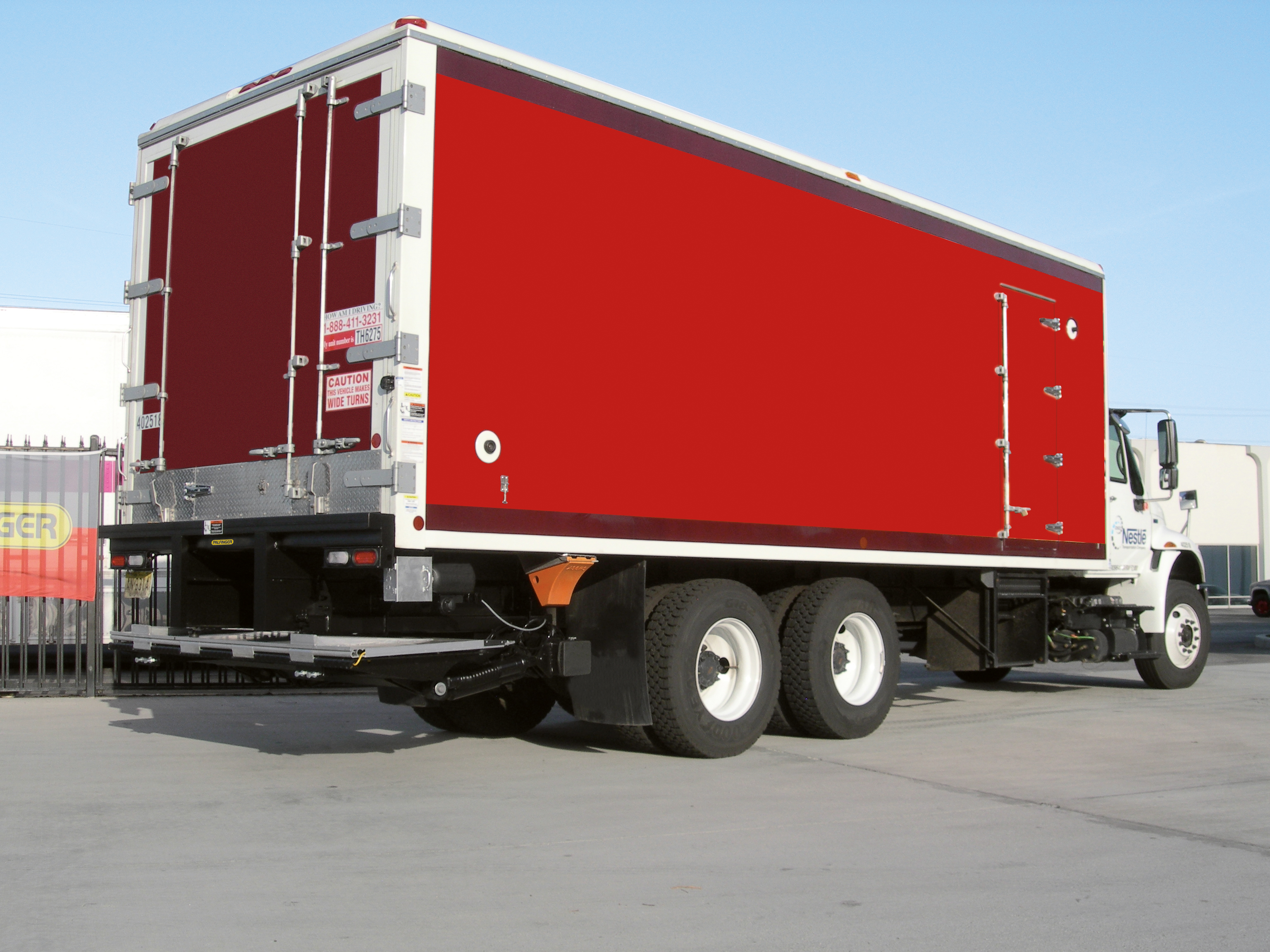

- Specially designed for installation on motor vehicles
- Optimal adaptation for different frame widths of 750 – 865 mm
- Steel/aluminium platform design ≥ Spring-supported folding section
- Platform housing serves as underride guard
- Steel bridging projection for espagnolettes
- Powerful cylinder for horizontal positioning of the tail lift
- Compact design thanks to a torsion-resistant steel moving frame, pre-assembled end beam and welded brackets
- Control box holder for installation on the moving unit
Lifting capacity : 2000
kg
Main beam : 180 x 180 mm
Lifting gear hydraulics : 2 lifting cylinders / 2 tilting cylinders / 1 moving cylinder
Lift arm pitch /Lift arm length : 1300 mm
Load centre - lengthwise : 750
mm
Load centre - across center : Central 50% of rated load on one side
Inclination angle of the platform : 10° to -10
| Platform type | Platform width | platform height | Dead Weight | Dead Weight |
| 615 kg | 1805 mm | 2400 mm | alualu | - |
| 648 kg | 1800 mm | 2400 mm | alualu | - |
| a (mm) | Q (kg) |
| 750 | 2000 |
| 900 | 1650 |
| 1100 | 1300 |
| 1600 | 950 |
| Lift arms (in mm) | 800 | 900 |
| H (max.) Loading height unloaded | 1428 | 1548 |
| H (min.) Loading height loaded | 916 | 1006 |
| F (max.) Middle of main beam to upper edge of loading floor | 817 | 924 |
| K (min.) at dimension F (max.) | 601 | 623 |
| D (min.) Installation space (min.) | 1870 | 1970 |
| F (min.) | 566 | 614 |
| K (max.) at dimension F (min.) | 820 | 907 |
| G (max.) Unloaded (middle of main beam to ground) | 611 | 624 |
| G (min.) loaded | 350 | 392 |
| E (max.) Vehicle frame width (max.) | 866 | 866 |
| E (min.) Vehicle frame width (min.) | 752 | 752 |
The specified weights apply to the lightest platforms of the corresponding height. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
