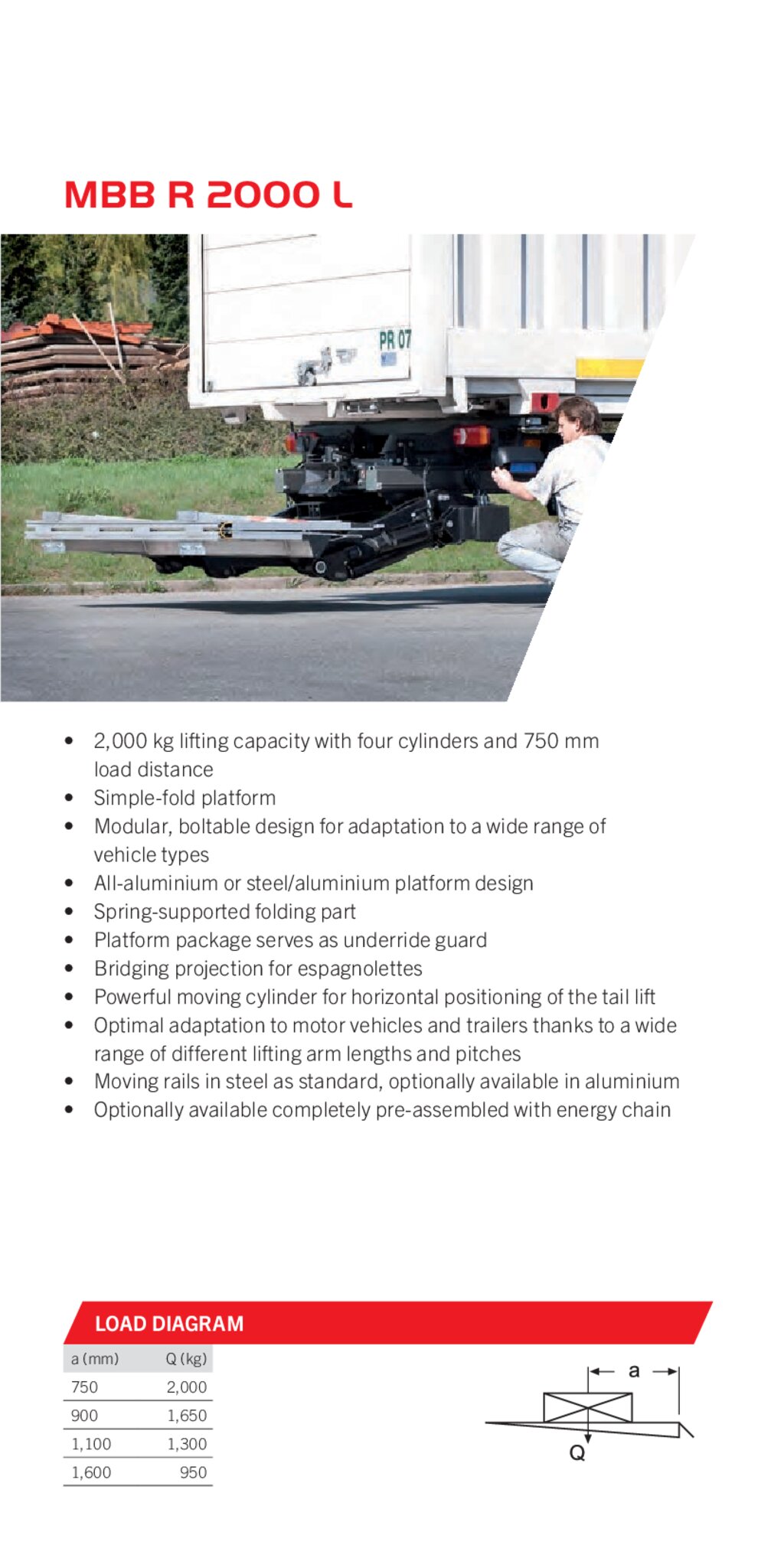

- 2,000 kg lifting capacity with four cylinders and 750 mm load distance
- Simple-fold platform
- Modular, boltable design for adaptation to a wide range of vehicle types
- All-aluminium or steel/aluminium platform design
- Spring-supported folding part
- Platform package serves as underride guard
- Bridging projection for espagnolettes
- Powerful moving cylinder for horizontal positioning of the tail lift
- Optimal adaptation to motor vehicles and trailers thanks to a wide range of different lifting arm lengths and pitches
- Moving rails in steel as standard, optionally available in aluminium
- Optionally available completely pre-assembled with energy chain
Lifting capacity : 2000
kg
Main beam : 180 x 180 mm
Lifting gear hydraulics : 2 lifting cylinders / 2 tilting cylinders / 1 moving cylinder
Lift arm pitch /Lift arm length : 750 / 1300 / 1480 mm
Load centre - lengthwise : 750
mm
Load centre - across center : Central 50% of rated load on one side
Inclination angle of the platform : 10° to -10
| Platform type | Platform width | platform height | Dead Weight | Dead Weight |
| 665 kg | 1805 mm | 2400 mm | alualu | - |
| 770 kg | 1800 mm | 2400 mm | steelalu | - |
| a (mm) | Q (kg) |
| 750 | 2000 |
| 900 | 1650 |
| 1100 | 1300 |
| 1600 | 950 |
| Lift arms (in mm) | 700 | 800 | 900 | 1000 | 1100 |
| H (max.) Loading height unloaded | 1200 | 1428 | 1548 | 1651 | 1793 |
| H (min.) Loading height loaded | 883 | 916 | 1006 | 950 | 1023 |
| F (max.) Middle of main beam to upper edge of loading floor | 650 | 817 | 924 | 977 | 1056 |
| K (min.) at dimension F (max.) | 618 | 601 | 623 | 721 | 783 |
| D (min.) Installation space (min.) | 1800 | 1800 | 1900 | 1900 | 2000 |
| F (min.) | 508 | 566 | 614 | 569 | 608 |
| K (max.) at dimension F (min.) | 726 | 820 | 624 | 674 | 737 |
| G (max.) Unloaded (middle of main beam to ground) | 550 | 611 | 624 | 674 | 737 |
| G (min.) loaded | 375 | 350 | 392 | 381 | 415 |
| E (max.) Vehicle frame width (max.) | 920 | 920 | 920 | 920 | 920 |
| E (min.) Vehicle frame width (min.) | 645 | 645 | 645 | 645 | 645 |
The specified weights apply to the lightest platforms of the corresponding height. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
