- 1,500/2,000 kg lifting capacity with 750/1,000 mm load distance
- Double-fold platform
- Specially designed for short overhangs and swap bodies (BDF)
- All-aluminium, anodised platform design
- Extension/retraction and folding/unfolding processes are effected hydraulically with just one operating step

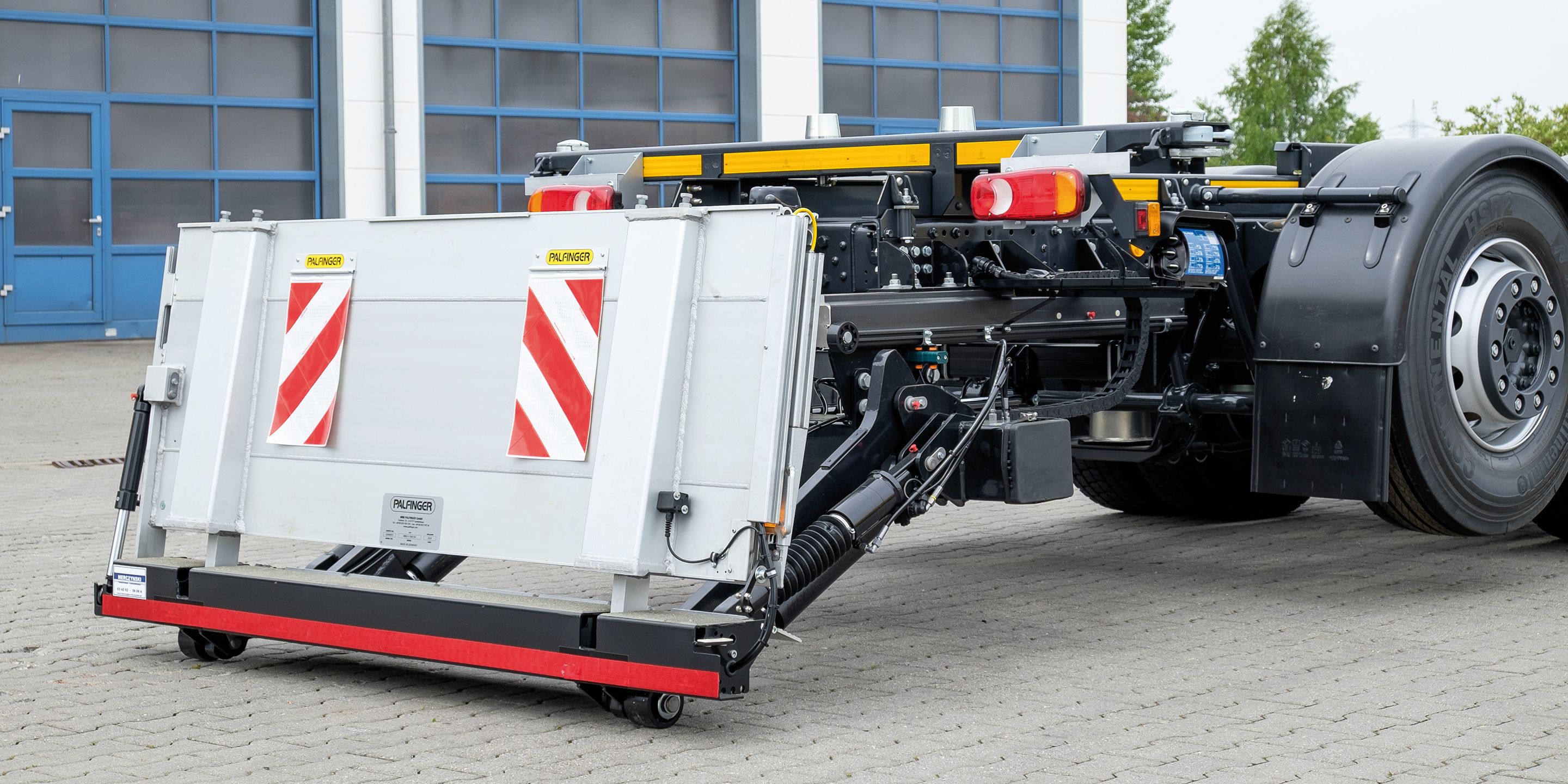

- Platform housing serves as underride guard ≥ Self-assembling bridging plate with fold-back mechanism
- Powerful cylinder for horizontal positioning of the tail lift
- Moving rails in aluminium as standard
- Completely pre-assembled with energy chain
- Lifting mechanism painted in RAL 9011
- Patented fast installation for all common vehicles with chassis widths of 758 – 800/810 – 870 mm
Lifting capacity : 1500
kg
Main beam : 180 x 180 mm
Lifting gear hydraulics : 2 lifting cylinders / 2 tilting cylinders / 1 moving cylinder
Lift arm pitch /Lift arm length : 1300 mm
Load centre - lengthwise : 1000
mm
Load centre - across center : Central 50% of rated load on one side
Inclination angle of the platform : 0° to -10°
| Platform type | Platform width | platform height | Dead Weight | Dead Weight |
| 775 kg | 1805 mm | 2300 mm | alualu | - |
| a (mm) | Q (kg) |
| 1000 | 1500 |
| 1200 | 1250 |
| 1500 | 1000 |
| 1850 | 800 |
| Lift arms (in mm) | 1040 |
| H (max.) Loading height unloaded | 1711 |
| H (min.) Loading height loaded | 1054 |
| F (max.) Middle of main beam to upper edge of loading floor | 1110 |
| K (min.) at dimension F (max.) | 510 |
| D (min.) Installation space (min.) | 1544 |
| F (min.) | 714 |
| K (max.) at dimension F (min.) | 949 |
| G (max.) Unloaded (middle of main beam to ground) | 600 |
| G (min.) loaded | 290 |
| E (max.) Vehicle frame width (max.) | 870 |
| E (min.) Vehicle frame width (min.) | 758 |
The specified weights apply to the lightest platforms of the corresponding height. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
