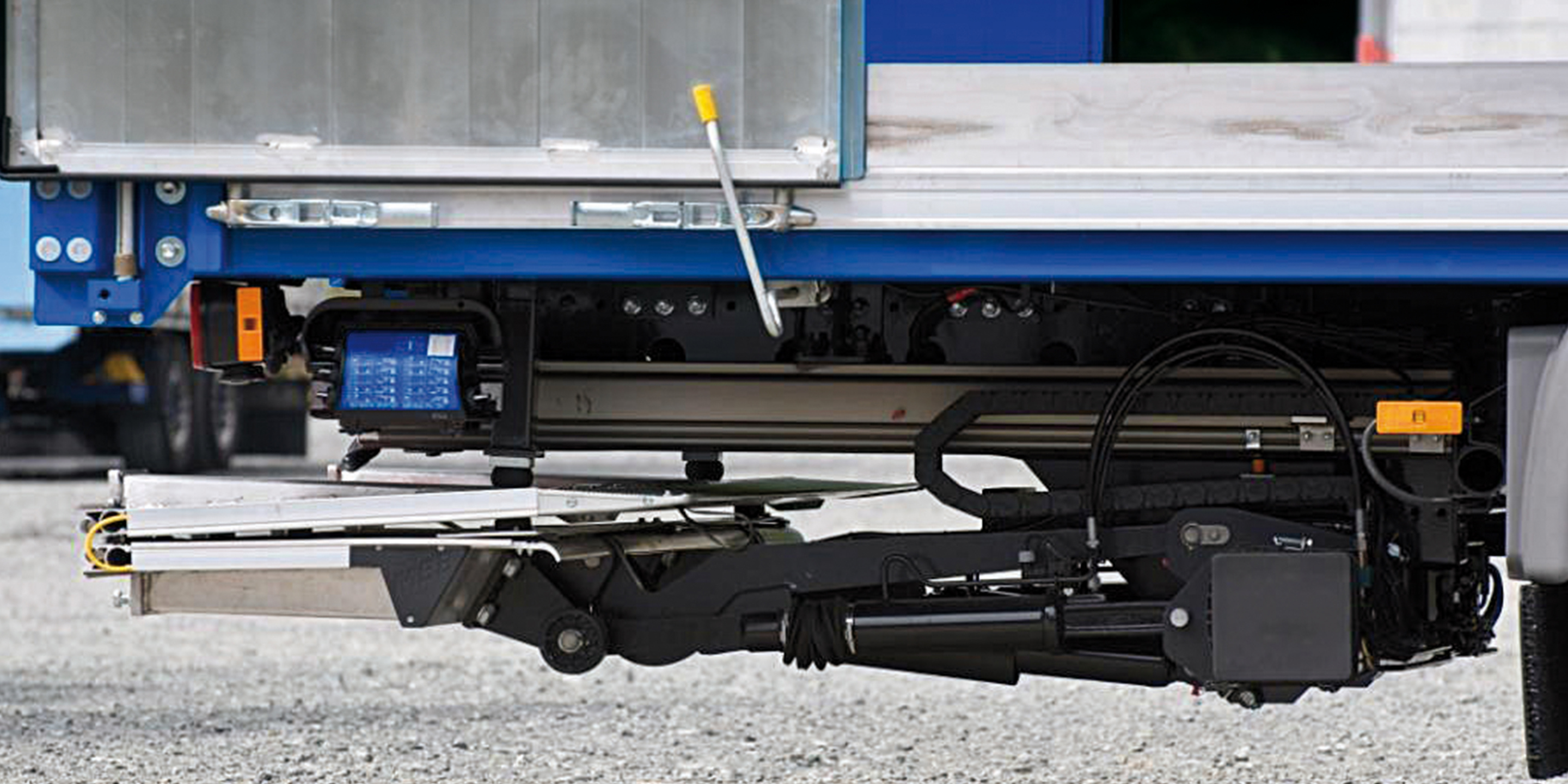

- 1,500 kg lifting capacity with four cylinders and 600 mm load distance
- Simple-fold platform
- Modular, boltable design for adaptation to a wide range of vehicle types
- All-aluminium or steel/aluminium platform design
- Spring-supported folding part
- Platform housing serves as underride guard
- Bridging projection for espagnolettes
- Powerful moving cylinder for horizontal positioning of the tail lift
- Optimal adaptation to motor vehicles and trailers thanks to a wide range of different lifting arm lengths and pitches
- Moving rails in steel as standard, optionally available in aluminium
- Optionally available completely pre-assembled with energy chain
Lifting capacity : 1500
kg
Main beam : 180 x 180 mm
Lifting gear hydraulics : 2 lifting cylinders / 2 tilting cylinders / 1 moving cylinder
Lift arm pitch /Lift arm length : 760 / 1310 / 1490 mm
Load centre - lengthwise : 600
mm
Load centre - across center : Central 50% of rated load on one side
Inclination angle of the platform : 10° to -10
| Platform type | Platform width | platform height | Dead Weight | Dead Weight |
| 598 kg | 1805 mm | 2400 mm | alualu | - |
| 688 kg | 1800 mm | 2400 mm | steelalu | - |
| a (mm) | Q (kg) |
| 600 | 1500 |
| 720 | 1250 |
| 900 | 1000 |
| 1200 | 750 |
| Lift arms (in mm) | 700 | 800 | 900 |
| H (max.) Loading height unloaded | 1256 | 1409 | 1546 |
| H (min.) Loading height loaded | 906 | 922 | 998 |
| F (max.) Middle of main beam to upper edge of loading floor | 728 | 811 | 894 |
| K (min.) at dimension F (max.) | 515 | 571 | 627 |
| D (min.) Installation space (min.) | 1800 | 1800 | 1900 |
| F (min.) | 529 | 572 | 625 |
| K (max.) at dimension F (min.) | 710 | 801 | 886 |
| G (max.) Unloaded (middle of main beam to ground) | 528 | 598 | 652 |
| G (min.) loaded | 377 | 350 | 373 |
| E (max.) Vehicle frame width (max.) | 920 | 920 | 920 |
| E (min.) Vehicle frame width (min.) | 645 | 645 | 645 |
The specified weights apply to the lightest platforms of the corresponding height. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
