• Individual installation kits for all common van types
• Fast and simple attachment
• Optimum relationship between lifting capacity and weight
• 600 kg lifting capacity on request
• Removable ball-head coupling optionally available
• With aluminium AluLite 30 platform / AluLite 40L for VAN FLEX
• Bridging plate(s) included
• Illuminated registration plate holder

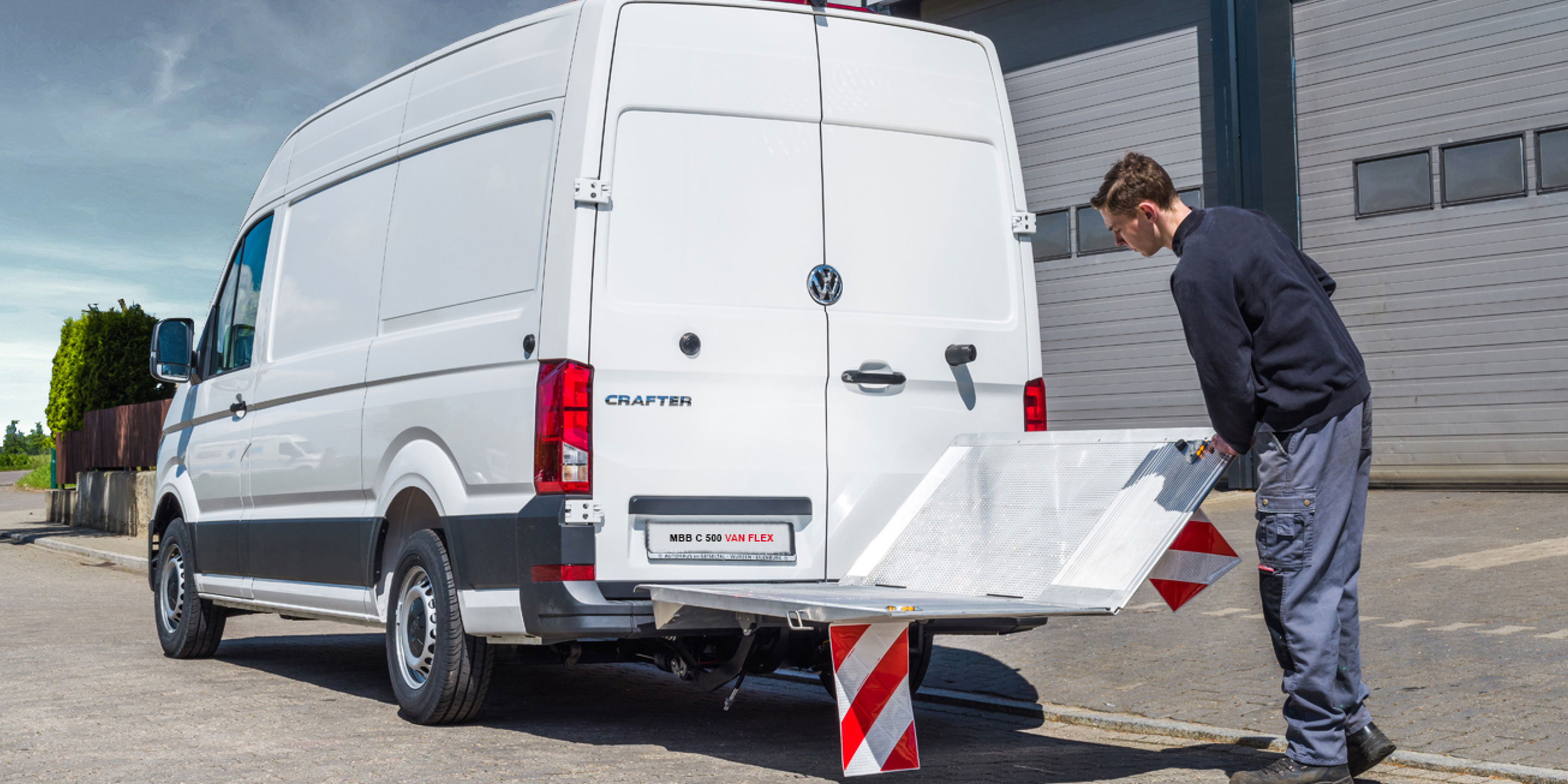

• Folding platform providing full size platform and easy access
• Door can be used to step in and out
• With 2 x 450 mm roll stop as standard

Available for:

• Mercedes-Benz Sprinter
• Volkswagen Crafter and MAN TGE
• Iveco Daily
• Nissan NV 400 / Renault Master / Opel Movano
• Citroen Jumper / Fiat Ducato / Peugeot Boxer
• Ford Transit
• Further vehicle types on request

Main beam : 120 x 80 mm
Lifting gear hydraulics : 1 x lifting cylinder / 1 x tilting cylinder
Lift arm pitch /Lift arm length : 510 mm
Load centre - lengthwise : 600  mm
Load centre - across center : Central, 50% of rated load on one side
Inclination angle of the platform : +90° to -10°
Platform type Platform width platform height Dead Weight Dead Weight

from 160 kg  1575 mm 1400 mm alu
a (mm) Q (kg)
600 500
700 430
820 360
1120 260

Lifting arm lengths (mm) 500
H (max.) Loading height unloaded* 780
H (min.) Loading height loaded* 450
F (max.) Middle of main beam to upper edge of loading floor 340
K (min.) at dimension F (max.) 546
D (min.) Installation space (min.) 814 (926)

* Depending on vehicles



The specified weights apply to the lightest platforms of the corresponding height. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
