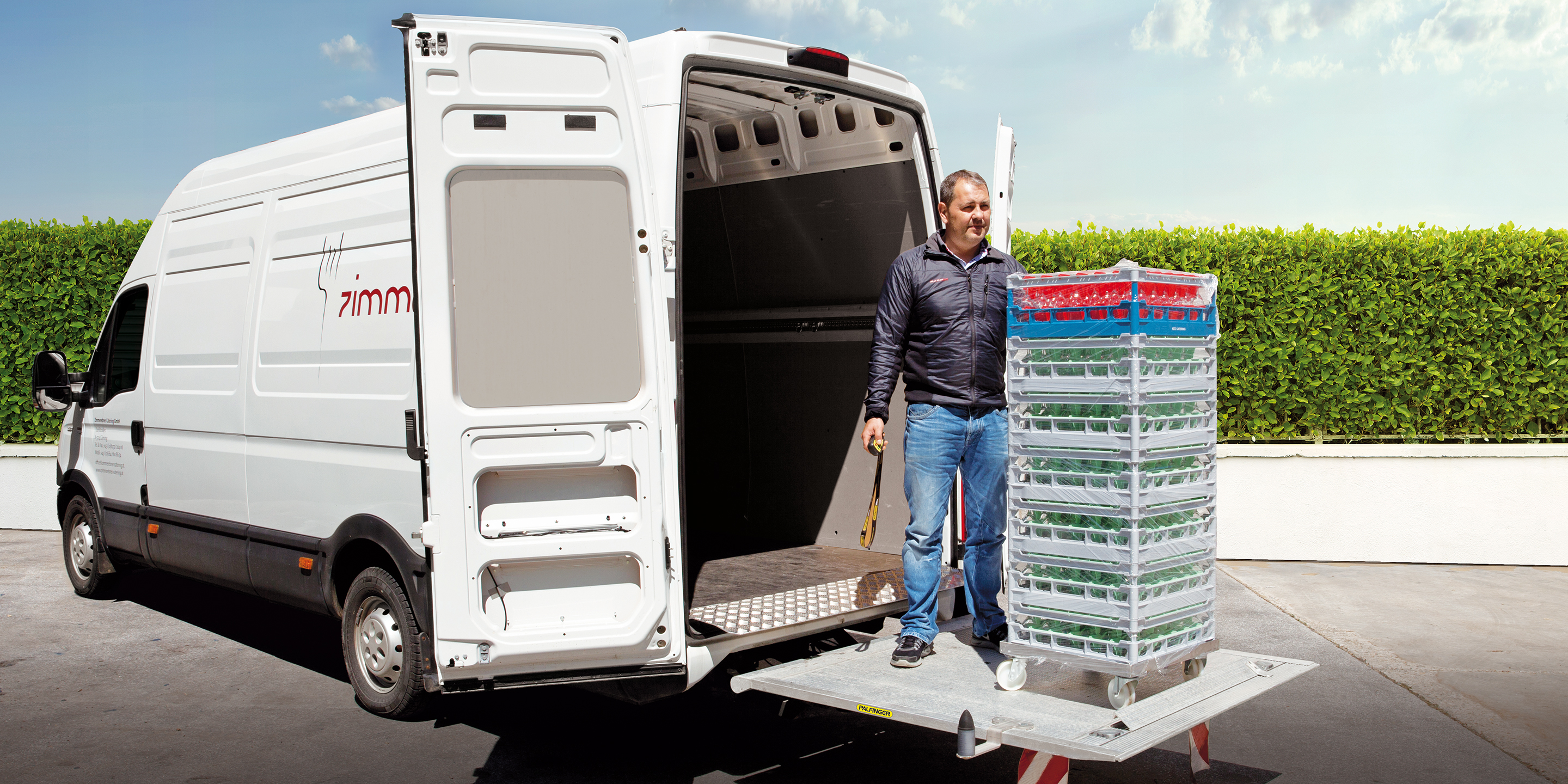

• Individual installation kits for all common van types
• Fast and simple attachment
• Optimum relationship between lifting capacity and weight
• 600 kg lifting capacity on request
• Removable ball-head coupling optionally available
• With aluminium AluLite 30 platform / AluLite 40L for VAN FLEX
• Bridging plate(s) included
• Illuminated registration plate holder
• Full size platform
• Variety of platform dimensions
• With 900 mm roll stop as standard)

Available for :

  • Mercedes-Benz Sprinter
  • Volkswagen Crafter 30/35/50 / MAN TGE
  • Iveco Daily
  • Nissan NV 400 / Renault Master / Opel Movano
  • Citroen Jumper (Relay) / Fiat Ducato / Peugeot Boxer
  • Further vehicle types on request
Main beam : 120 x 80 mm
Lifting gear hydraulics : 1 lifting cylinder / 1 tilting cylinder
Platform overlap with floor : 510 mm
Lift arm pitch /Lift arm length : 600 mm
Load centre - lengthwise : 600  mm
Load centre - across center : Central 50% of rated load on one side
Inclination angle of the platform : +90° to -10°
Platform type Platform width platform height Dead Weight Dead Weight

154 kg 1575 mm 1400 mm alu  -
a (mm) Q (kg)
600 500
700 430
820 360
1120 260
Lifting arm lengths (mm) 500
H (max.) Loading height unloaded 780
H (min.) Loading height loaded 450
F (max.) Middle of main beam to upper edge of loading floor 340
K (min.) at dimension F (max.) 546
D (min.) Installation space (min.) 814 (926)
F (min.) -
K (max.) at dimension F (min.) -
D (max.) installation dimension, maximum -



The specified weights apply to the lightest platforms of the corresponding height. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
