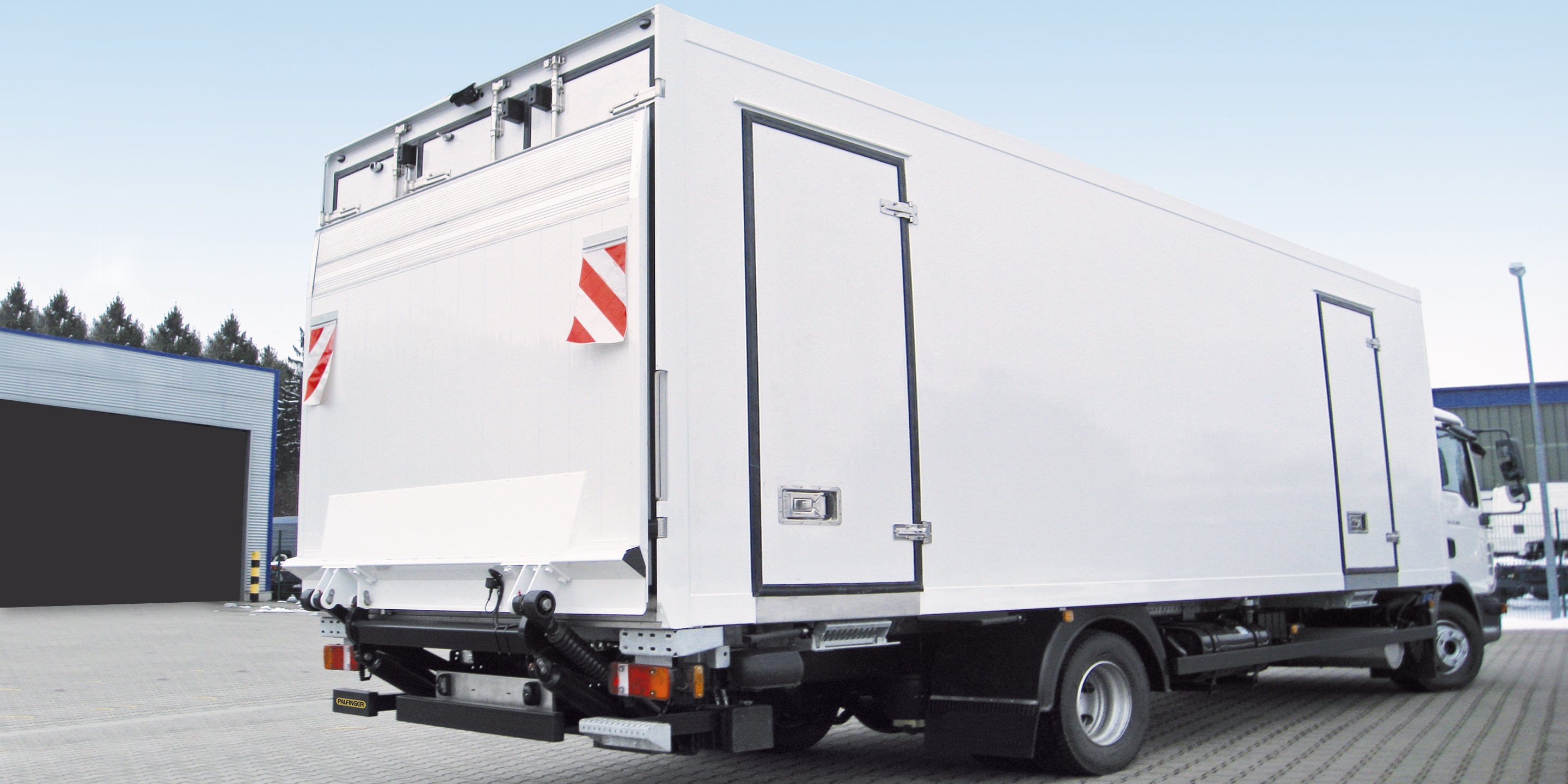

- Optimum ratio of dead weight to payload = greater transport capacity
- Lifting capacity of 2,000 kg with 750 mm load distance
- Variable lifting mechanism with five available lifting arm lengths for all common attachment situations
- Design with aluminium or steel platform
- Wide range of options and equipment variants
Lifting capacity : 2000
kg
Main beam : 180 x 180 mm
Lifting gear hydraulics : 2 lifting cylinder / 2 tilting cylinder
Platform overlap with floor : - 63 mm
Lift arm pitch /Lift arm length : 1300 mm
Load centre - lengthwise : 750
mm
Load centre - across center : Central 50% of rated load on one side
Inclination angle of the platform : +90° to -10°
| Platform type | Platform width | platform height | Dead Weight | Dead Weight |
| 517 kg | 1800 mm | 2500 mm | alu | - |
| 539 kg | 2100 mm | 2500 mm | alu | - |
| a (mm) | Q (kg) |
| 750 | 2000 |
| 900 | 1650 |
| 1100 | 1300 |
| 1600 | 950 |
| 2400 | 600 |
Feasibility study
Webtool for automatic feasibility study for C- Type Lifts
Here you can create your feasibility study drawing online. For an extensive range of vehicles, quickly and without obligation
Dimensions
| Lift arms (in mm) | 750 | 800 | 850 | 950 |
| H (max.) Loading height unloaded | 1340 | 1416 | 1505 | 1657 |
| H (min.) Loading height loaded | 1127 | 1165 | 1204 | 1281 |
| F (max.) Middle of main beam to upper edge of loading floor | 858 | 904 | 967 | 1061 |
| K (min.) at dimension F (max.) | 413 | 434 | 410 | 444 |
| D (min.) Installation space (min.) | 563 | 584 | 560 | 594 |
| D (max.) Installation space (max.) | 752 | 785 | 816 | 880 |
| F (min.) | 742 | 780 | 819 | 896 |
| K (max.) at dimension F (min.) | 602 | 635 | 666 | 730 |
The specified weights apply to the lightest platforms of the corresponding height. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
