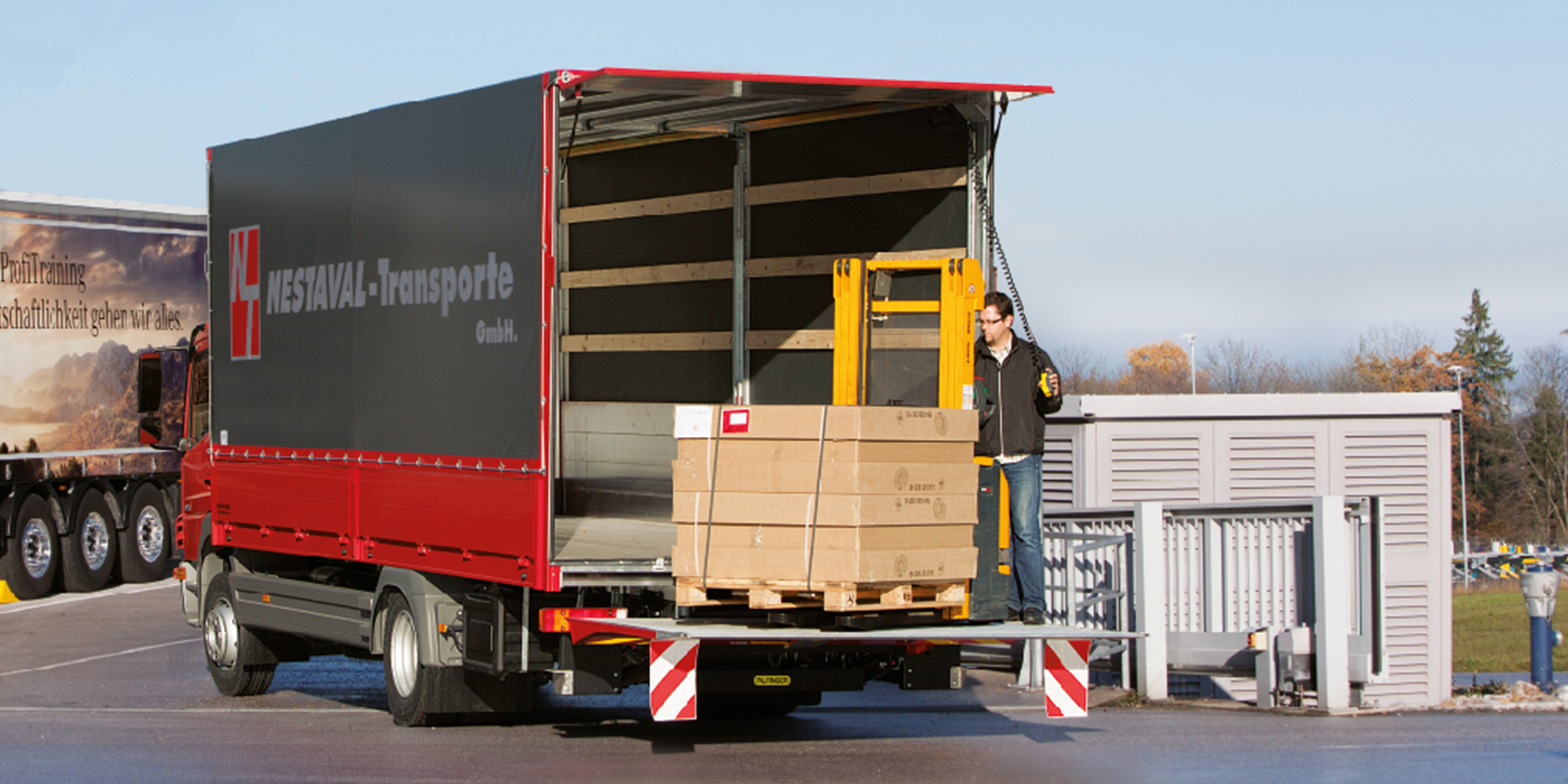

- The lightweight tail lift for a high payload capacity
- 1,500 kg lifting capacity with 600 mm load distance
- Four-cylinder lifting mechanism with three lifting arm lengths from 700 to 900 mm
- Design with aluminium or steel platform
- Wide range of special equipment available
Lifting capacity : 1500
kg
Main beam : 180 x 180 mm
Lifting gear hydraulics : 2 lifting cylinder / 2 tilting cylinder
Platform overlap with floor : -57 mm
Lift arm pitch /Lift arm length : 1.310 mm
Load centre - lengthwise : 600
mm
Load centre - across center : Central 50% of rated load on one side
Inclination angle of the platform : +90° to -10°
| Platform type | Platform width | platform height | Dead Weight | Dead Weight |
| 390 kg | 1600 mm | 2500 mm | alu | - |
| 398 kg | 1700 mm | 2500 mm | alu | - |
| 405 kg | 1800 mm | 2500 mm | alu | - |
| 415 kg | 2050 mm | 2500 mm | alu | - |
| 510 kg | 1509 mm | 2500 mm | steel | - |
| 570 kg | 1809 mm | 2500 mm | steel | - |
| a (mm) | Q (kg) |
| 600 | 1500 |
| 720 | 1250 |
| 900 | 1000 |
| 1200 | 750 |
Feasibility study
Webtool for automatic feasibility study for C- Type Lifts
Here you can create your feasibility study drawing online. For an extensive range of vehicles, quickly and without obligation
Dimensions
| Lift arms (in mm) | 700 | 800 | 900 |
| H (max.) Loading height unloaded | 1256 | 1409 | 1546 |
| H (min.) Loading height loaded | 906 | 922 | 998 |
| F (max.) Middle of main beam to upper edge of loading floor | 728 | 811 | 894 |
| K (min.) at dimension F (max.) | 515 | 571 | 627 |
| D (min.) Installation space (min.) | 665 | 721 | 777 |
| D (max.) Installation space (max.) | 860 | 951 | 1036 |
| F (min.) | 529 | 572 | 625 |
| K (max.) at dimension F (min.) | 710 | 801 | 886 |
The specified weights apply to the lightest platforms of the corresponding height. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
