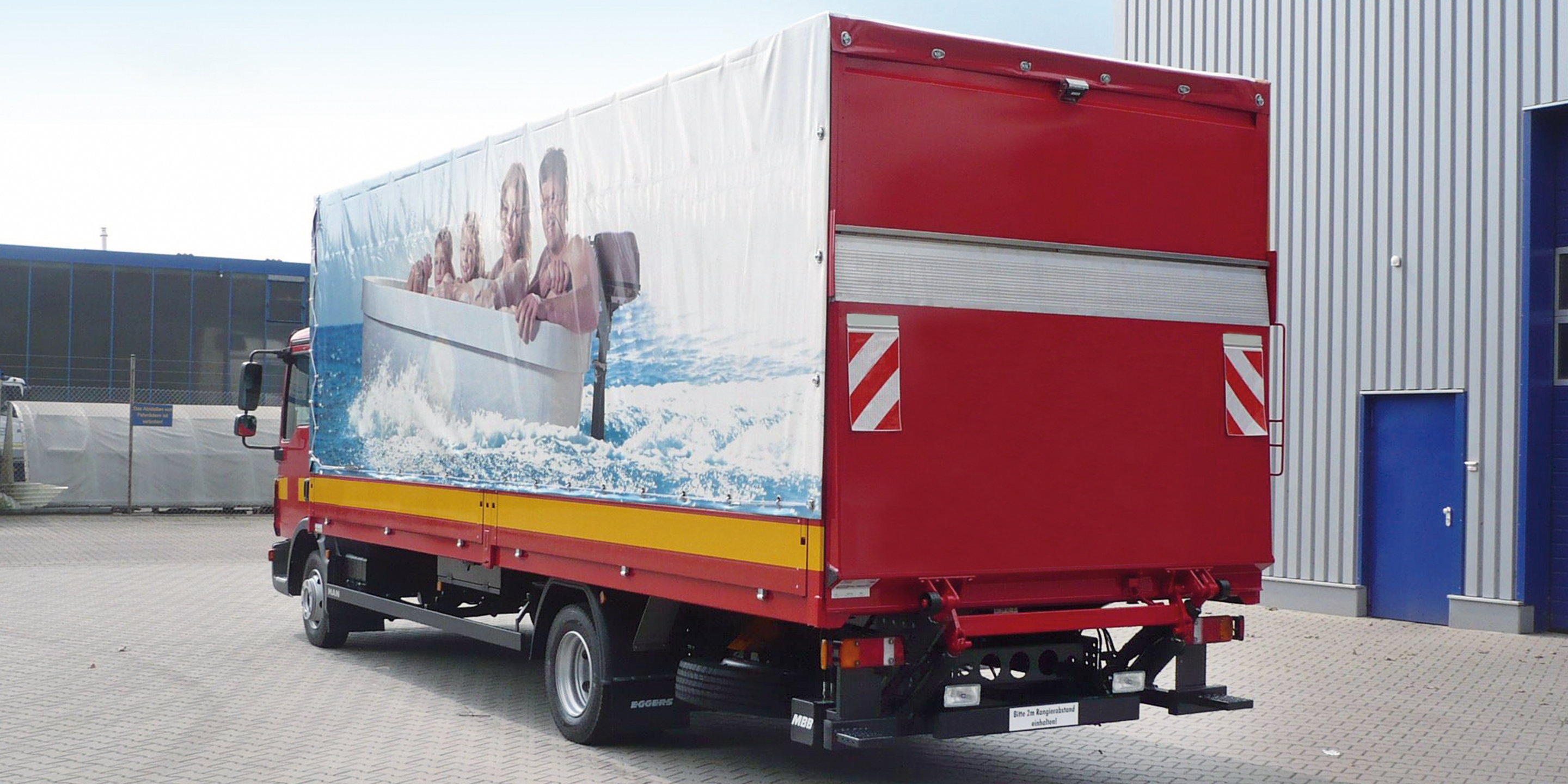

• Proven track record in the logistics industry
• 1,000 kg lifting capacity with increased load distance of 700 mm
• Four-cylinder lifting mechanism with lifting arm lengths from
700 to 900 mm
• Reinforced design for optimum utilisation of lifting capacity
• Equipped with aluminium or steel platform
• Also available as partial tail lift
• Large selection of special equipment available
Lifting capacity : 1000
kg
Main beam : 180 x 180 mm
Lifting gear hydraulics : 2 lifting cylinder / 2 tilting cylinder
Platform overlap with floor : -57 mm
Lift arm pitch /Lift arm length : 1.310 mm
Load centre - lengthwise : 700
mm
Load centre - across center : Central 50% of rated load on one side
Inclination angle of the platform : +90° to -10°
| Platform type | Platform width | platform height | Dead Weight | Dead Weight |
| 376 kg | 1600 mm | 2500 mm | alu | - |
| 384 kg | 1700 mm | 2500 mm | alu | - |
| 390 kg | 1800 mm | 2500 mm | alu | - |
| 401 kg | 2050 mm | 2500 mm | alu | - |
| 478 kg | 1509 mm | 2500 mm | steel | - |
| 538 kg | 1809 mm | 2500 mm | steel | - |
| a（mm） | Q（mm） |
| 700 | 1000 |
| 875 | 800 |
| 1150 | 600 |
| 1700 | 400 |
Feasibility study
Webtool for automatic feasibility study for C- Type Lifts
Here you can create your feasibility study drawing online. For an extensive range of vehicles, quickly and without obligation
Dimensions
| Lift arms (in mm) | 700 | 800 | 900 |
| H (max.) Loading height unloaded | 1256 | 1409 | 1546 |
| H (min.) Loading height loaded | 906 | 922 | 998 |
| F (max.) Middle of main beam to upper edge of loading floor | 728 | 811 | 894 |
| K (min.) at dimension F (max.) | 515 | 627 | 626 |
| D (min.) Installation space (min.) | 665 | 777 | 776 |
| D (max.) Installation space (max.) | 860 | 951 | 1036 |
| F (min.) | 529 | 572 | 625 |
| K (max.) at dimension F (min.) | 710 | 801 | 886 |
The specified weights apply to the lightest platforms of the corresponding height. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
