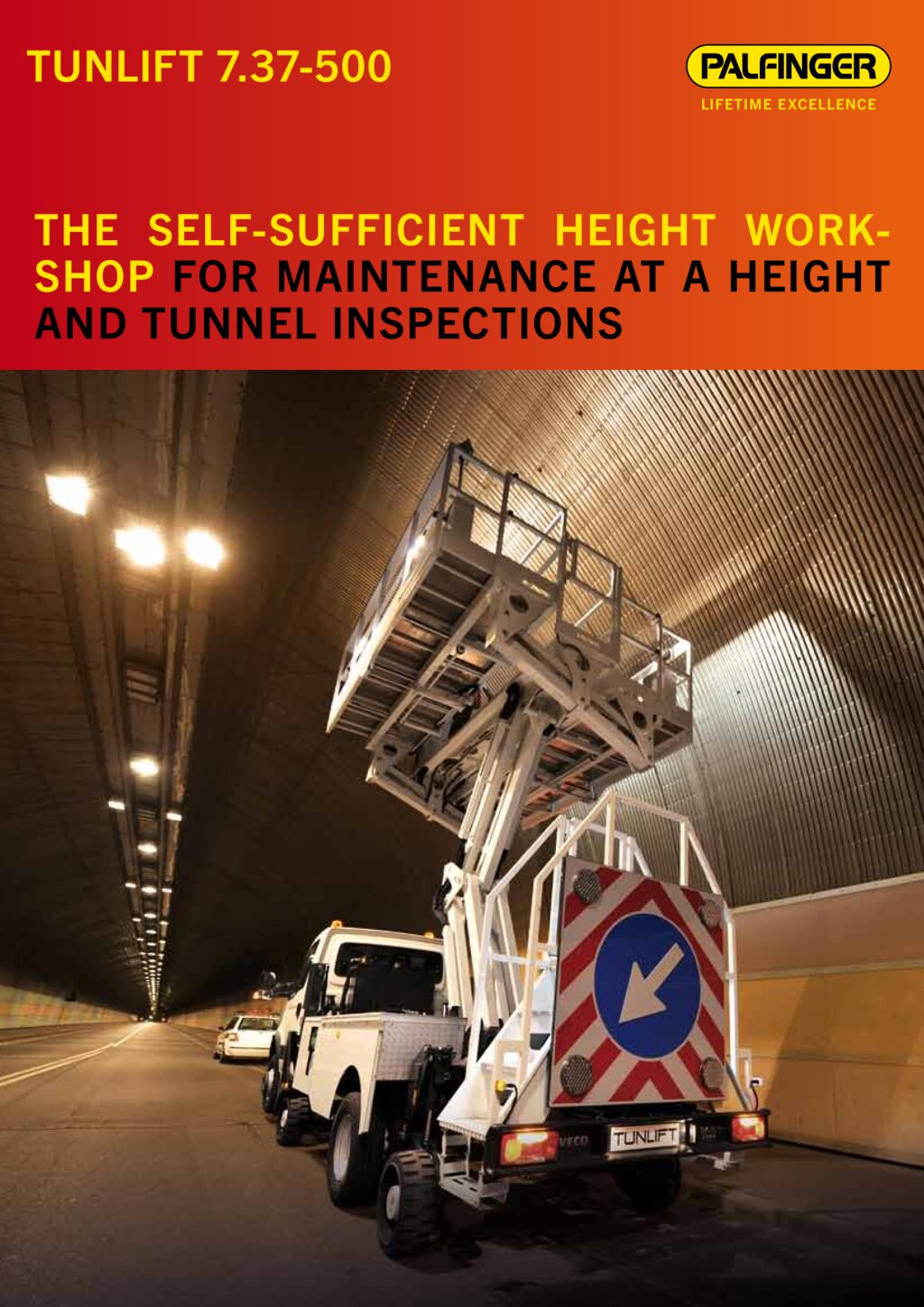

TUNLIFT

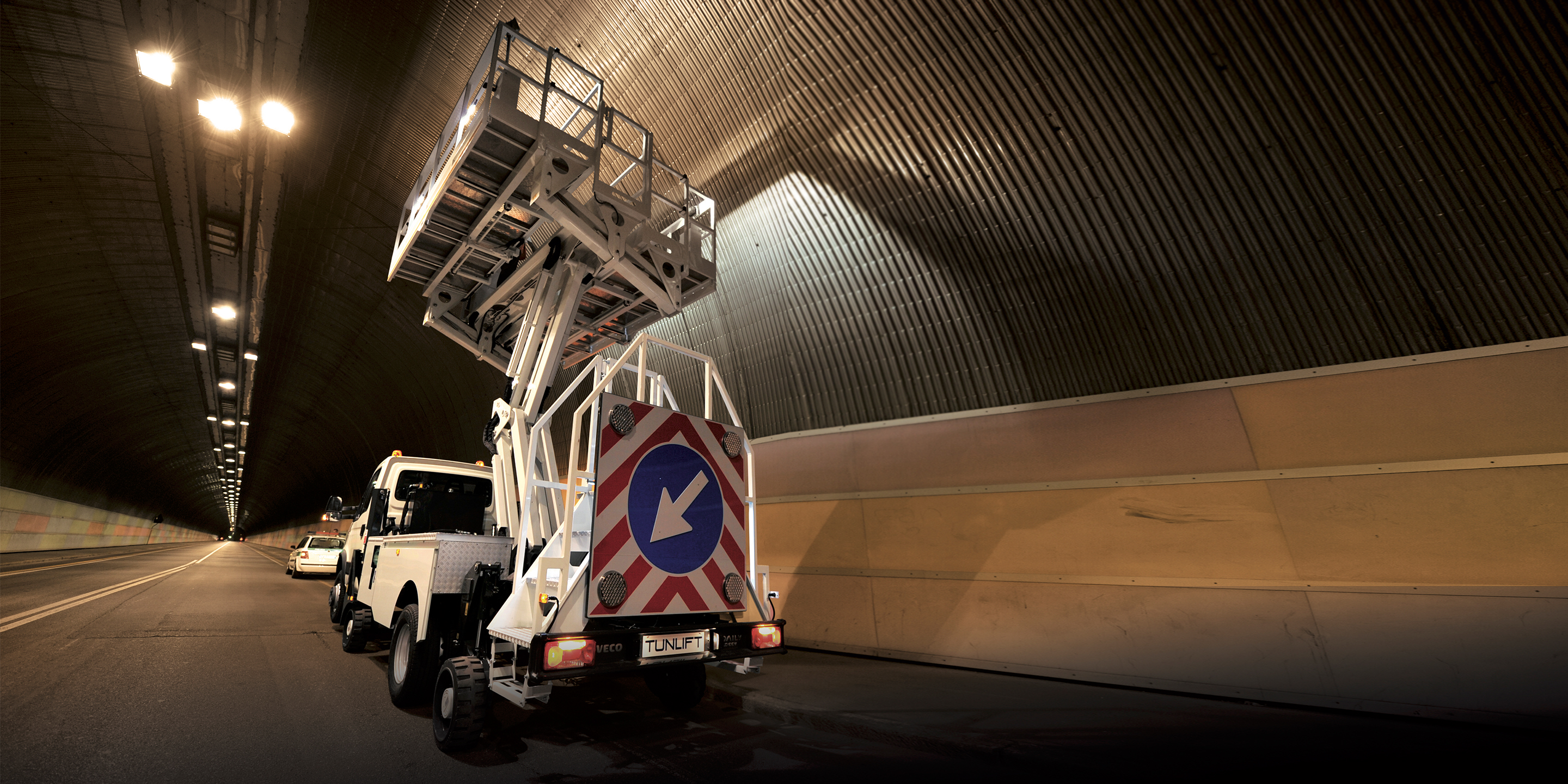

Ideal for on-the-move road works and tunnel and underpass maintenance

  • Platform designed to meet the needs of road works, including tunnel, underpass, bridge, motorway and road maintenance
  • Electricity, water and compressed air supply connections provided on platform
  • Truck can be operated from basket, in self-propelled mode
  • Basket has both swing and extension movements

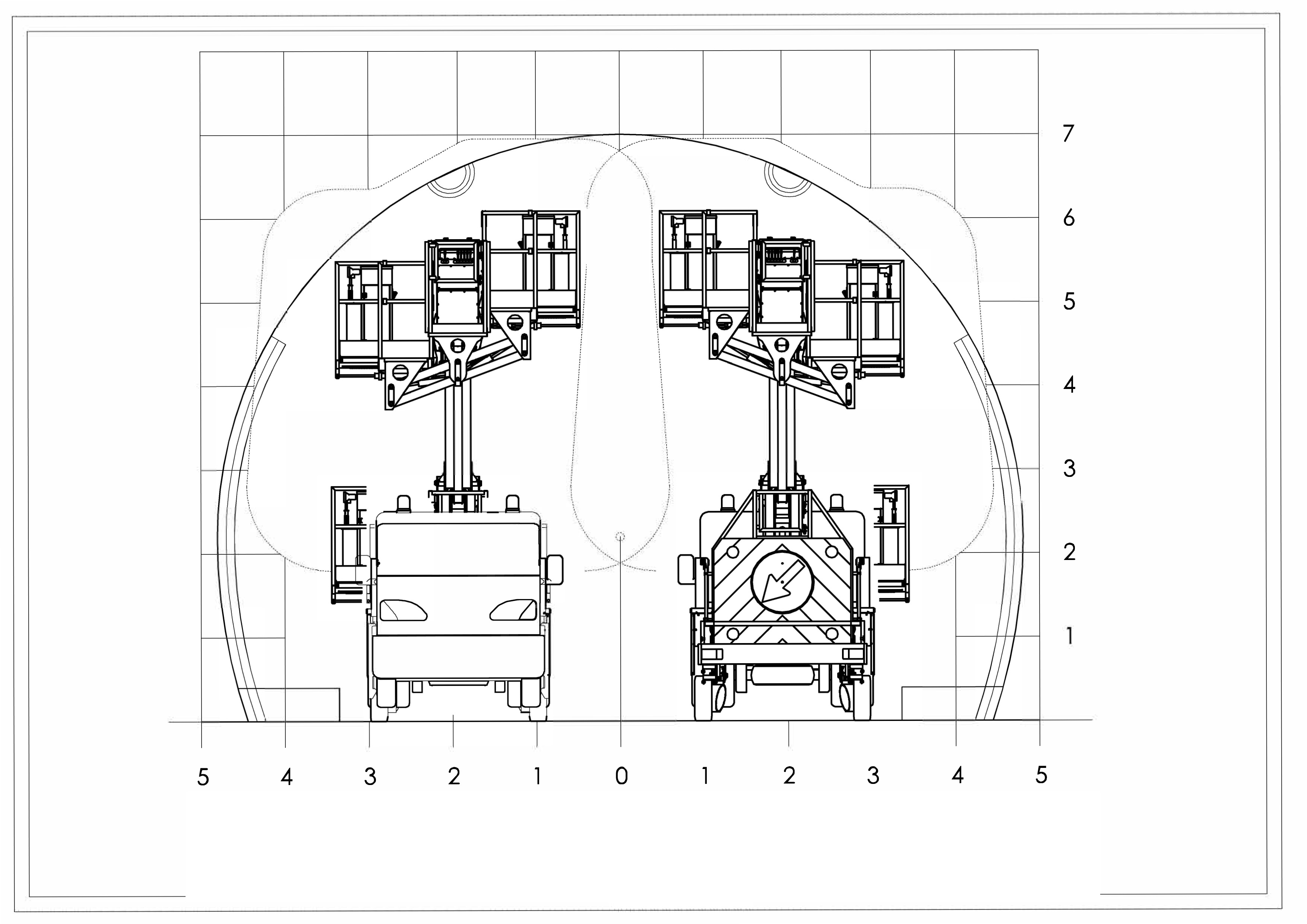

  • Entire ceiling of tunnel can be inspected without restricting traffic in opposite lane
Max. height of work : 7.0  m
Platform lateral extension : 1.0 m right/ 1.0 m left
Load capacity : 500 kg
Controls : Electrohydraulic
Stabilization : 4 stabilisers with vertical lowering



*Above mentioned values are standard values and vary depending on options and chassis.

Units shown are partially optional equipped and do not always correspond to the standard version.

Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.

A possible 2% tolerance is contingent on structural components depending on chassis and equipment.>
