Increased productivity and maximum operator safety on any job site thanks to greater outreach and high quality components.
-
The enhanced basket stability and 300 kg basket load allows you to work more safely and efficiently.
-
A redesigned basket with improved ergonomics makes your work even more comfortable at the same time.
-
The choice is yours: Select from various chassis (3.5t−10.5t) and configurations, all GSR compliant.
-
Stay ahead of the competition and win more future tenders - with the hybrid version now also in emission- and noise-sensitive areas.
-
Track device status, location, upcoming maintenance and charge level anytime, anywhere with PALFINGER Connected.

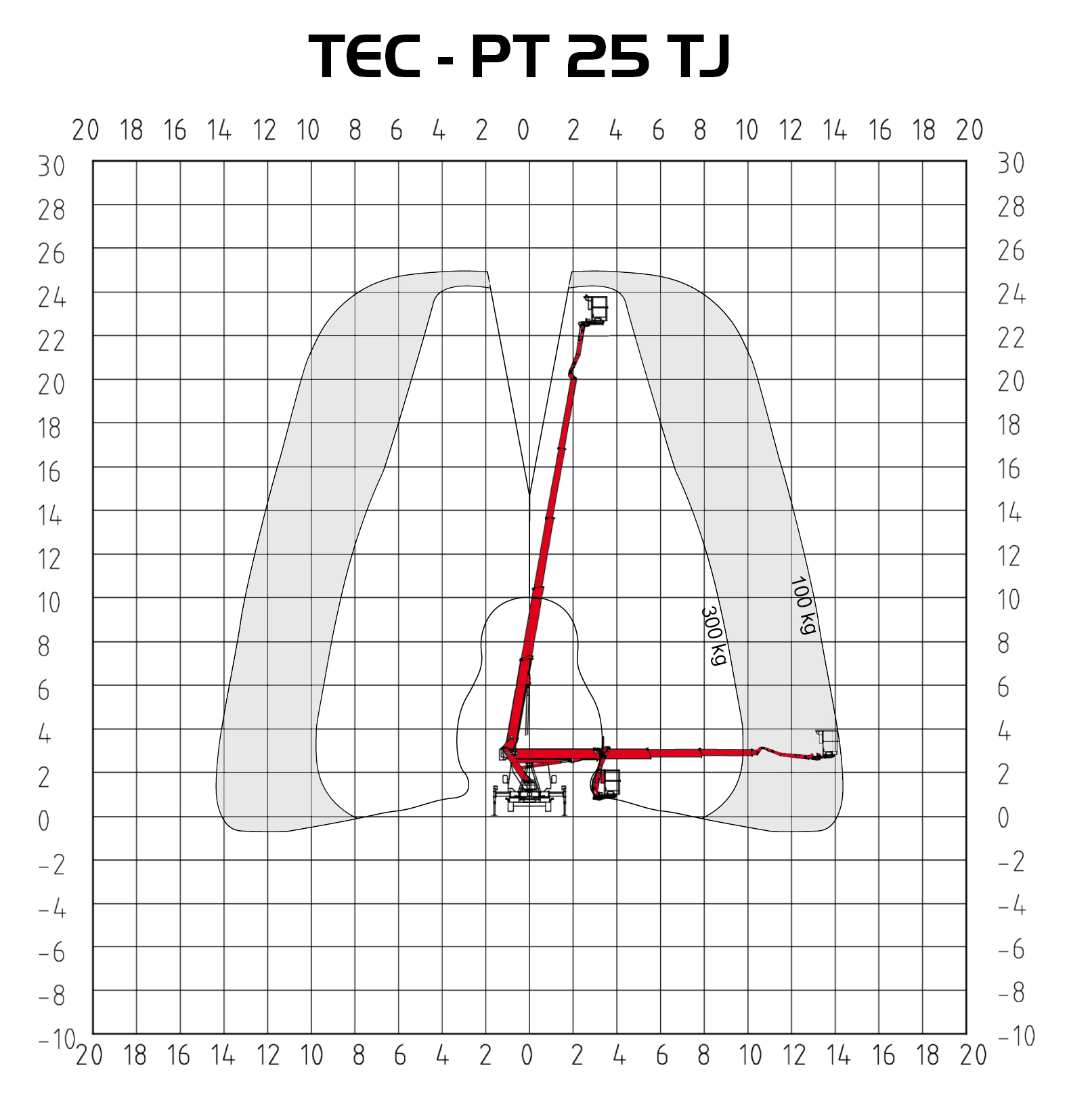

Max. height of work : 24.7
m
Max. basket floor height : 22.7
m

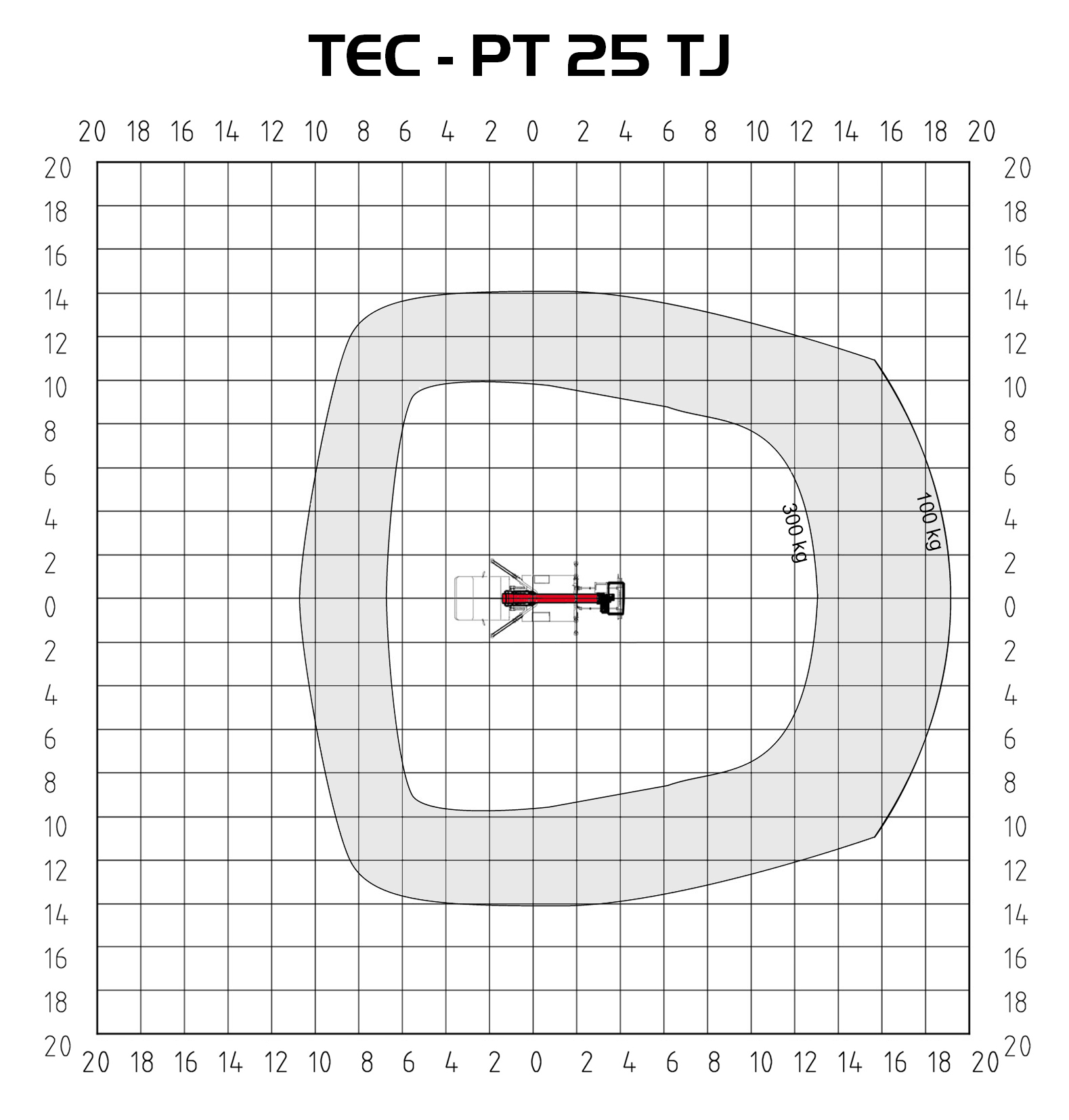

Max. horizontal outreach /with basket load : 18,7 m
Slewing range of basket : 2 x 90°
Operating angle of working arm : 185°
max. basket load : 300
kg
Workman basket - breadth / length / height : 1,4 x 0,7 x 1,1 m
Rotation angle of turntable : 500°

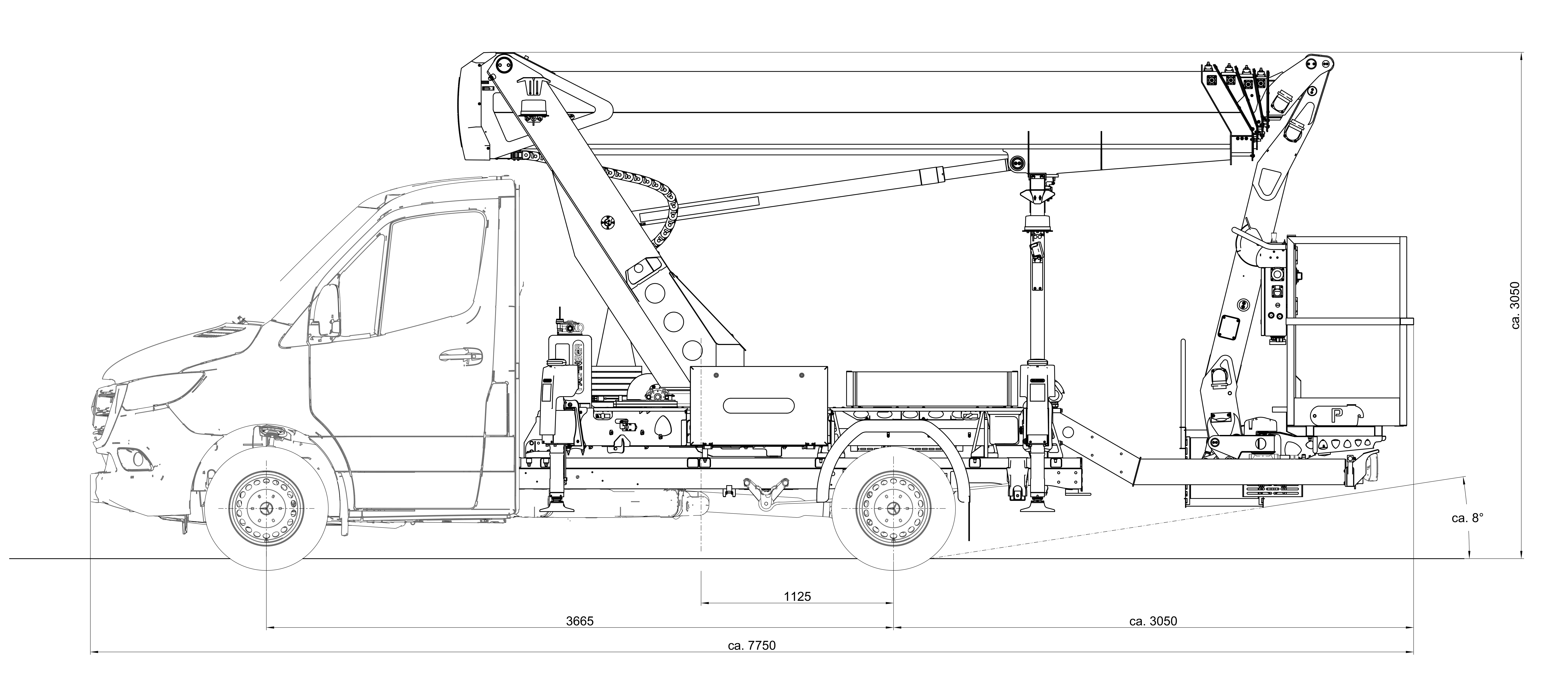

Height in transport position : 3.05
m
Width in transport position : 2.21
m
Length in transport position : 7750
mm
Overall length : 7.75
m
Available chassis:
- Mercedes Benz 3XX CDI 4x2 BB
- Mercedes Benz 3XX CDI 4x2 BB
- Iveco Daily 35S14 4x2 BB
- Iveco eDaily 50CXX 4x2 BB
- MAN TGL 8.XX 4x2 BB (7,49t; 8,8t)
- Mercedes Benz Atego 8XX 4x2 BB (7,49t; 8,6t)
- Mercedes Benz Atego 10XX A 4x4 BB S-FH (7,49t; 10,5t)
*Above mentioned values are standard values and vary depending on options and chassis.
Units shown are partially optional equipped and do not always correspond to the standard version.
Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.
A possible 2% tolerance is contingent on structural components depending on chassis and equipment.>
