OUTSTANDING PERFORMANCE DATA

The P 640 model offers a working height of 64 metres and a reach of 41 metres. The fully automatic telescope lubrication system supplies the lower boom telescopes with grease during operation. This extends the service life of the platform and keeps service costs to a minimum.

  • Greater working range thanks to 240° X-jib
  • 2 x 200° rotation for perfect positioning of the workman basket
  • Telescopic upper boom up to 19 m
  • Can be mounted on four-axle chassis with 32 t
  • Telescopic basket with 600 kg basket load and integrated preparation for Powerlift system
  • Hanging basket enables users to get close to objects

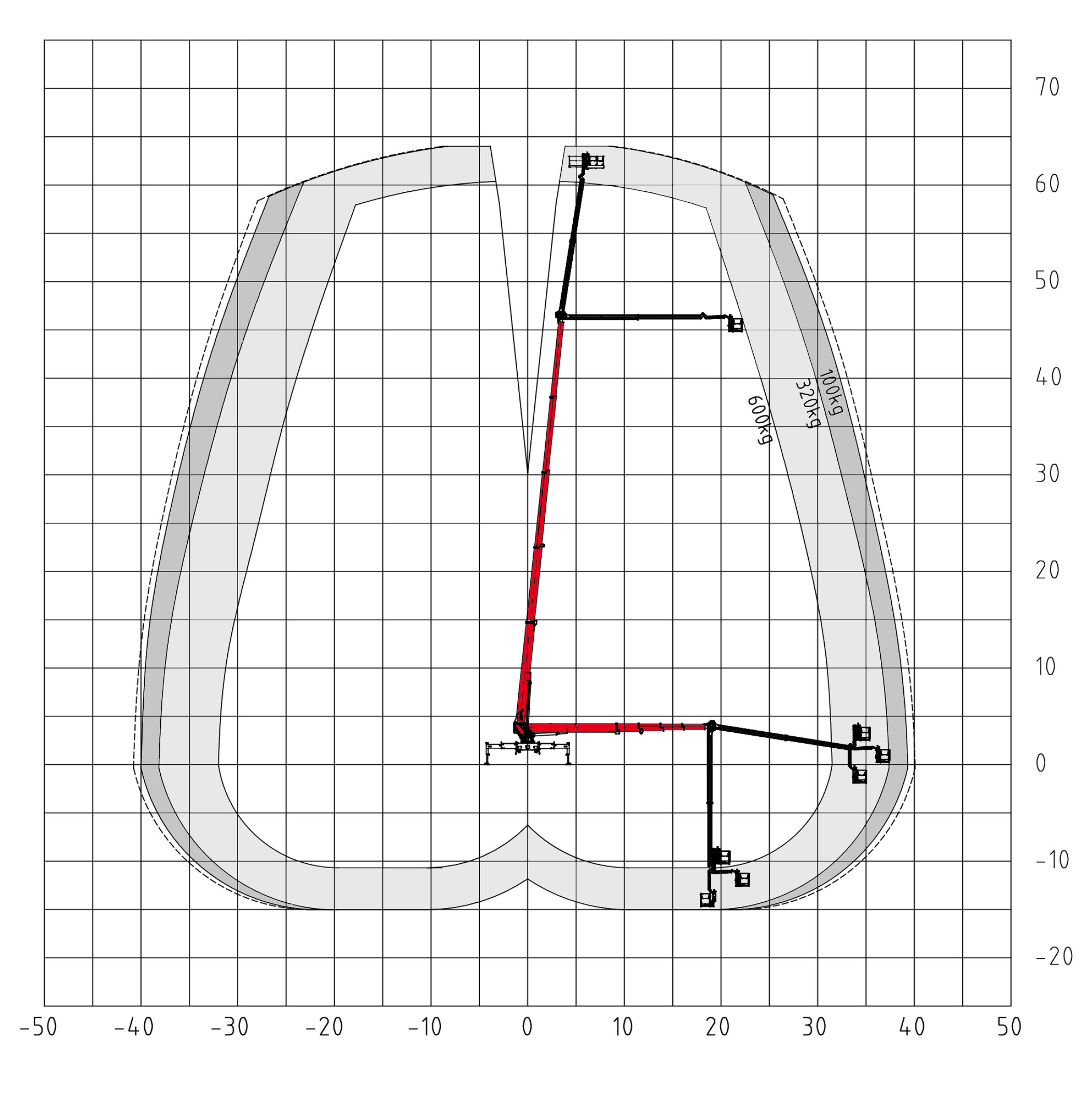

Max. height of work : 64  m
Max. basket floor height : 62  m
Max. horizontal outreach /with basket load : 40,5 m

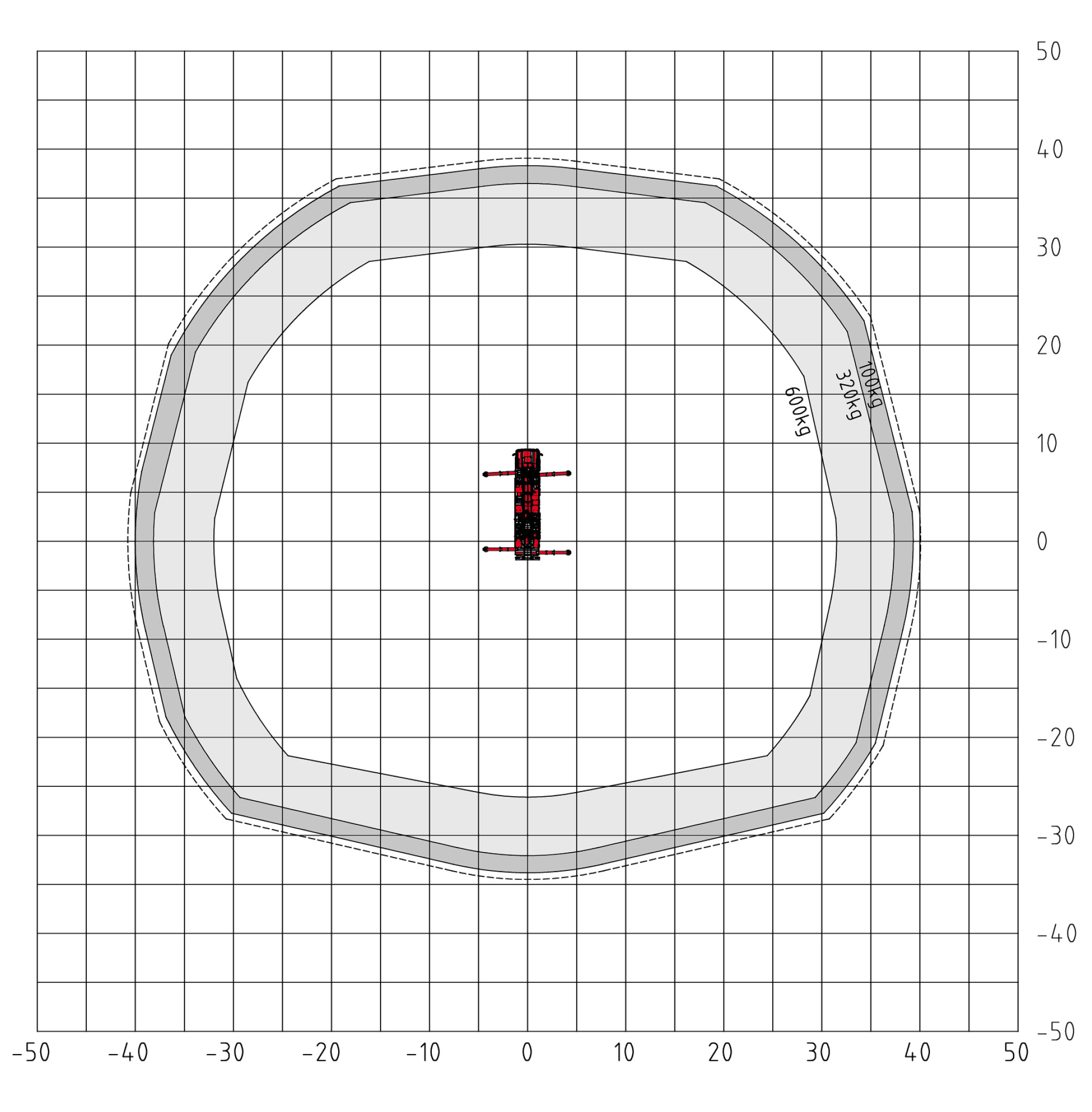

Slewing range of basket : 2 x 200°
max. basket load : 600  kg
Workman basket - breadth / length / height : 3.81 x 1.04 x 1.1 m
Rotation angle of turntable : 540°

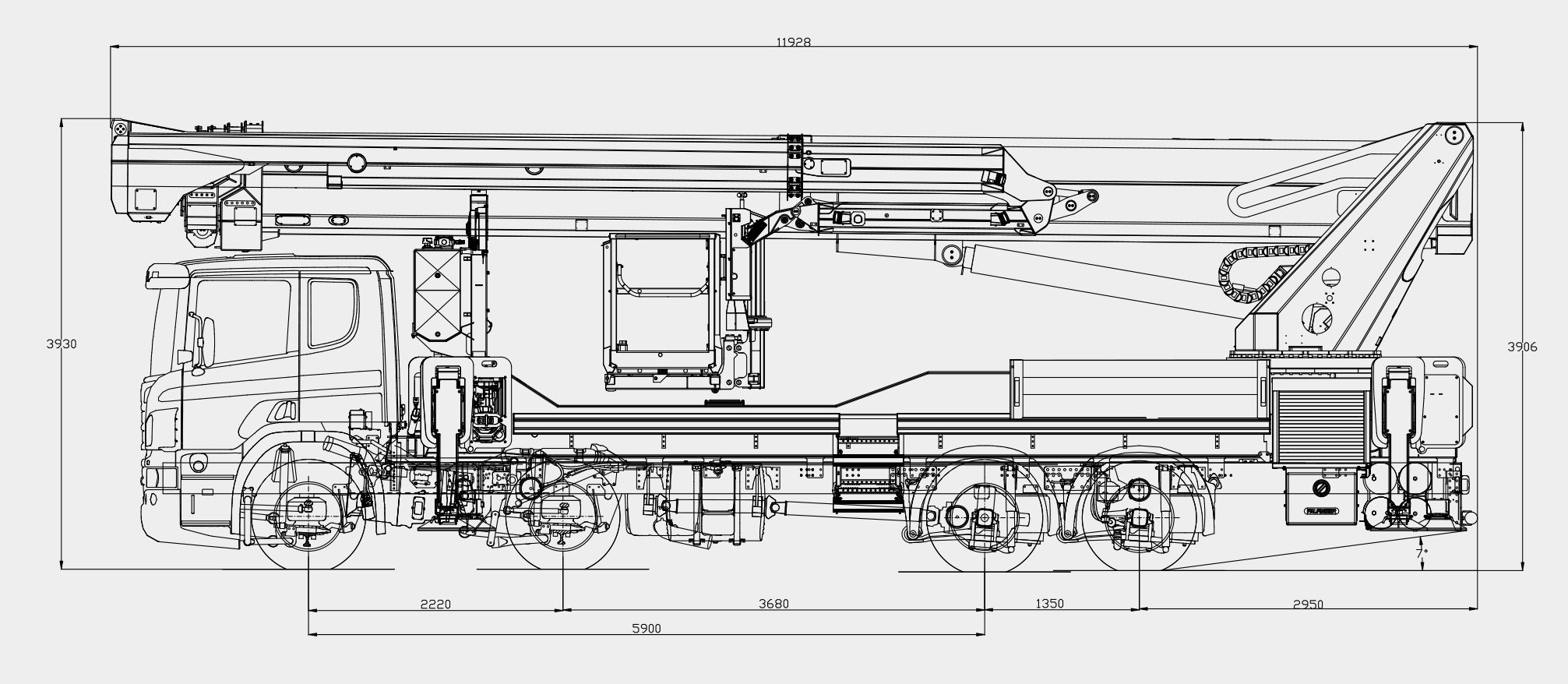

Height in transport position : 3.93  m
Width in transport position : 2.51  m
Overall length : 11.93  m
Overall weight : 29000  kg

Available standard chassis:

MAN TGS 35.440 - 3080 8x4 BL L

Further chassis on request



*Above mentioned values are standard values and vary depending on options and chassis.

Units shown are partially optional equipped and do not always correspond to the standard version.

Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.

A possible 2% tolerance is contingent on structural components depending on chassis and equipment.>
