FLEXIBILITY AT FULL HEIGHT


The P 570 model offers a working height of 57 metres and a reach of 41 metres. An additional X-jib and a basket rotation of 2 x 200 degrees provides exceptional mobility, taking flexibility to even loftier heights.

  • Telescopic upper boom up to 19 m
  • Automatic telescope lubrication system supplies the lower boom telescopes with grease during platform operation
  • 900 mm stabilising stroke to compensate for highly uneven terrain
  • Telescopic basket with 600 kg basket load and integrated preparation for Powerlift system
  • Hanging basket enables users to get close to objects

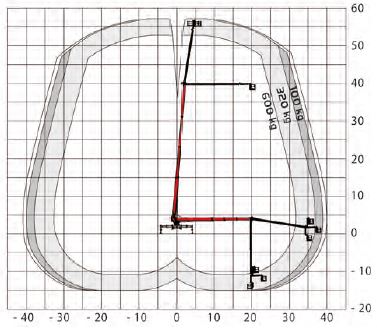

Max. height of work : 57  m
Max. basket floor height : 55  m

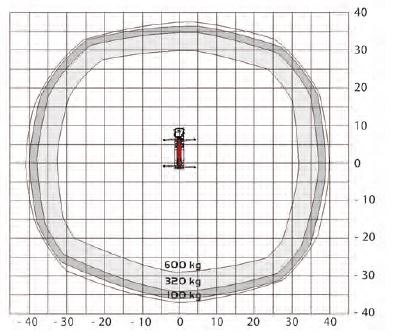

Max. horizontal outreach /with basket load : 41 m
Slewing range of basket : 2 x 200°
max. basket load : 600  kg
Workman basket - breadth / length / height : 3.81 x 1.04 x 1.1 m
Rotation angle of turntable : 540°

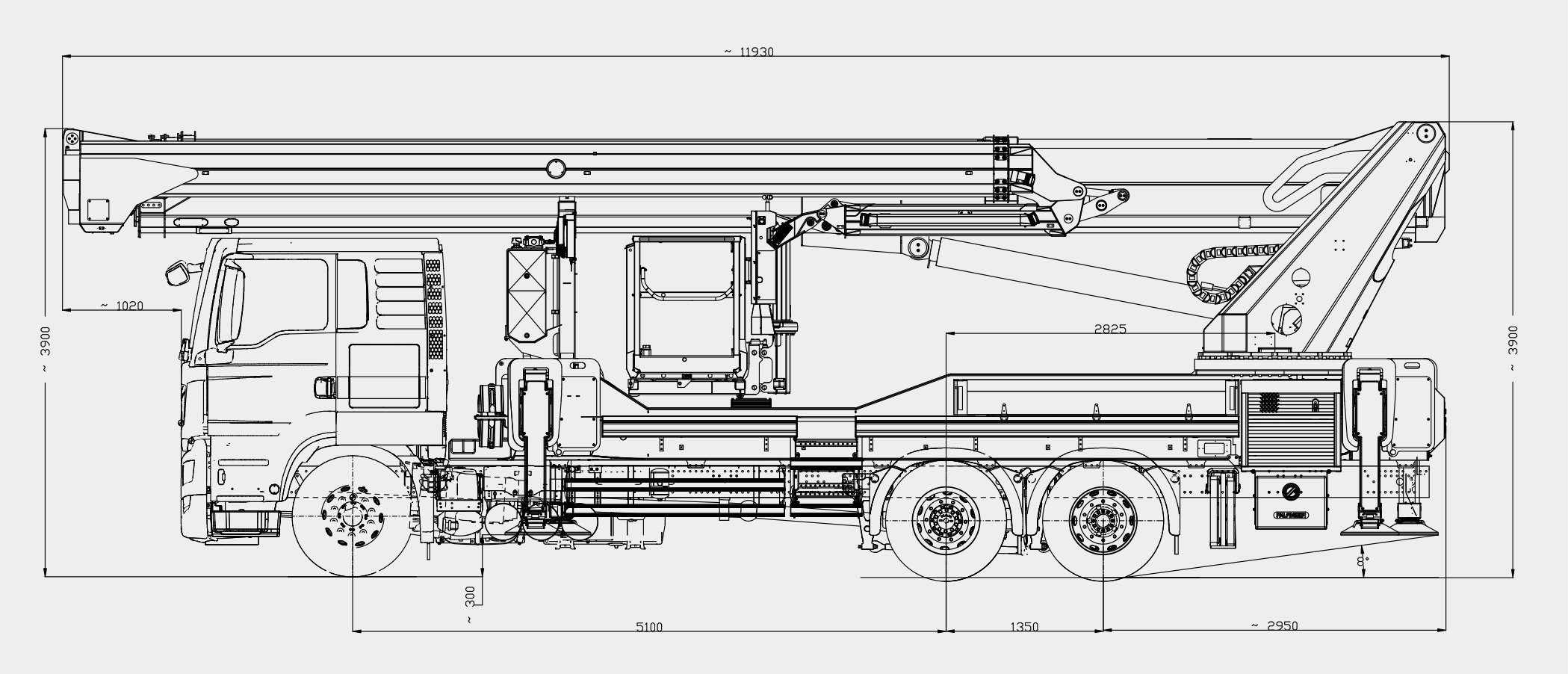

Height in transport position : 3.90  m
Width in transport position : 2.51  m
Overall length : 11.93  m


*Above mentioned values are standard values and vary depending on options and chassis.

Units shown are partially optional equipped and do not always correspond to the standard version.

Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.

A possible 2% tolerance is contingent on structural components depending on chassis and equipment.>
