THE TOP MODEL IN ITS WEIGHT CLASS

The P 370 KS is agile, versatile, compact and extremely powerful. This platform combines the best of two worlds. It integrates the impressive flexibility of the WT series and the compact design and well-known counter slewing system of the KS series.

  • Patented counter slewing system enables slewing within the mirror width of the chassis
  • Robust, 2-m-wide aluminium workman basket with 500 kg basket load and integrated Powerlift mount
  • Driver information system via display in the cab and Premium basket control panel
  • 1000 mm stabilising stroke to compensate for highly uneven terrain
  • Automated positioning system

Max. height of work : 37  m
Max. basket floor height : 35  m

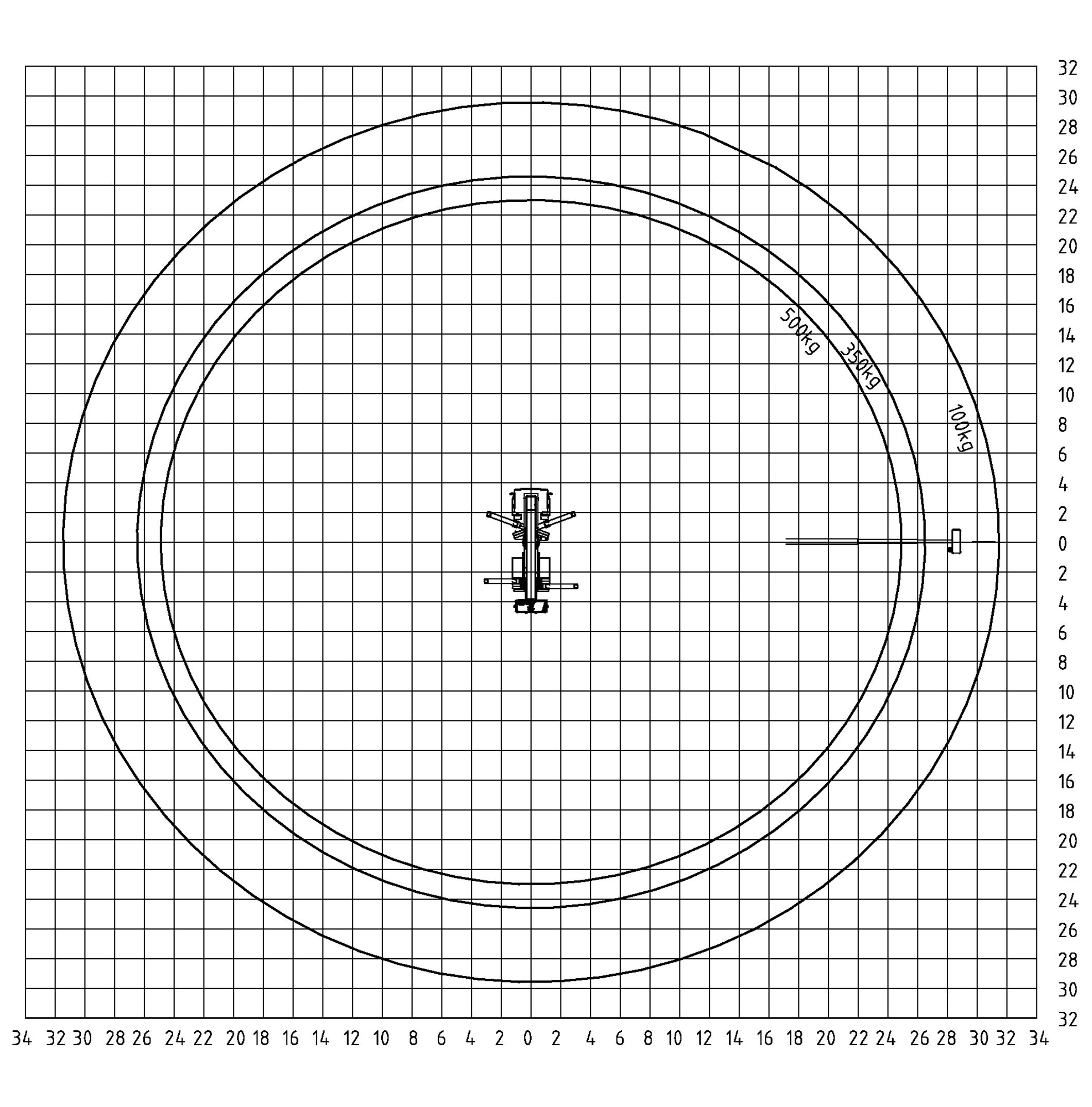

Max. horizontal outreach /with basket load : 31.5 m
Slewing range of basket : + / - 85°
Max. stabilizer spread : 5.62  m
Operating angle of working arm : 185°
max. basket load : 500  kg
Workman basket - breadth / length / height : 2.00 x 0.80 x 1.10 m
Rotation angle of turntable : 500°
Maximum stabilisation gradient : 2°

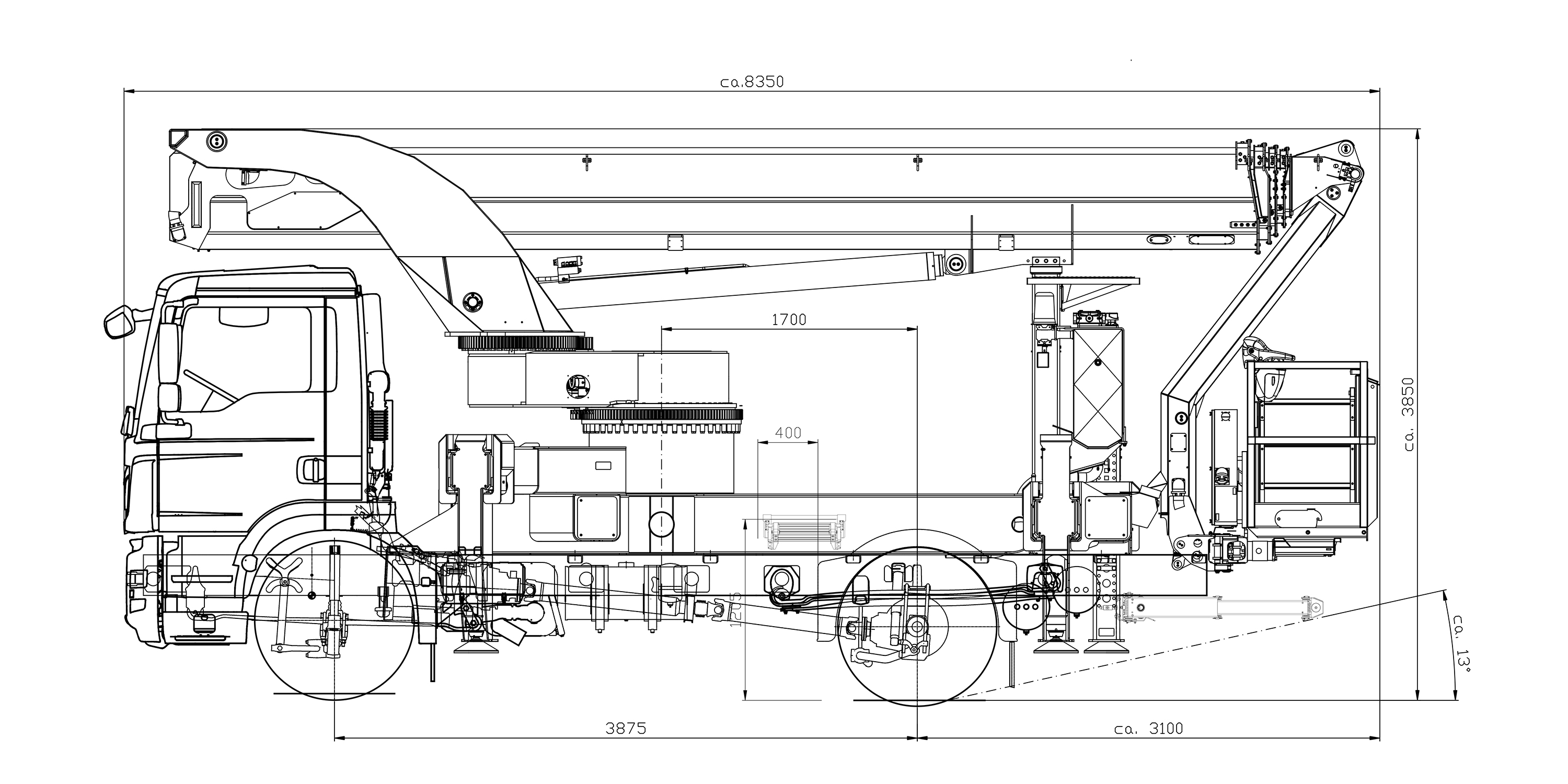

Height in transport position : 3.85  m
Width in transport position : 2.49  m
Overall length : 8.35  m
Overall weight : 18000  kg

Available standard chassis:

MAN TGM 18.290 4x2 BB

MAN TGM 18.290 4x4 BB

Further chassis on request



*Above mentioned values are standard values and vary depending on options and chassis.

Units shown are partially optional equipped and do not always correspond to the standard version.

Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.

A possible 2% tolerance is contingent on structural components depending on chassis and equipment.>
