SILENT, EFFICIENT, ELECTRICAL

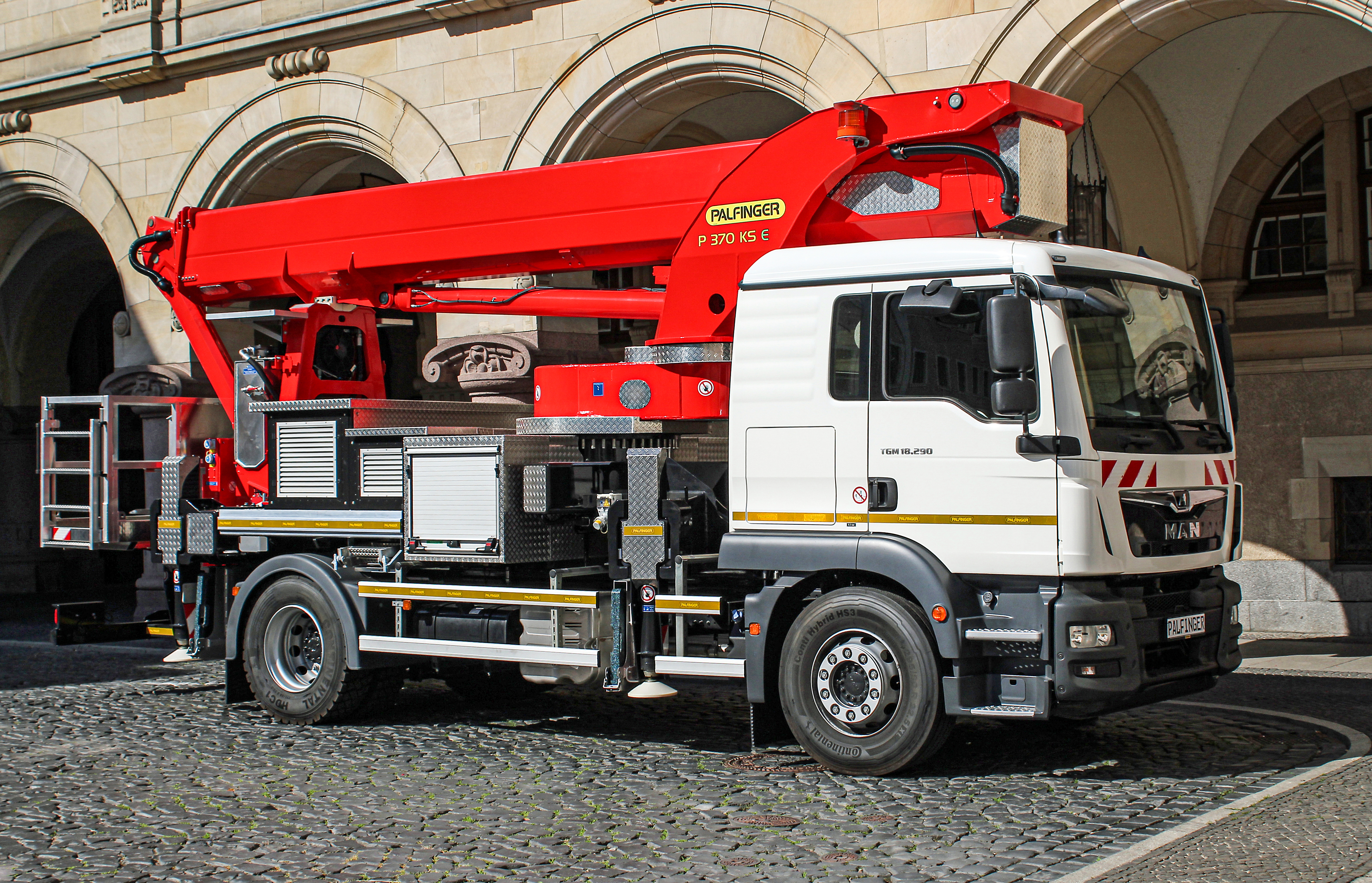

The P 370 KS E combines a diesel drive system with an electric drive system, which means that it offers the performance and service life of a diesel engine at low operating costs. Compared with an all-diesel machine, it offers considerable fuel savings, is much quieter (less than 62 decibels) and has lower CO2 emissions. The P 370 KS E is quiet, efficient and emissions-free, making it ideal for night-time and indoor work as well as for use on environmentally friendly construction sites in urban areas.

  • At a driving speed of 100%, a minimum of 24 driving cycles* – each one 7 minutes long – can be driven
  • The electrical platform operation is sufficient for one complete working day (depending on usage behaviour)
  • Shortening of the charging time thanks to an intelligent quick-charging function
  • With intermediate charging during work breaks, electrical operation can be extended.
  • When the battery charge is low or in emergency situations, platform operation can be continued via the truck engine

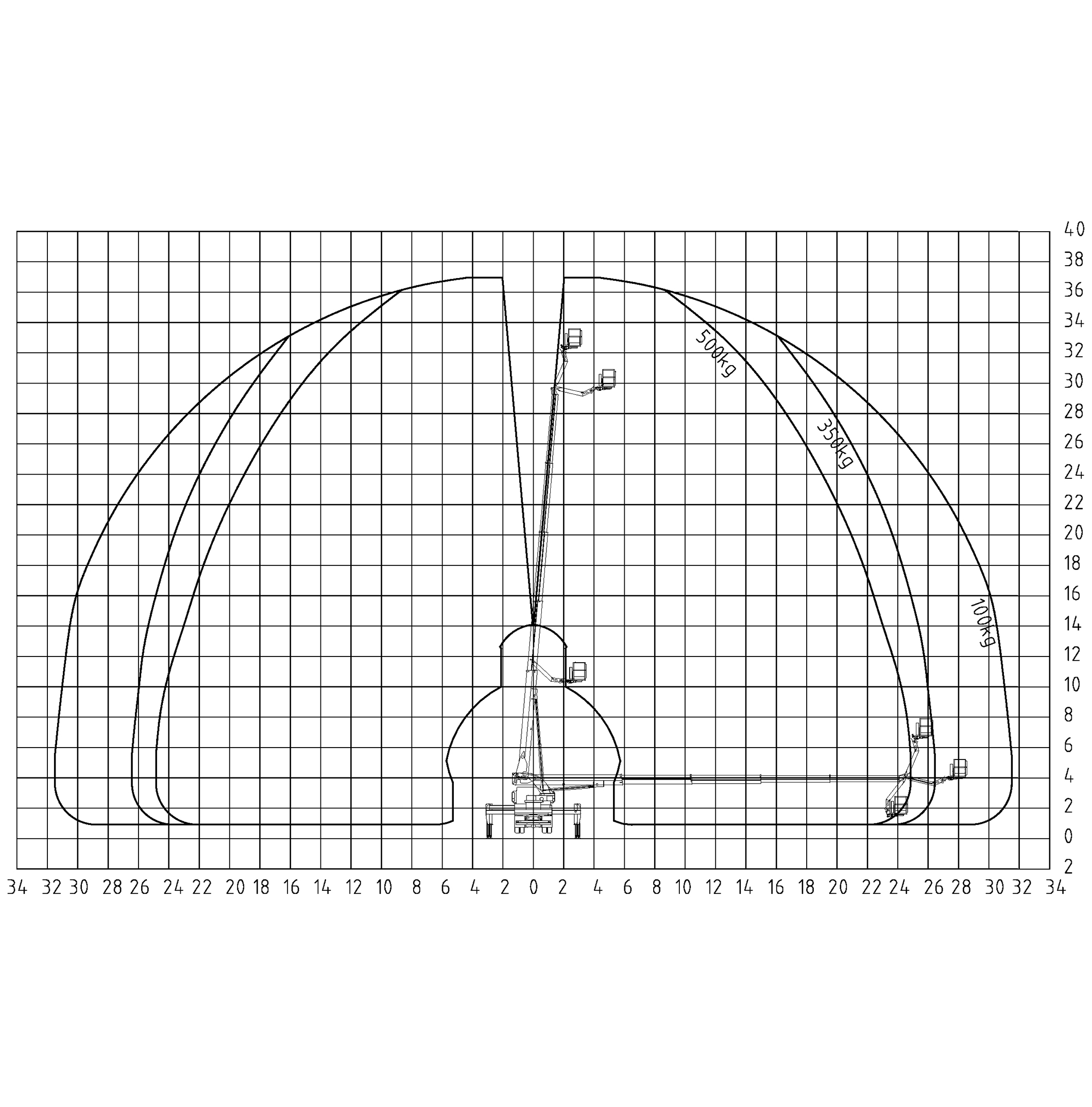

Max. height of work : 37  m
Max. basket floor height : 35  m
Max. horizontal outreach /with basket load : 31,5 m

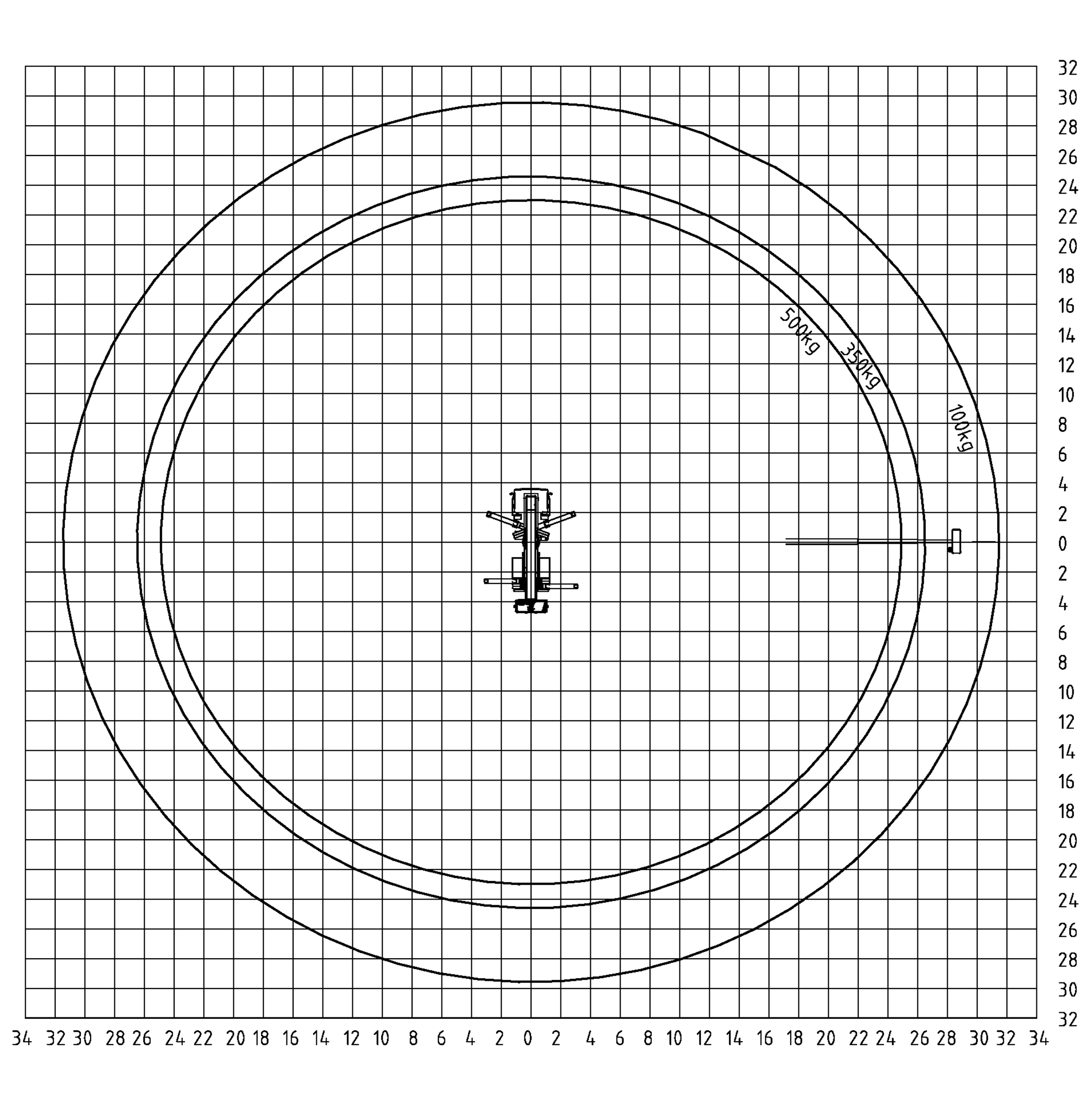

Slewing range of basket : + / - 85°
Max. stabilizer spread : 5.62  m
max. basket load : 500  kg
Workman basket - breadth / length / height : 2,00 x 0,80 x 1,10 m
Rotation angle of turntable : 500°

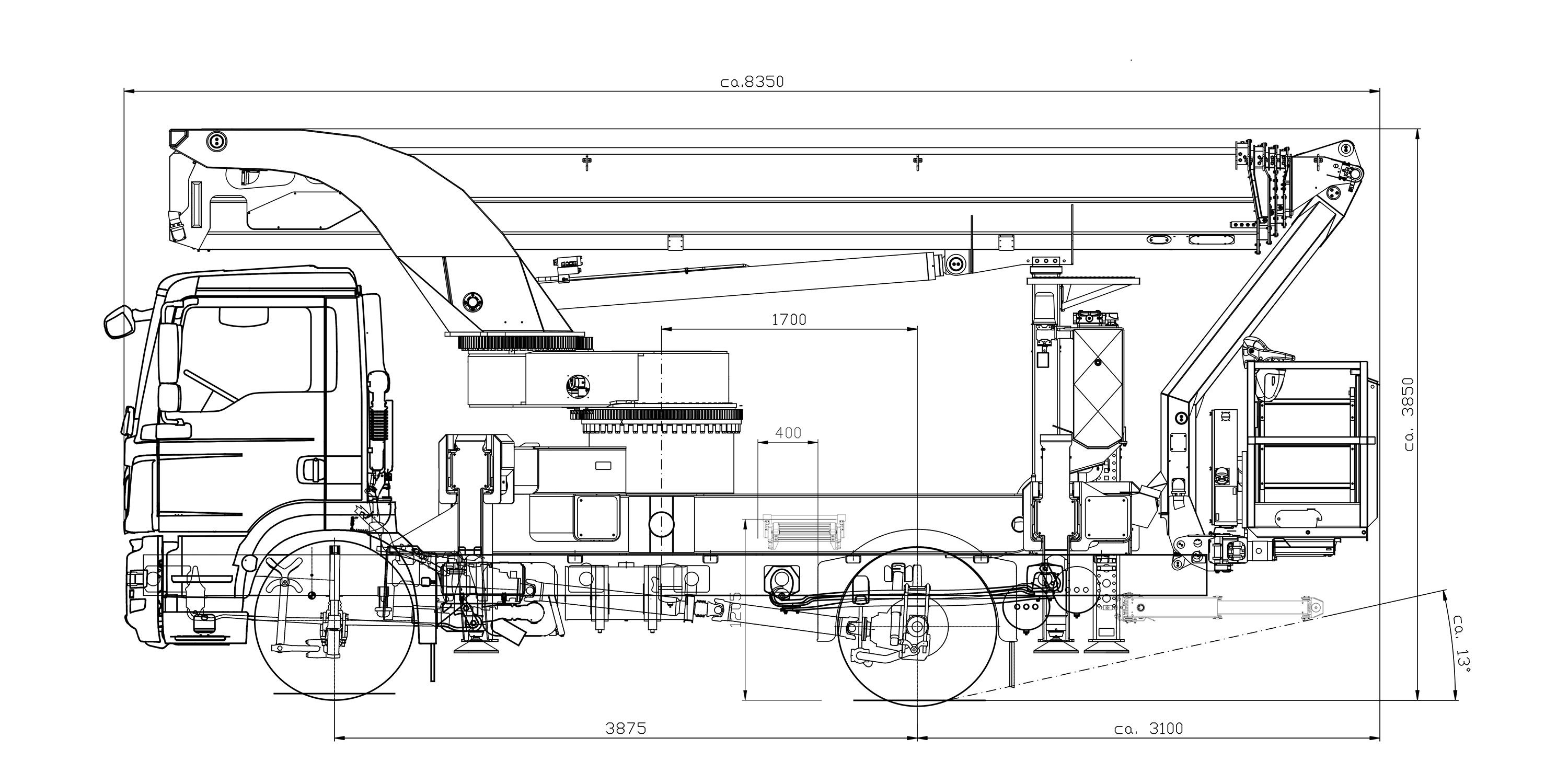

Height in transport position : 3.85  m
Width in transport position : 2.49  m
Overall length : 8.35  m
Overall weight : 18000  kg


*Above mentioned values are standard values and vary depending on options and chassis.

Units shown are partially optional equipped and do not always correspond to the standard version.

Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.

A possible 2% tolerance is contingent on structural components depending on chassis and equipment.>
