URBAN APPLICATIONS

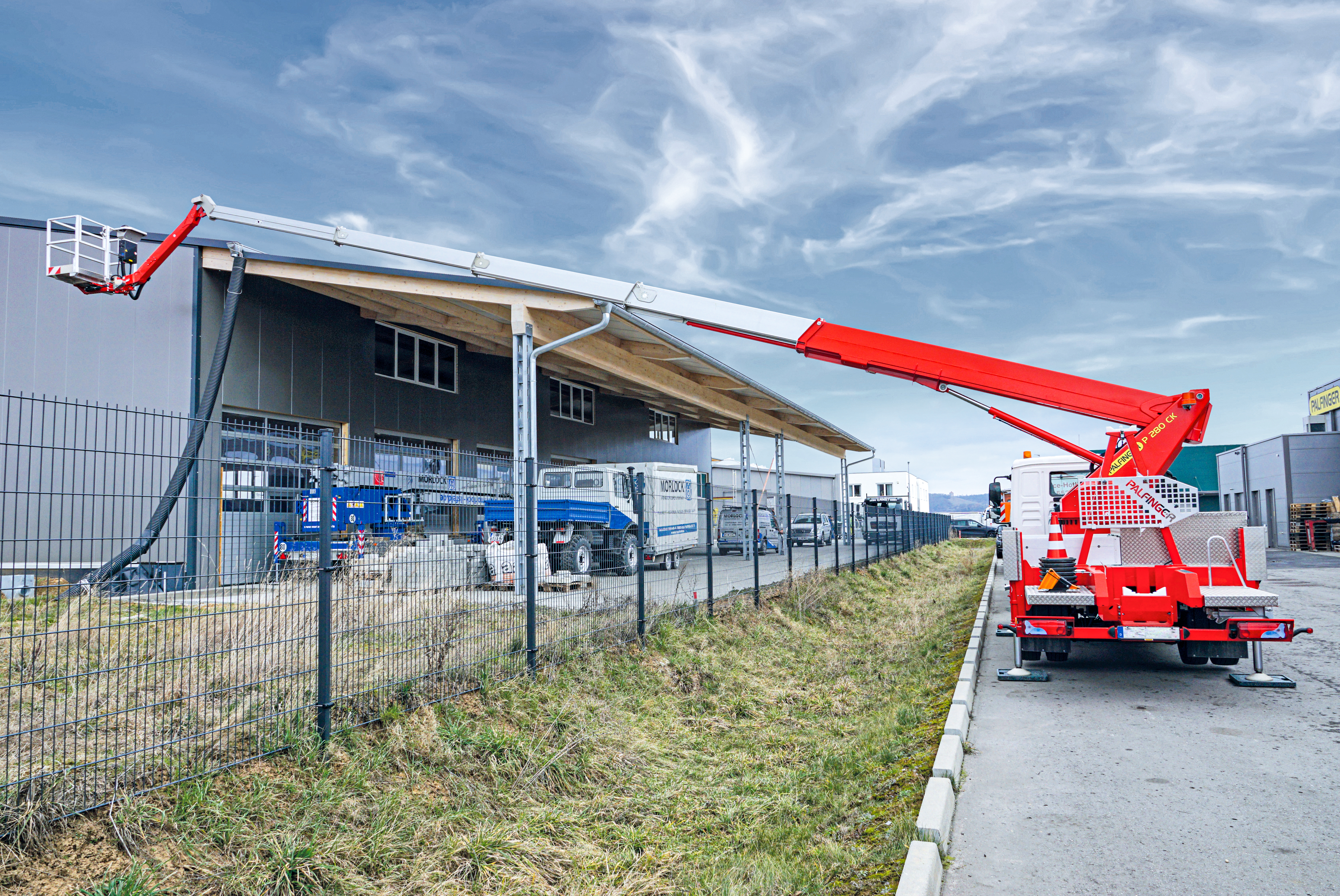

The P 280 CK is designed for vehicles weighing 7.5 t or more. It reaches a working height of 28 m and has a robust aluminium workman basket with a 300kg basket load and integrated anti-squeeze protection in the knee rail.

  • Hydraulic basket turning device with automatic center position
  • Flat substructure under the workman basket allows users to get as close to obstacles as possible
  • Compact vertical stabilizers allow to be set up in confined spaces with maximum outreach.
  • Large loading area with high payload reserve, e.g. for tool loading
  • Low overall height of 3.30m - ideal for use in inner-city areas
  • Large rear slope angle
Max. height of work : 28  m
Max. basket floor height : 26  m

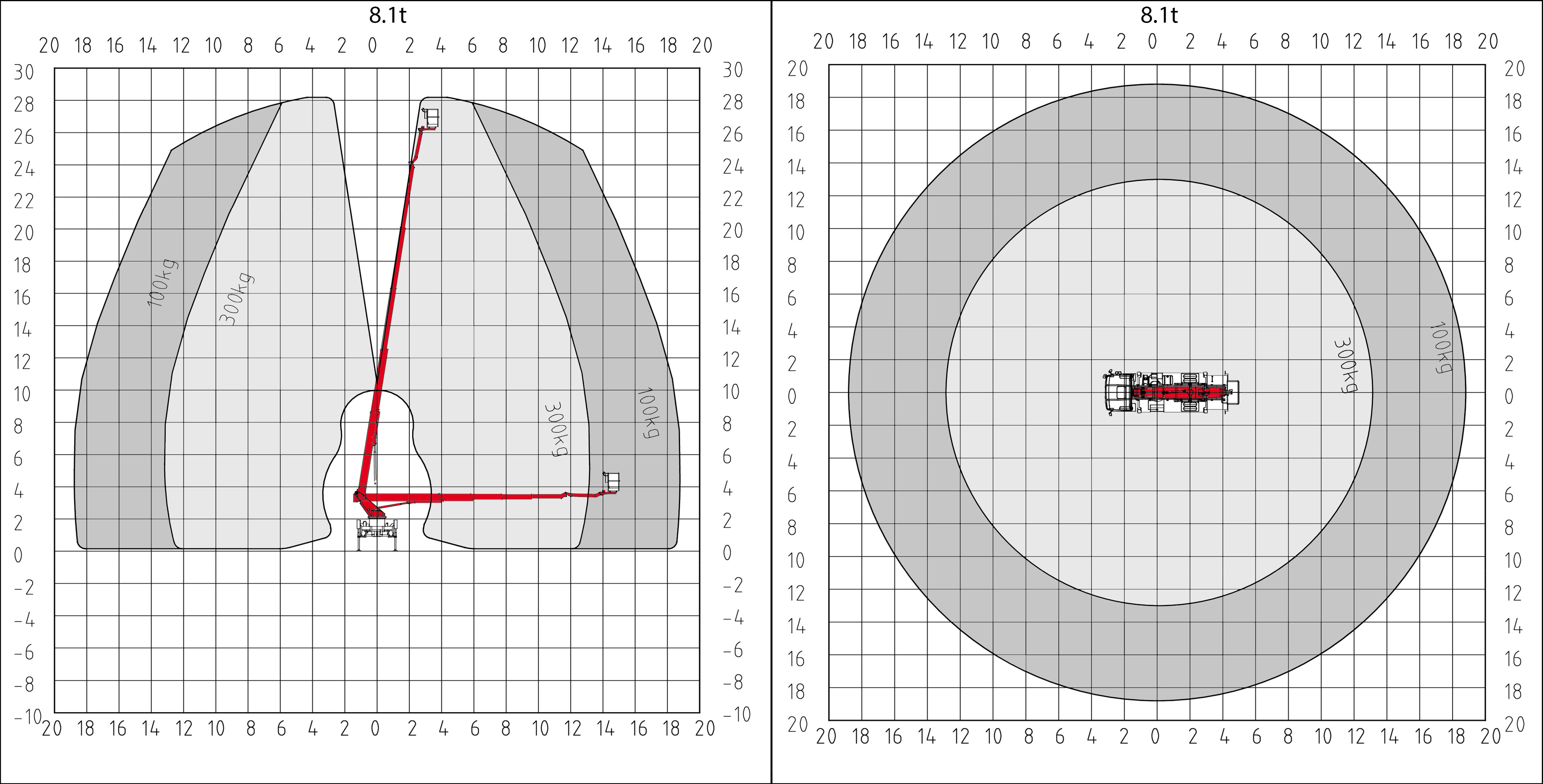

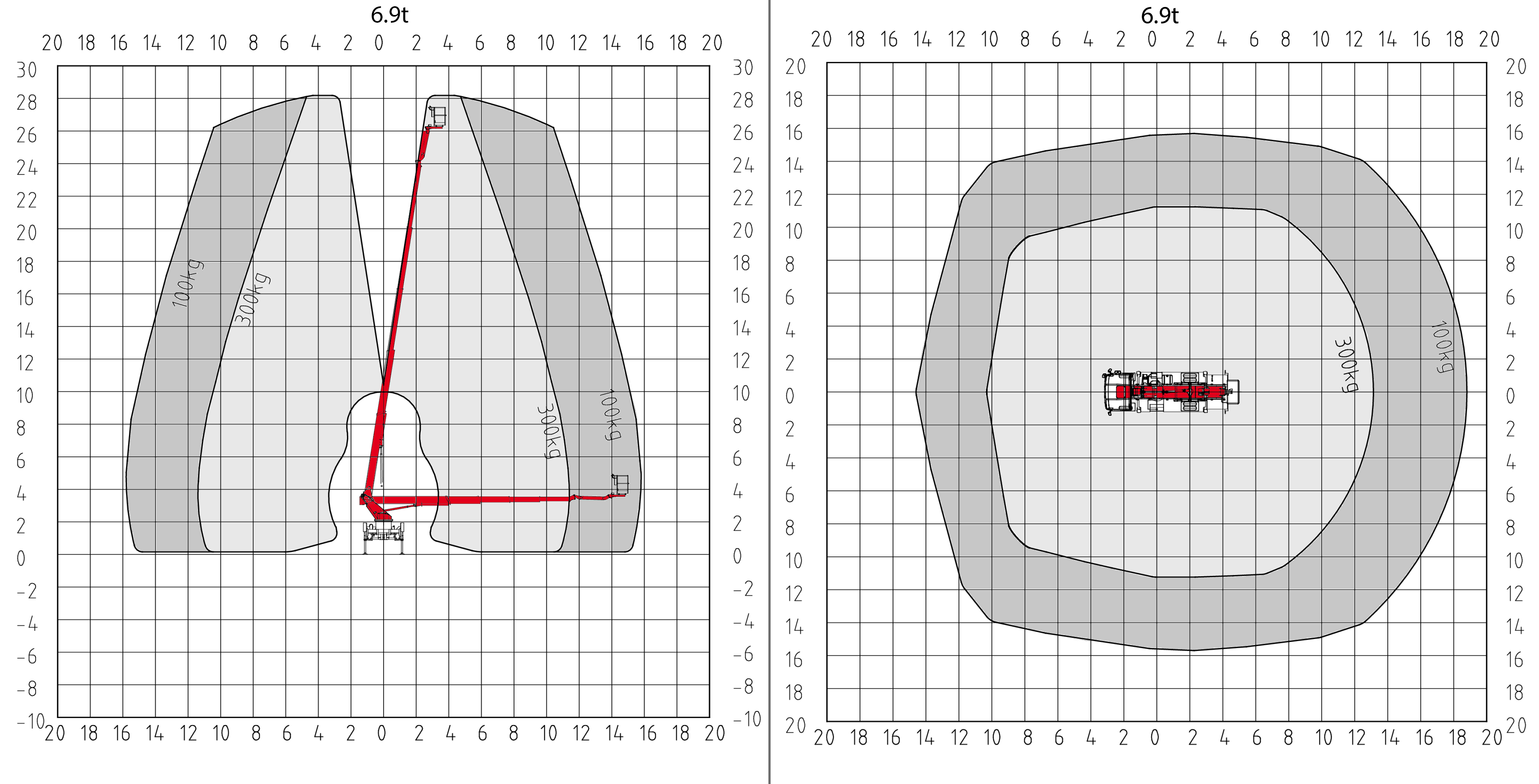

Max. horizontal outreach /with basket load : 18,80 m
Slewing range of basket : +/- 90°
Max. stabilizer spread : 2.51  m
Operating angle of working arm : 185°
max. basket load : 300  kg
Workman basket - breadth / length / height : 1,4 x 0,7 x 1,1 m
Rotation angle of turntable : 500°

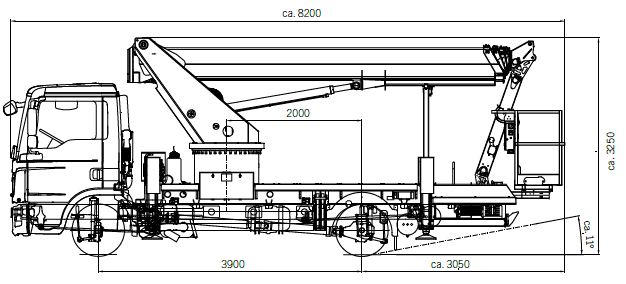

Height in transport position : 3.25  m
Width in transport position : 2.51  m
Overall length : 8.2  m
Overall weight : 7490  kg

Available standard chassis:

MAN TGL 8.XXX - 3900 4x2 BB CC-Cab 8,8t Automatic

MAN TGL 8.XXX - 3900 4x2 BB CC-Cab 8,8t Manual

MB Atego 8xx - 4220 4x2 BB S-Cab Automatic



*Above mentioned values are standard values and vary depending on options and chassis.

Units shown are partially optional equipped and do not always correspond to the standard version.

Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.

A possible 2% tolerance is contingent on structural components depending on chassis and equipment.>

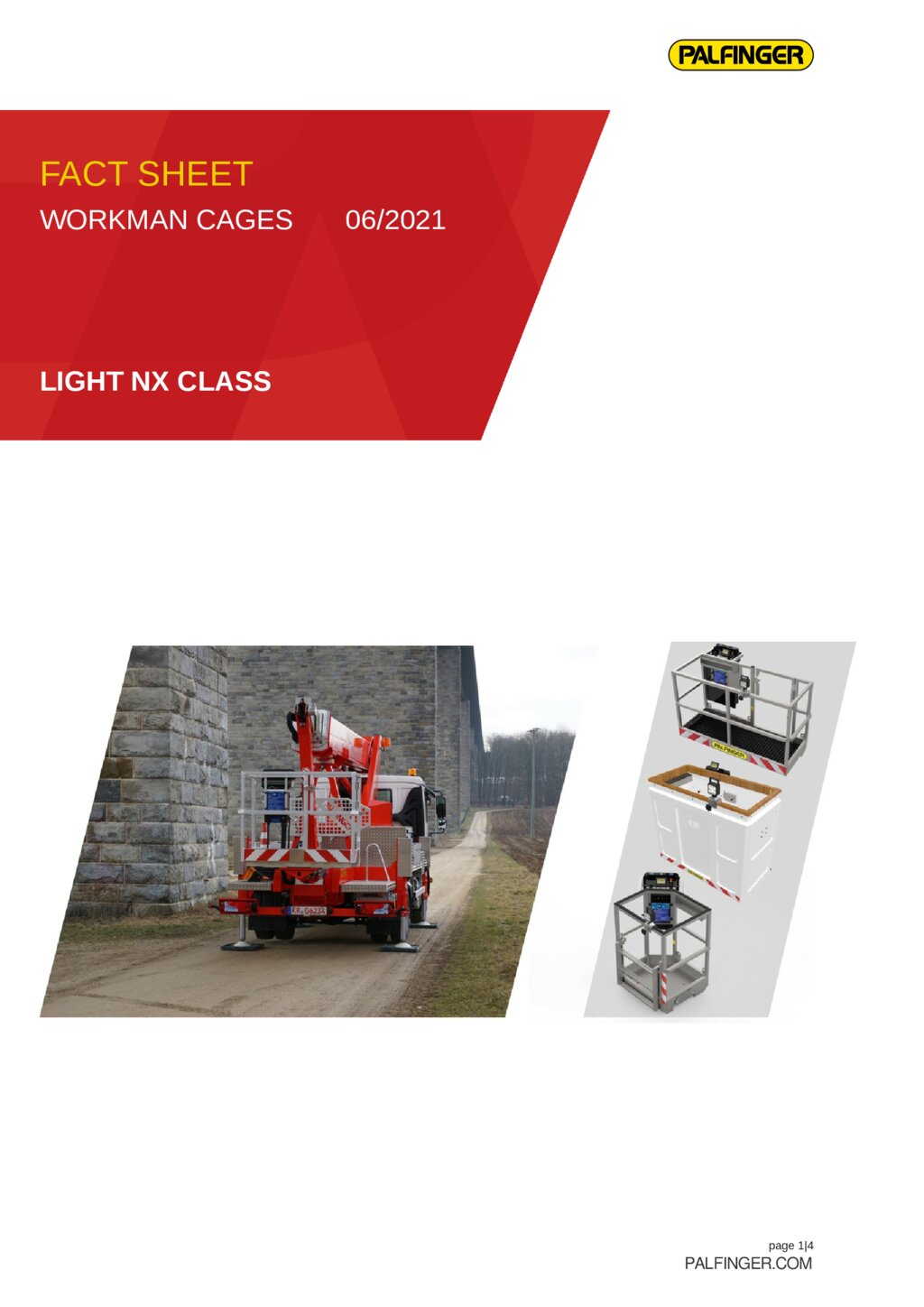

Download brochures & technical specifications
