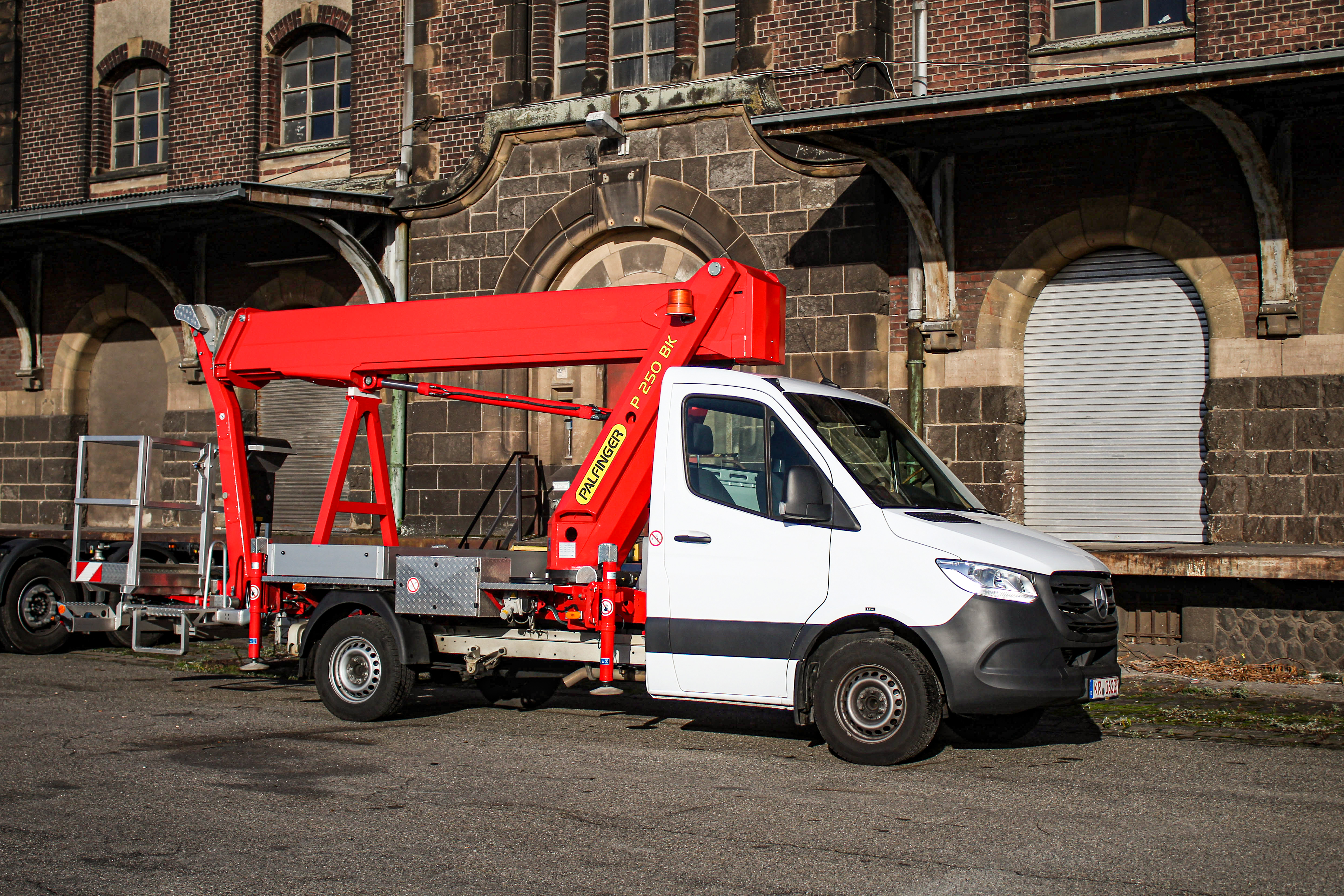

LIGHTWEIGHT AND DIVERSE

The P 250 BK is lightweight, safe and space-saving. Not only do the workman basket and telescopic system with aluminium extrusion profiles keep the weight low, they also make it extremely robust.

  • Lifting and slewing of the main boom without stabilisers available as standard
  • Stabiliser operation from the base for easy and safe support
  • Robust aluminium workman basket with 250kg cage load and integrated anti-squeeze protection function in the knee rail
  • Automatic support stabilising with wheel clearance monitoring
  • Three stabiliser configurations: narrow (in contour), wide (fully extended) and one-sided broad positioning of the stabilisers, as well as automatic release of the associated working range
  • Flat substructure under the workman basket allows users to get as close to obstacles as possible

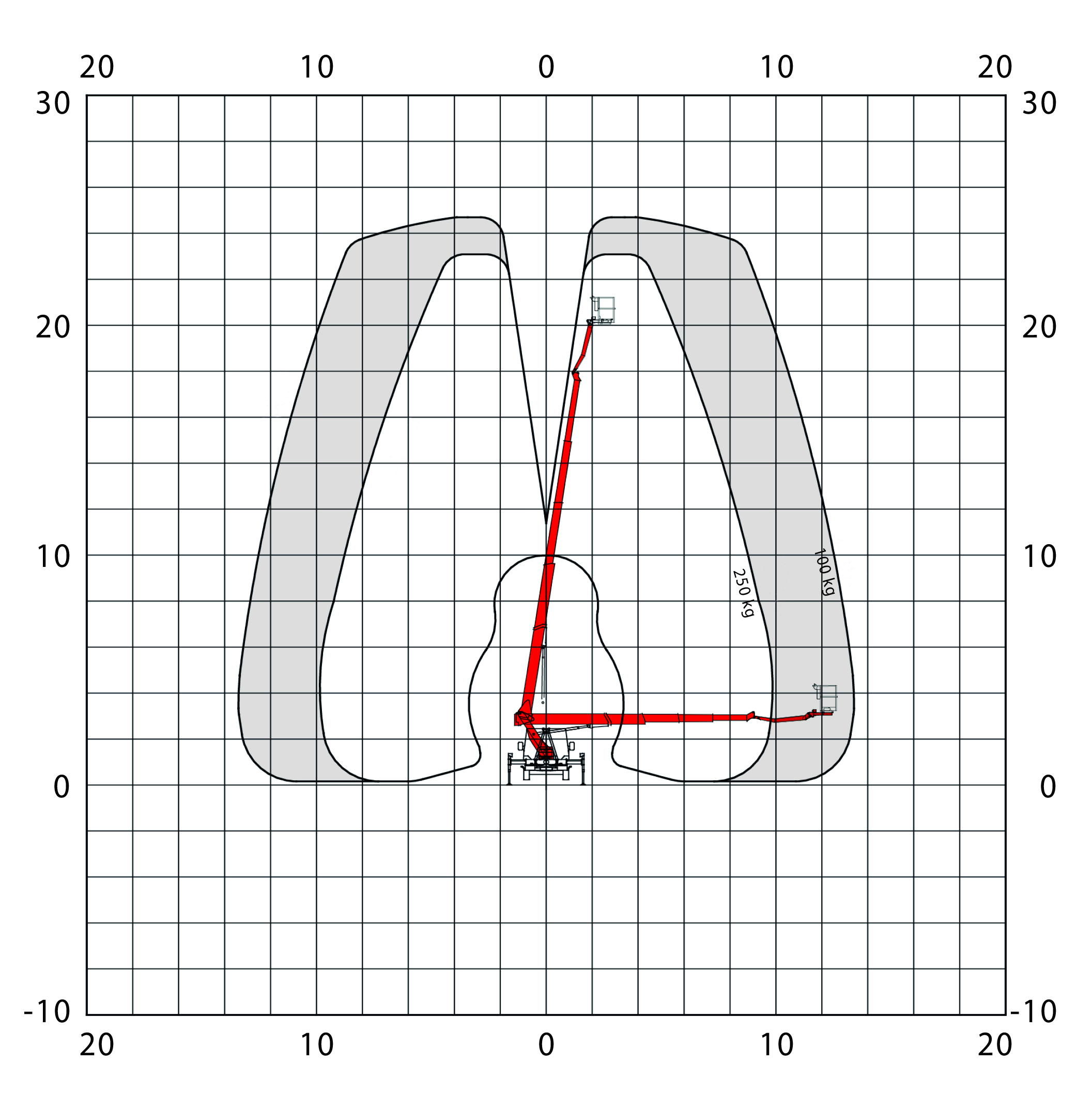

Max. height of work : 24.7  m
Max. basket floor height : 22.7  m

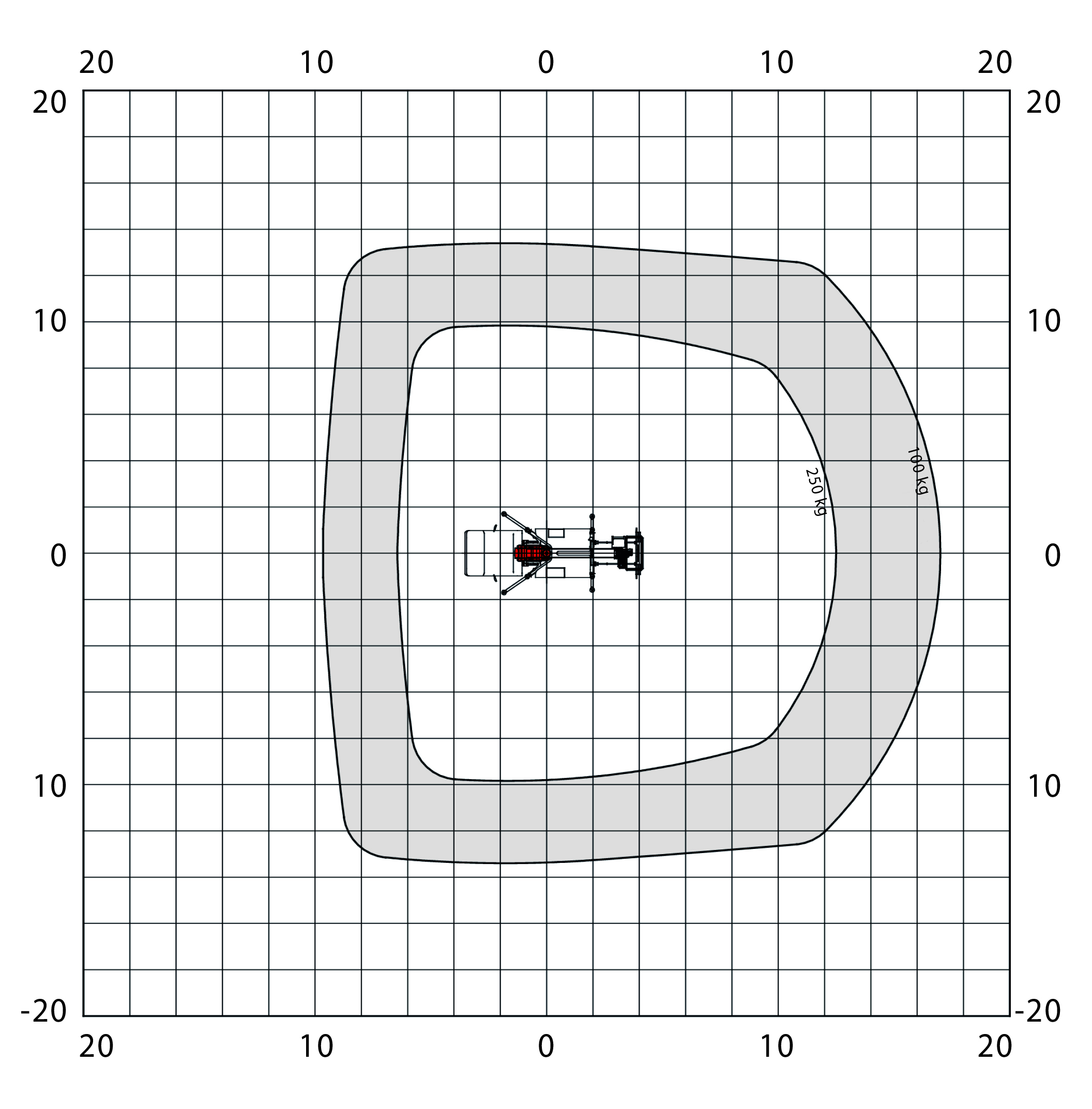

Max. horizontal outreach /with basket load : 16,9 m
Slewing range of basket : +/- 90°
Max. stabilizer spread : 3.6  m
Operating angle of working arm : 185°
max. basket load : 250  kg
Workman basket - breadth / length / height : 1,4 x 0,7 x 1,1 m
Rotation angle of turntable : 500°
Maximum stabilisation gradient : 5°

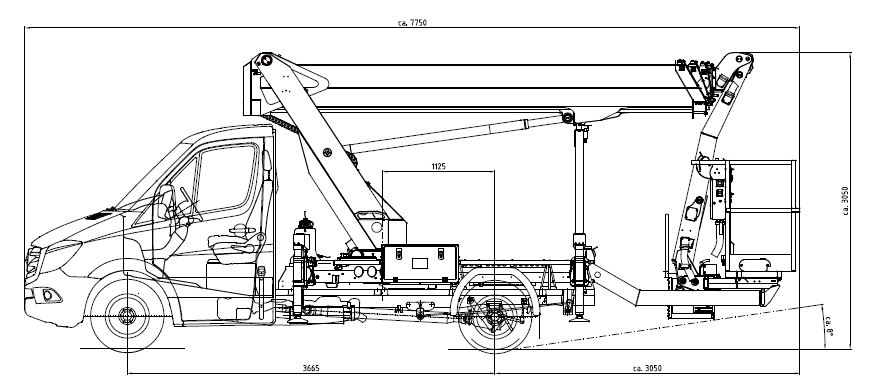

Height in transport position : 2.90  m
Width in transport position : 2.22  m
Overall length : 7.75  m

Available standard chassis:

Mercedes Benz 315 CDI 4x2 BB

Mercedes Benz 317 CDI 4x2 BB

Mercedes Benz Atego 9XX AF (7,49t) 4x4 AF BB S-FH

Mercedes Benz Atego 9XX AF (10,5t) 4x4 AF BB S-FH

Iveco Daily 35S14

Further chassis on request



*Above mentioned values are standard values and vary depending on options and chassis.

Units shown are partially optional equipped and do not always correspond to the standard version.

Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.

A possible 2% tolerance is contingent on structural components depending on chassis and equipment.>

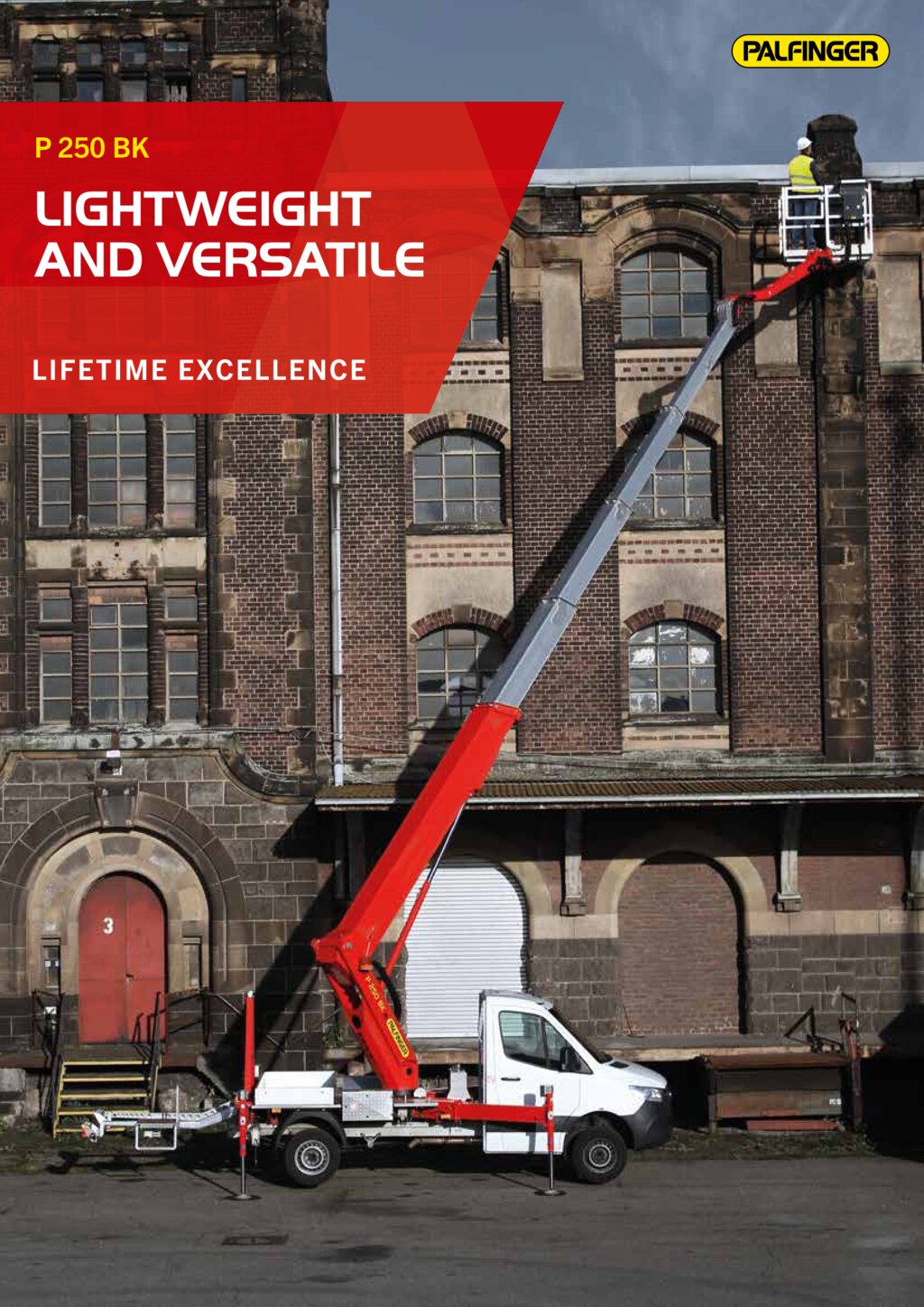

Download brochures & technical specifications
