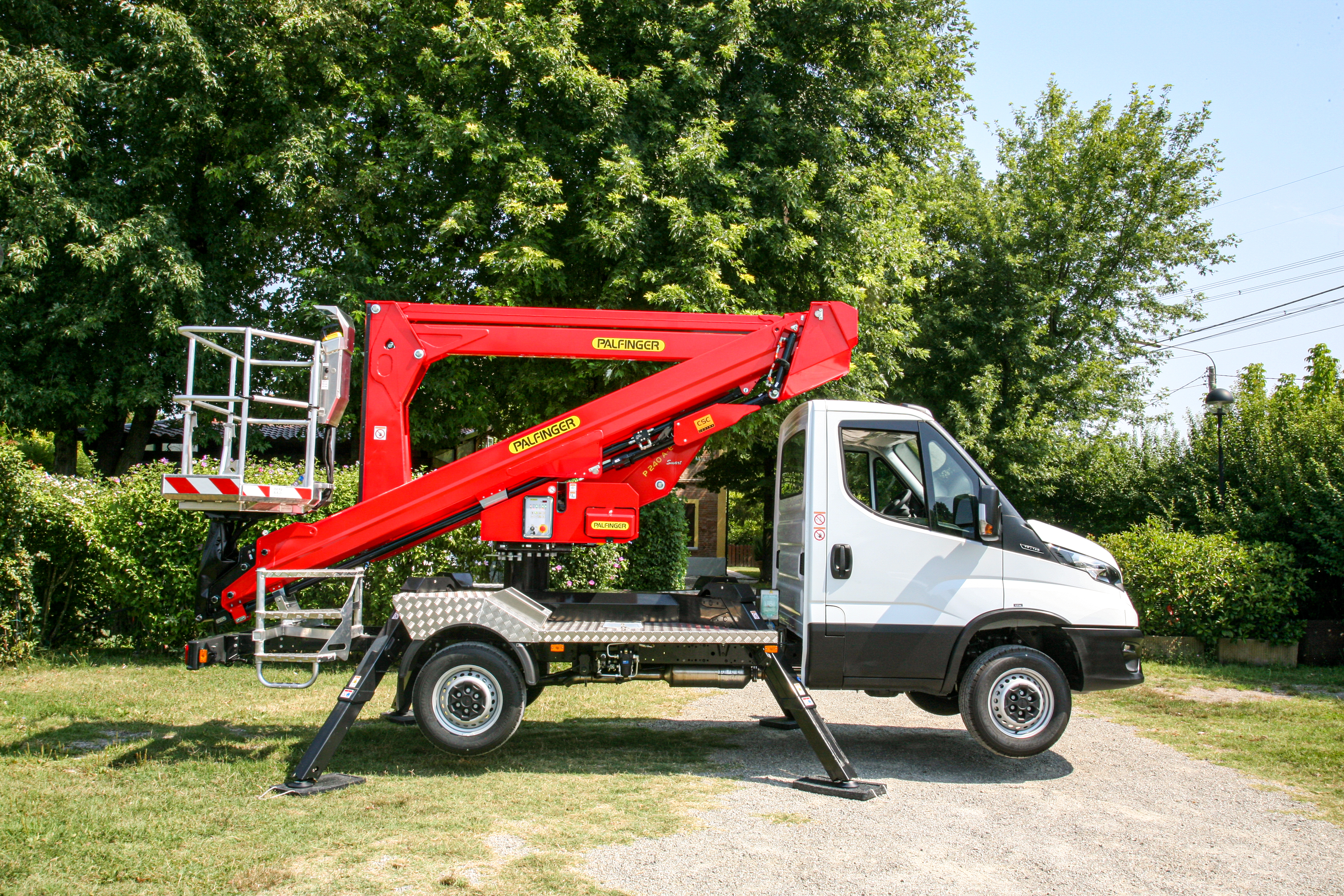

P 240 AE

Compact design and quick and easy to use

  • Lightweight and compact double articulated aerial platform for work in tight spaces, mounted on a 3.5 t truck.
  • The double pantograph unit guarantees great versatility and the ability to move over in elevated positions.
  • Multifunction electric controls for greater precision, speed, and manoeuvring comfort
  • Single stabilisation system for quick positioning
  • All metal structural work features cathodic electrodeposition coating, with KTL system patented by PALFINGER.

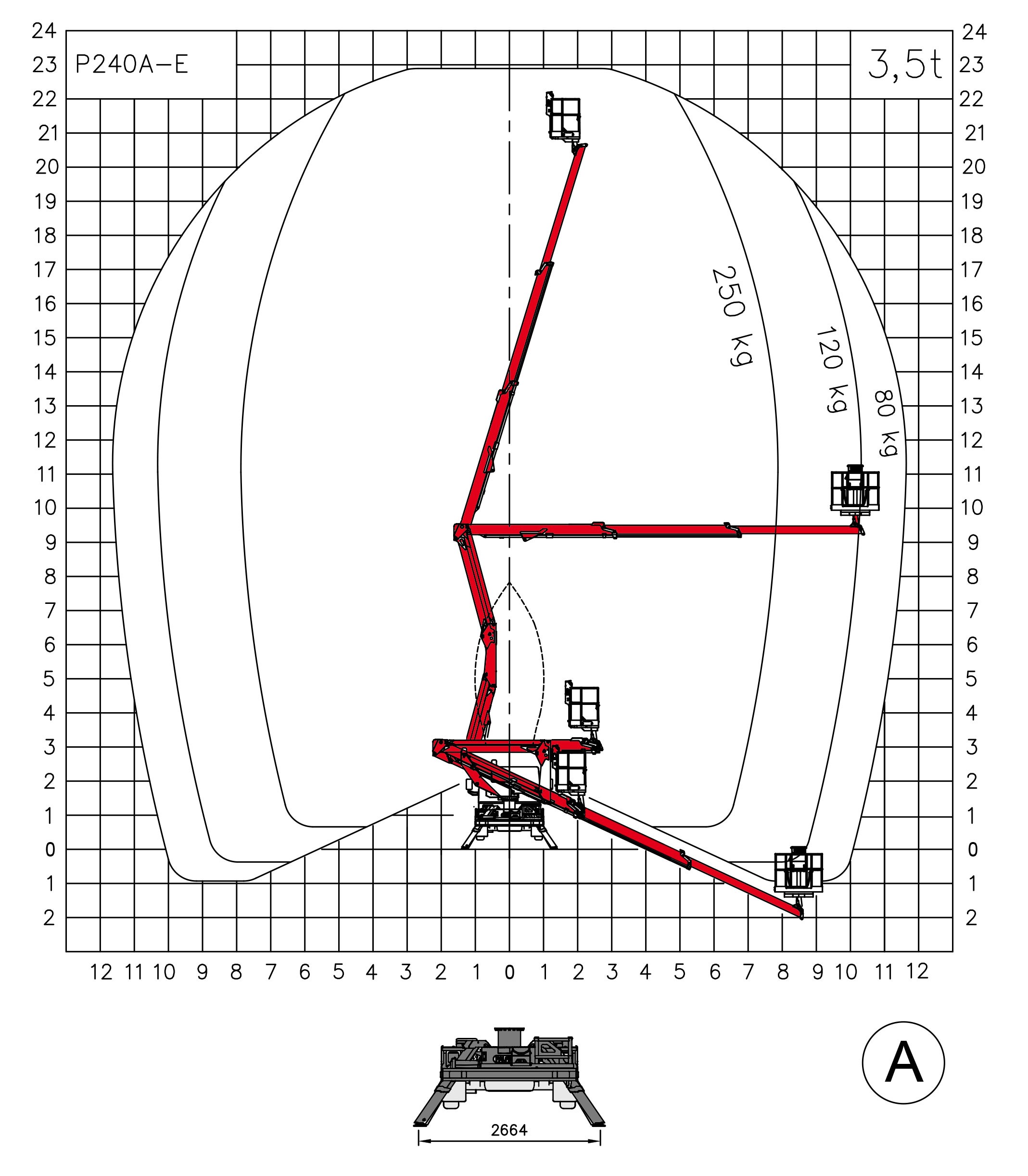

Max. height of work : 22.9  m

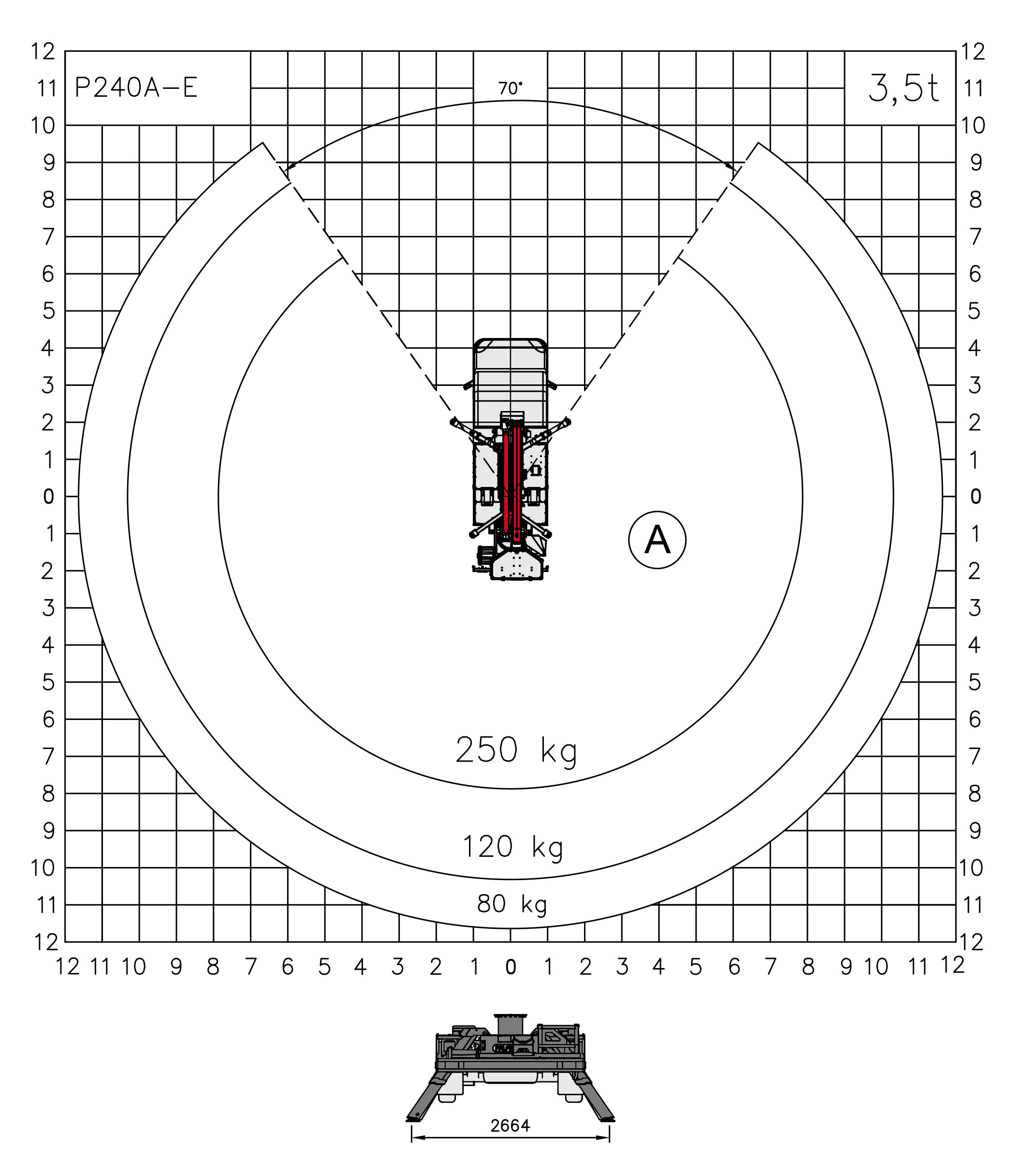

Max. horizontal outreach /with basket load : 11.6 м
max. basket load : 250  kg
Workman basket - breadth / length / height : 1,4 х 0,84 х 1,1
Angle of main boom : -25° - +73°
Rotation angle of turntable : 290°

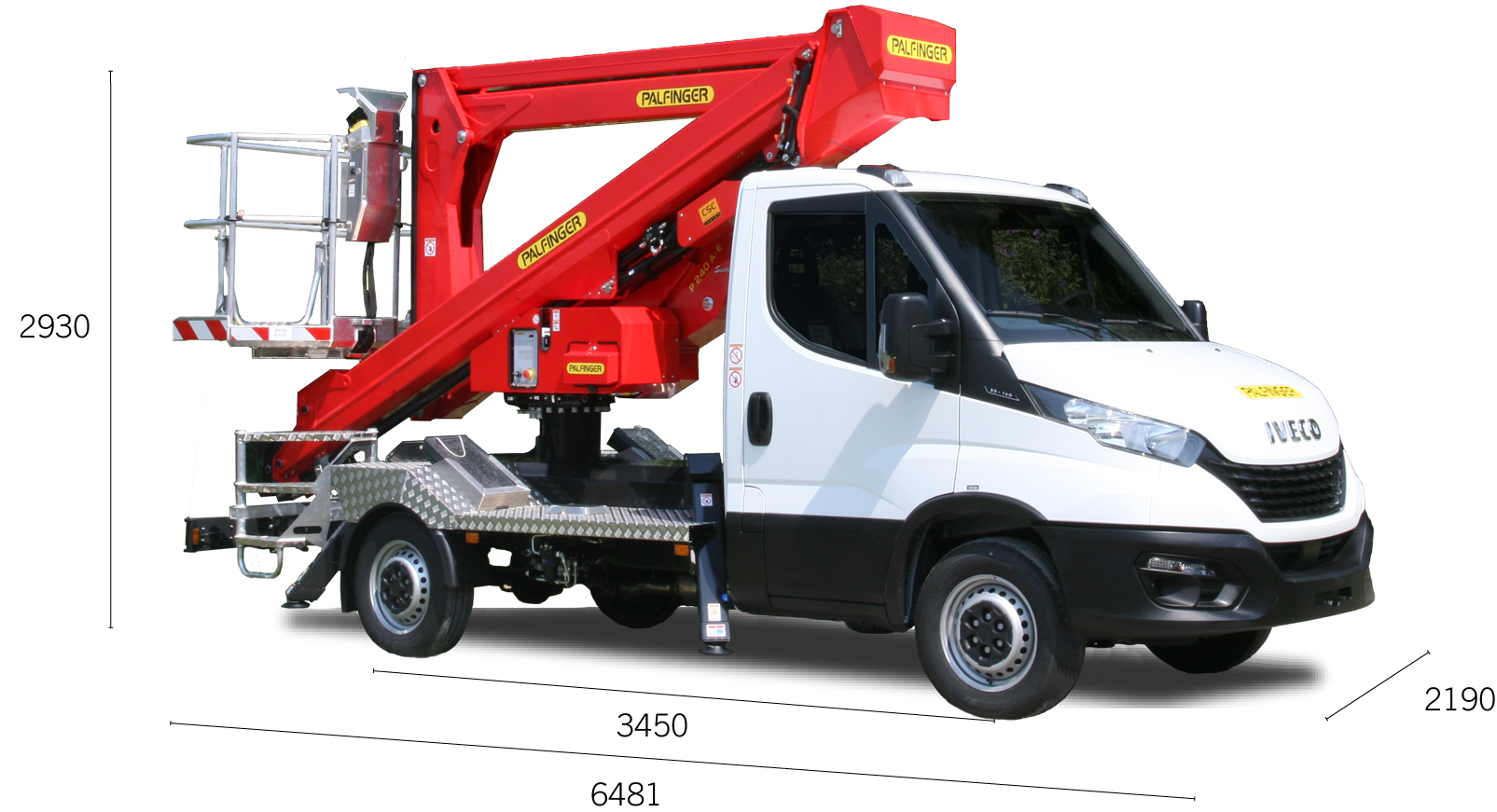

Height in transport position : 2.93  m
Width in transport position : 2.19  m
Overall length : 6.4  m

Available standard chassis:

Iveco Daily 35S14

Further chassis on request



*Above mentioned values are standard values and vary depending on options and chassis.

Units shown are partially optional equipped and do not always correspond to the standard version.

Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.

A possible 2% tolerance is contingent on structural components depending on chassis and equipment.>
