MAXIMUM PERFORMANCE OFFERED BY LATERAL OUTREACH

  • Telescopic boom
  • Worldwide installation on local chassis GVW >4,5 ton
  • Basket Rotatio 90°+90°
  • KTL coating
  • Compact structure, easy to use
  • Fast response
  • Fully hydraulic operation
  • Ergonomic design
  • Great versatility for use at height
  • Exceptional guide manoeuvrability
  • Workplace safety
  • PALFINGER professional quality

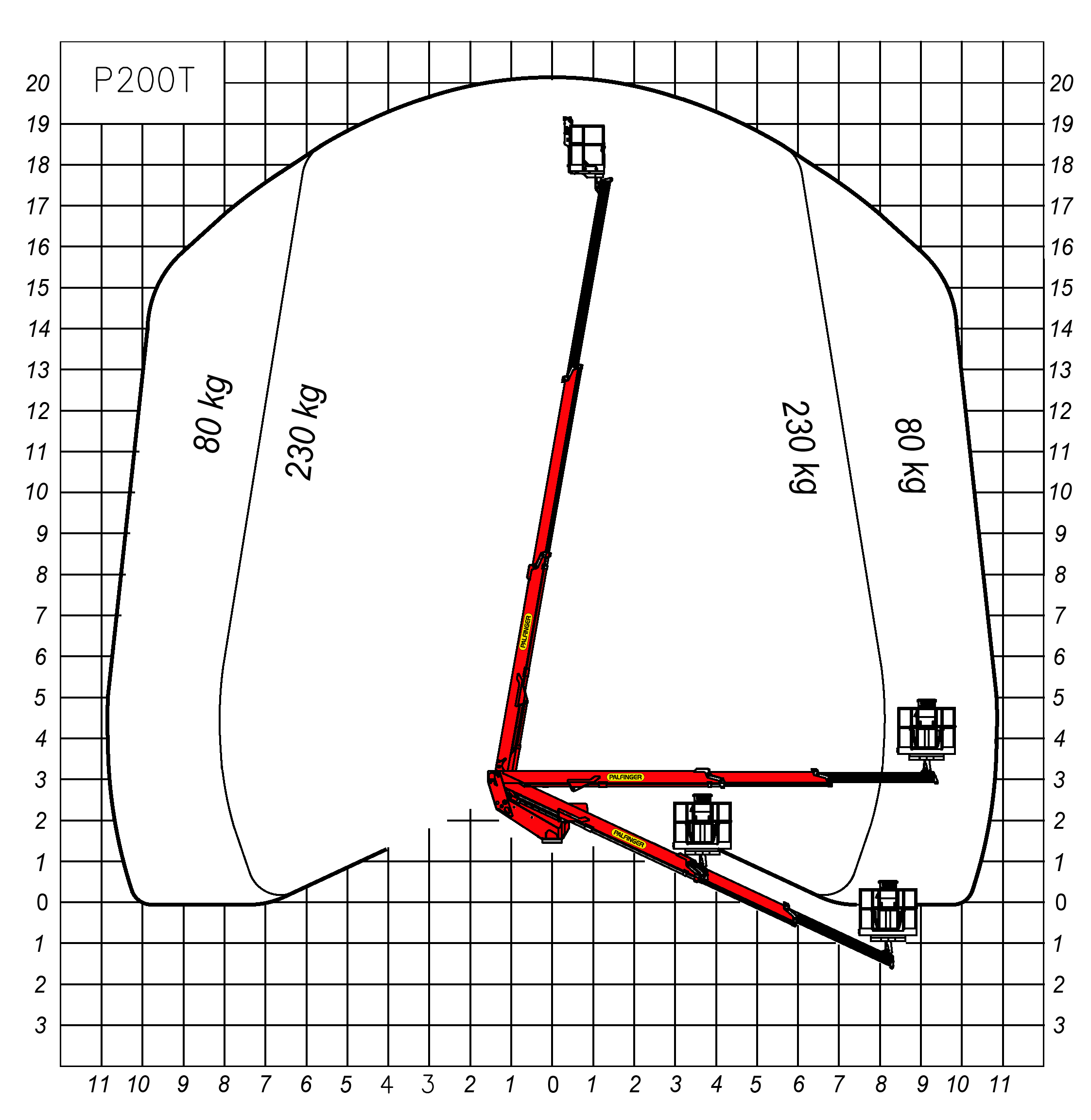

Max. height of work : 19.8  m
Max. horizontal outreach /with basket load : 10.8 m
max. basket load : 230  kg
Workman basket - breadth / length / height : 1.4 x 0.85 x 1.1 m
Rotation angle of turntable : 370°

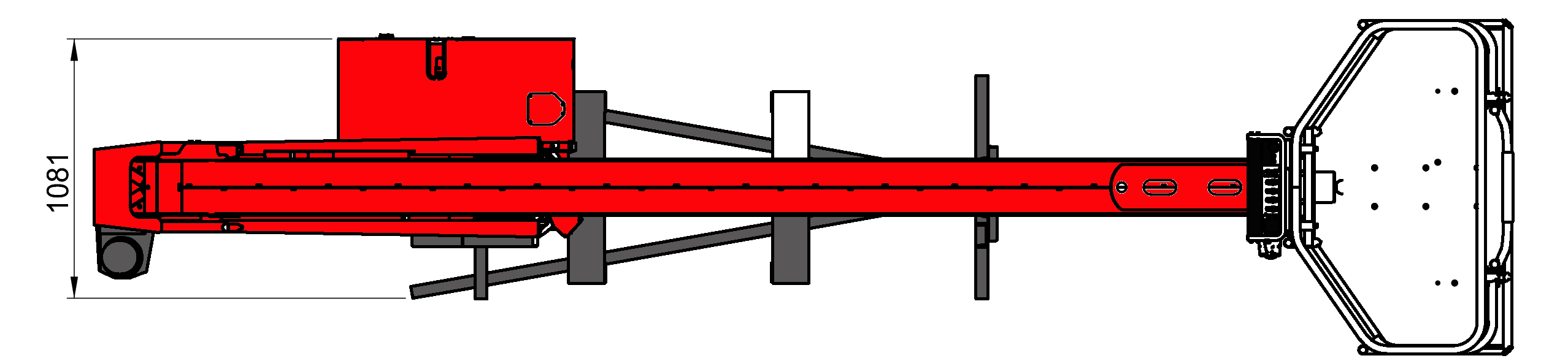

Height in transport position : 2.30  m
Width in transport position : 1.30  m
Length in transport position : 5.5  m


*Above mentioned values are standard values and vary depending on options and chassis.

Units shown are partially optional equipped and do not always correspond to the standard version.

Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.

A possible 2% tolerance is contingent on structural components depending on chassis and equipment.>
