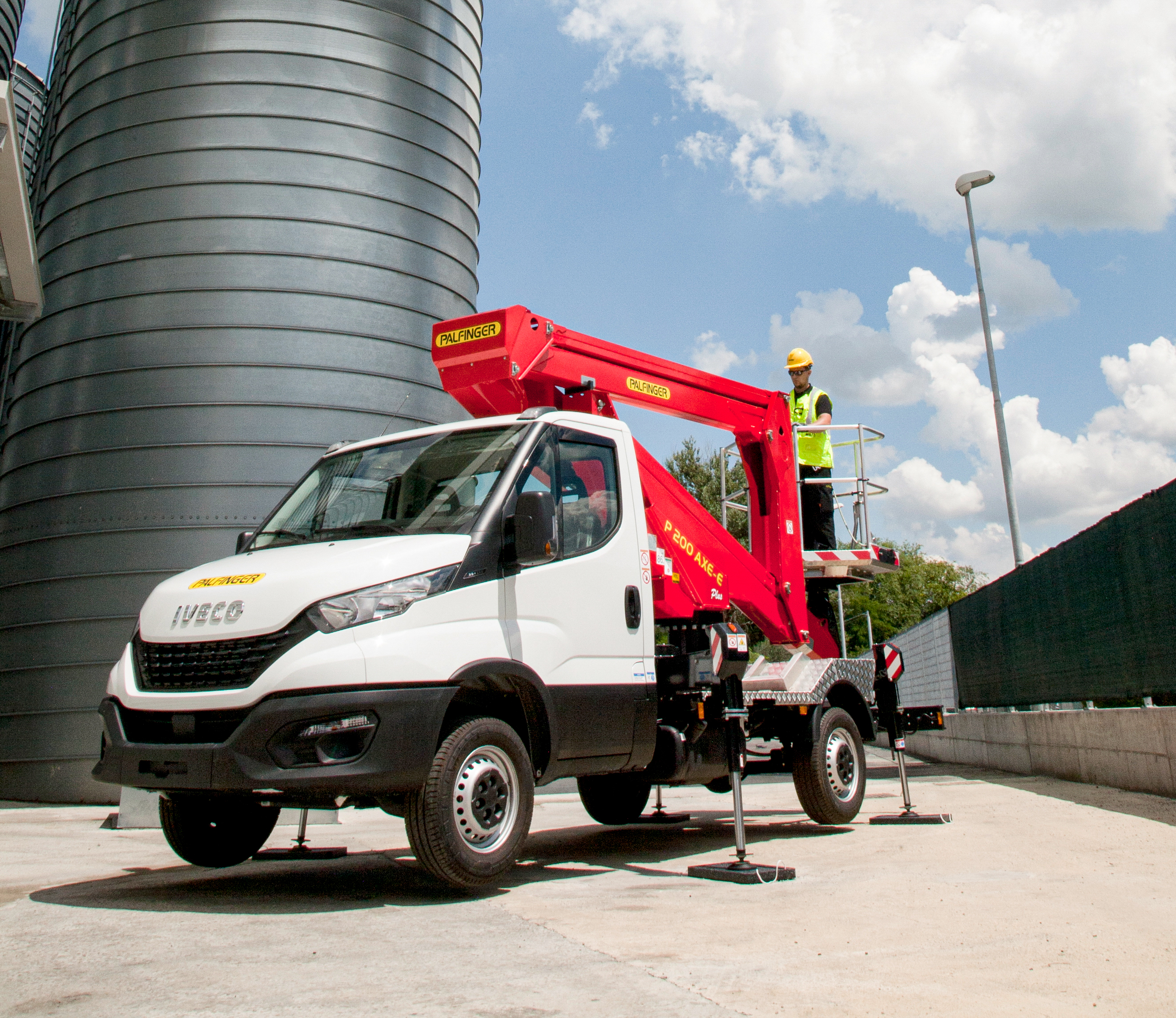

P200 AXE-E Smart Plus

Compact and agile on the road and during positioning, maximum versatility and safety in elevated positions

  • Lightweight and compact double articulated aerial platform for work in tight spaces, mounted on a 3.5 t truck. The double pantograph unit guarantees great versatility and the ability to move over in elevated positions.
  • Multifunction electric controls for greater precision, speed, and manoeuvring comfort
  • Vertical stabilisation with frontwards extending outriggers which compensate for uneven and sloping ground
  • Platform with three stabilisation possibilities for each working condition:
  1. Within the outer vehicle limits: for maximum compactness overall within small spaces
  2. With front crossmembers extended: for maximum performance when working in elevated positions
  3. Partial stabilisation: for maximum performance with minimum overall dimensions.
Max. height of work : 19.7  m
Max. basket floor height : 17.7  m
Max. horizontal outreach /with basket load : 8.4
Slewing range of basket : 90° + 90°
max. basket load : 250  kg
Workman basket - breadth / length / height : 1.4 x 0.85 x 1.1
Angle of main boom : -25° - + 80°
Rotation angle of turntable : 370° (not continuous)

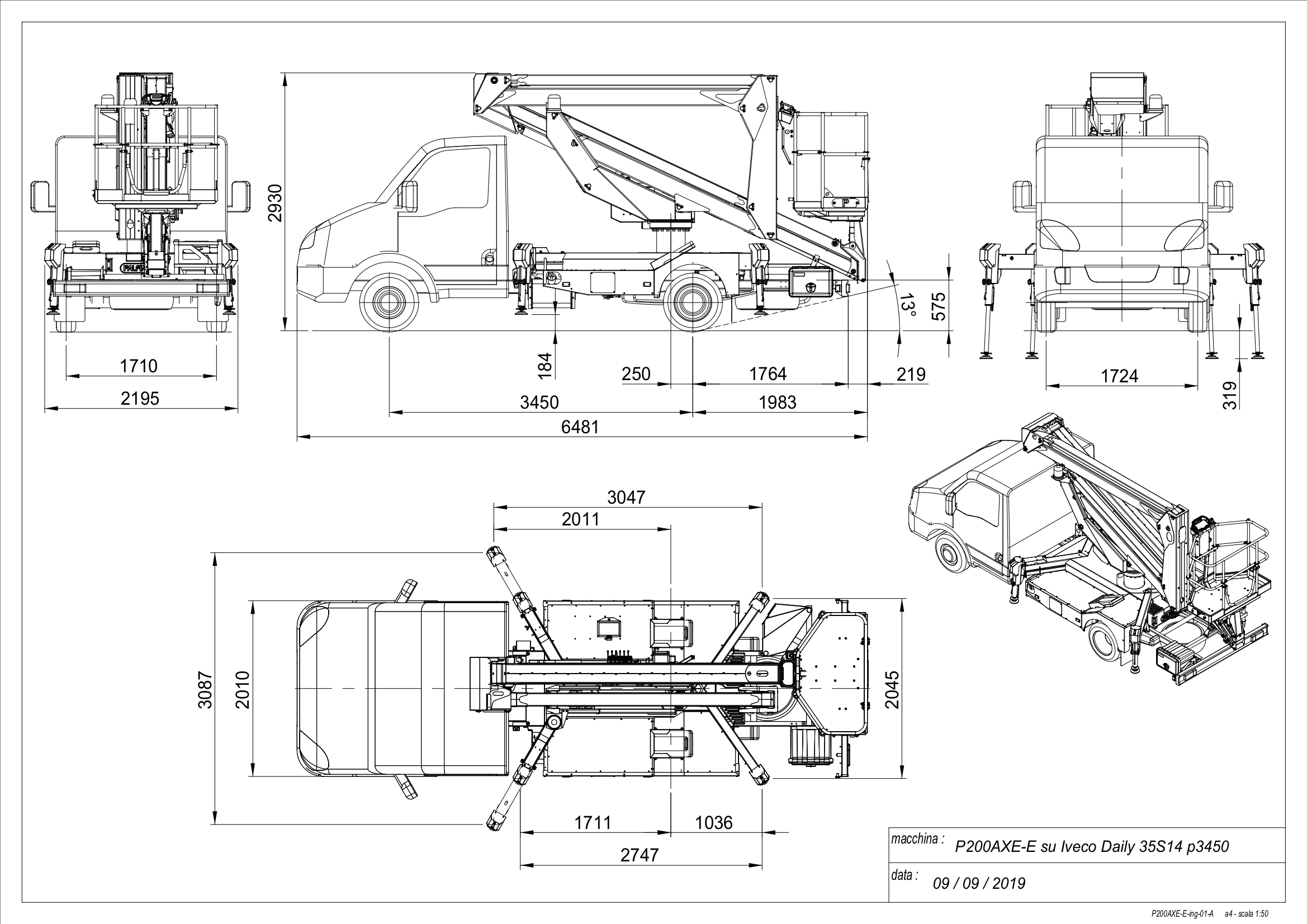

Height in transport position : 2.93  m
Width in transport position : 2.19  m

Available standard chassis:

Iveco Daily 35S14

Further chassis on request



*Above mentioned values are standard values and vary depending on options and chassis.

Units shown are partially optional equipped and do not always correspond to the standard version.

Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.

A possible 2% tolerance is contingent on structural components depending on chassis and equipment.>

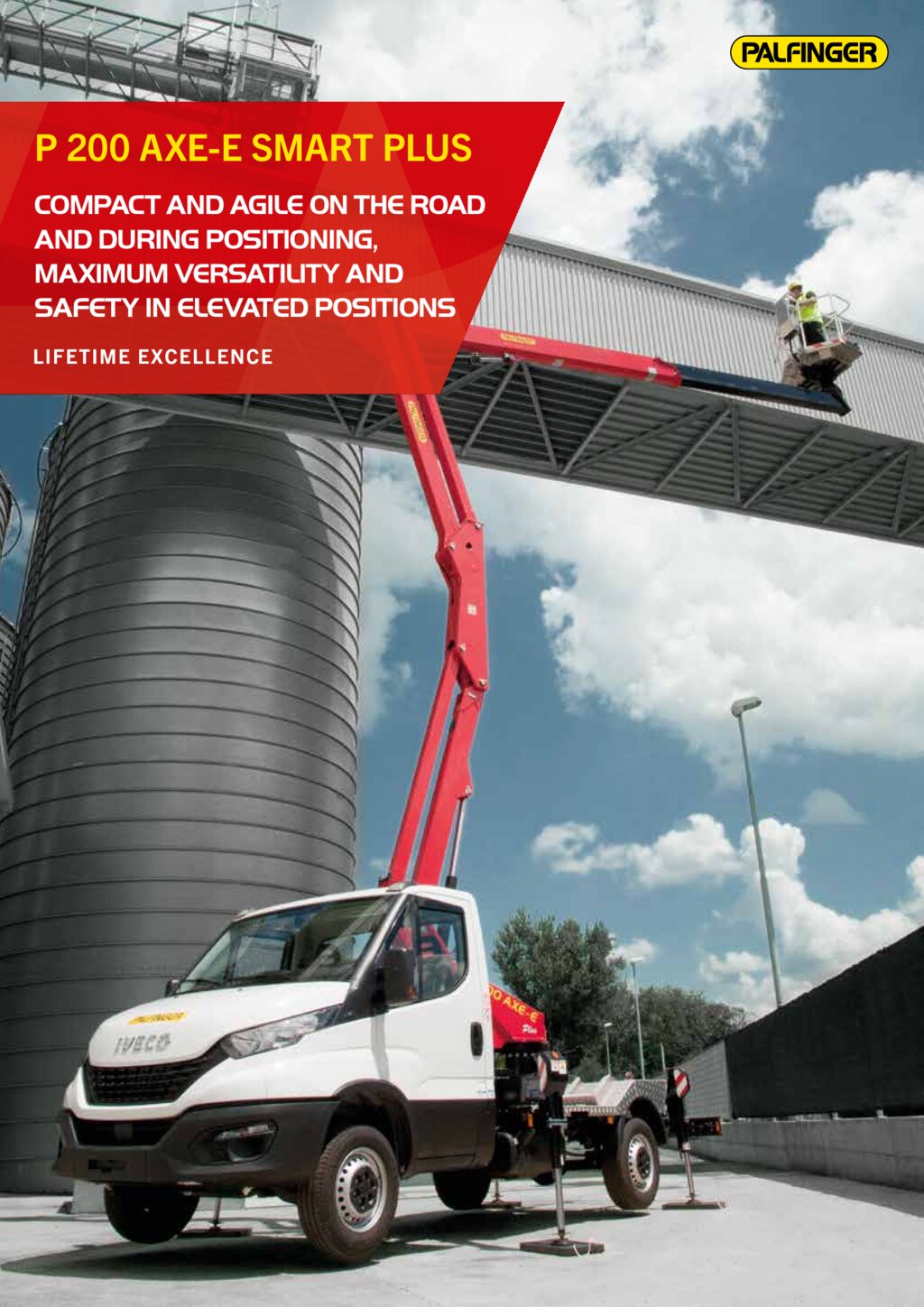

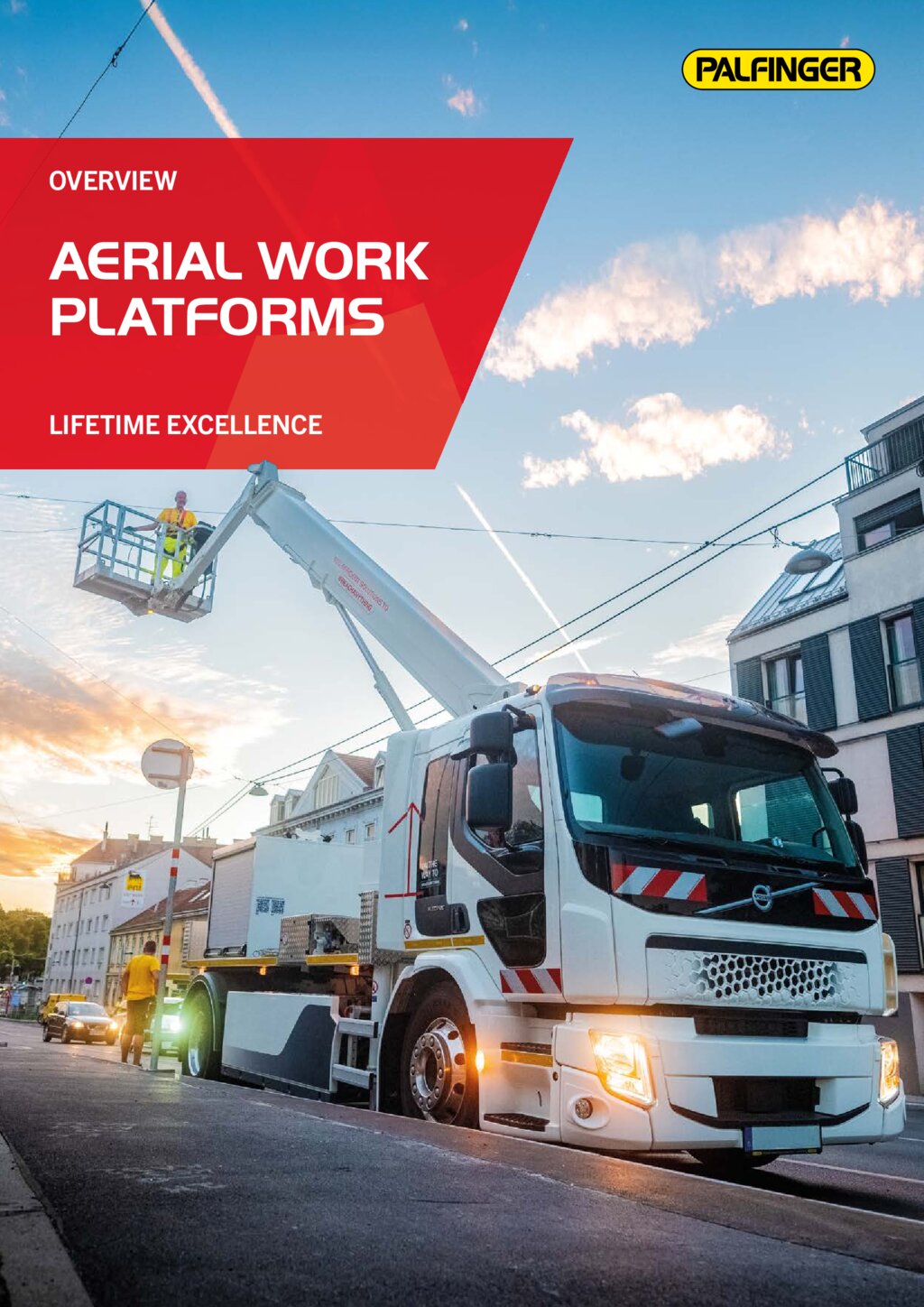

Download brochures & technical specifications
