Versatility at all stages

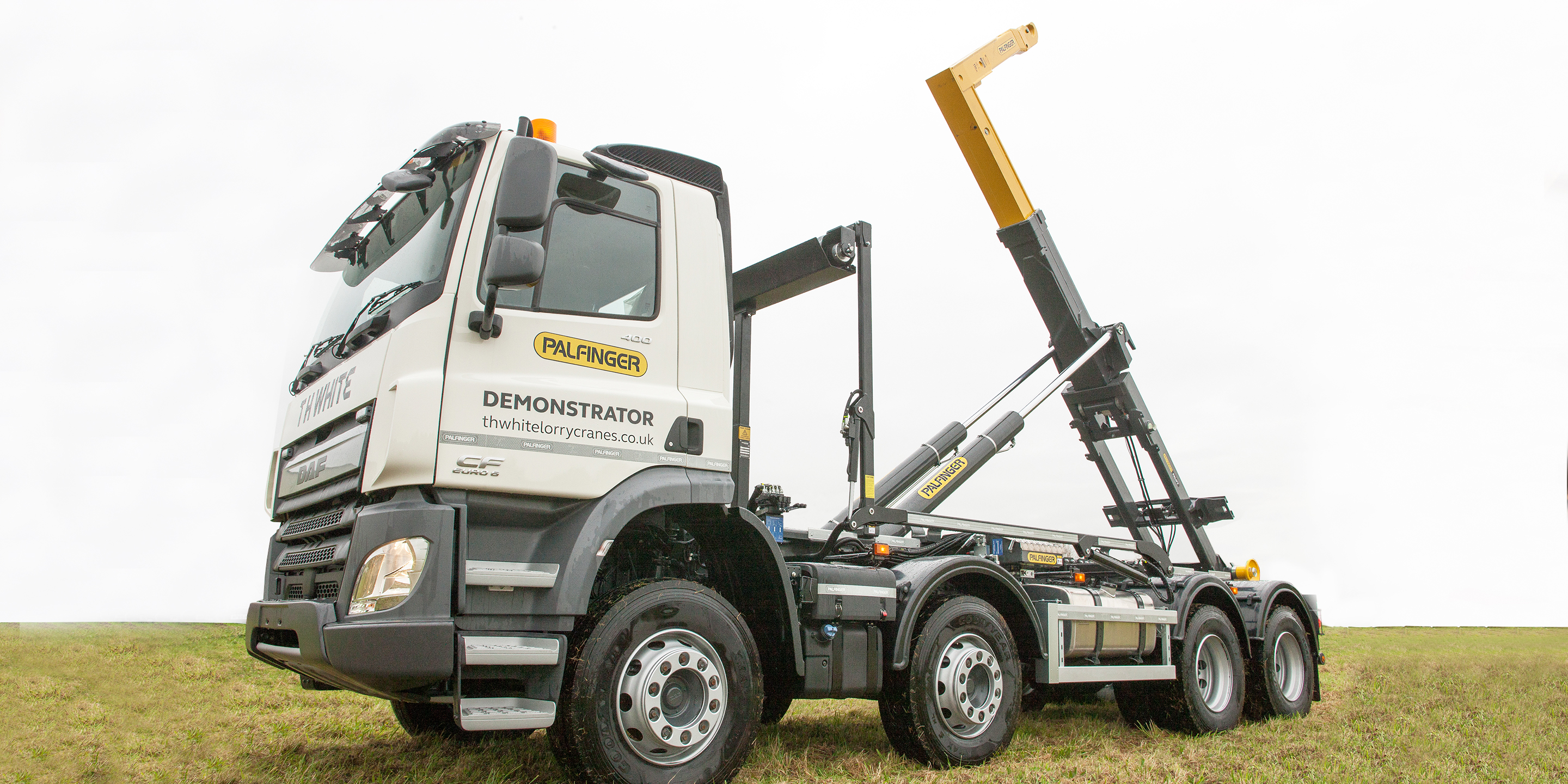

The versatility of the PALFINGER TELESCOPIC hooklift makes it the most popular choice among buyers. Covering the widest range of container length and lifting capacity on offer, it is configurable to meet a wide variety of standards and satisfy our customers worldwide. It’s light weight contributes to the assets to maximize application options safely. The different comfort levels make this range highly customizable to the needs of the users and the market.

The PH T 22 CHEM and PH T 22 A CHEM can be installed on chassis of 26 t to 28 t and are capable of handling containers up to 22 t in loading, unloading, trailer transfer and tipping.

Thanks to the telescopic jib, users will be able to handle a wide range of different container lengths and work on a variety of applications with the same vehicle. In addition, rental, transport or waste management companies increase the operating possibilities of their fleet. The range in length can be further extended with an articulated jib, while allowing the loading angle to be reduced to limit spillage.

The level of equipment technology can be tailored with the SLD or TEC lines to focus on the essentials or benefit from the latest innovations in safety, comfort and performance.

ADVANTAGES of the TELESCOPIC category

  • Compatibilty with CHEM containers
  • Covers the widest range of container lengths
  • Easy to use and service
  • Different technology lines to customize your equipment

PH T 22 CHEM

Market standards : CHEM

Hookheight (mm) : 1575

Length (mm) : 5600-5900

Container min. length : 4877 mm / 16'

Container max. length : 7000 mm / 23'

Rail width : 1142 mm / 3'

GVW truck : 26 t

Average weight : 2575 kg

Transport height : 255 mm

Tipping angle : 48-50°

TEC 5 SLD 5
Standard Features: Standard Features:
  • PAD Touch control
  • Pack-Vision
  • Soft stop
  • Bi-speed
  • Pro Active Drive (PAD) control
  • Pack-Vision
  • Soft stop
  • Bi-speed
Optional Features: Optional Features:
  • Automatic cycle
  • Truck communication
  • RRC with cab control
  • PALFINGER Origin Protection (POP)
  • Rapid motion
  • Fast tipping down
  • Dismoutable hook
  • Articulated arm
  • Connected (Fleet Monitor, Operator Monitor, Service Cockpit)
  • Automatic cycle
  • Truck communication
  • RRC with cab control
  • PALFINGER Origin Protection (POP)
  • Rapid motion
  • Dismoutable hook
  • Articulated arm
  • Connected (Fleet Monitor, Operator Monitor, Service Cockpit)



Know more about our technology lines



*Above mentioned values are standard values and vary depending on options and chassis.

Units shown are partially optional equipped and do not always correspond to the standard version.

Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.

Units shown are partially optional equipped and do not always correspond to the standard version.
