Designed for the harshest work, it will never let you down

Designed to operate in harsh environments or off-road applications, the P 14 ensures easy and safe handling of loads up to 14 t. The available power of the Power hooklift allows optimal use, even in difficult working conditions, even if the load exceeds the expected weight, and if the container is in a ditch.

It can be installed on chassis of 19 t GVW, covering all the jobs that require powerful and robust equipment: in agriculture, construction, off-road and several other application areas.

The exclusive design of the Power category arms provides a reserve of power to lift containers from ditches and offers great versatility in handling and transporting equipment or transferring to trailers. The Power equipped vehicle will always be able to face the challenge!

When working conditions already require a lot of attention, it is important to be able to count on particularly reliable equipment. Within the wide range of PALFINGER hookloaders, the Power series has the highest safety factor in the calculation of the mechanical structure. Therefore, the users that are most safety-conscious, choose the POWER model for handling their containers.

ADVANTAGES of the POWER category

  • Lifting capacity remains the same for any frame height
  • Robust design for tough applications
  • Pit loading
  • Minimal maintenance and reduced wearing

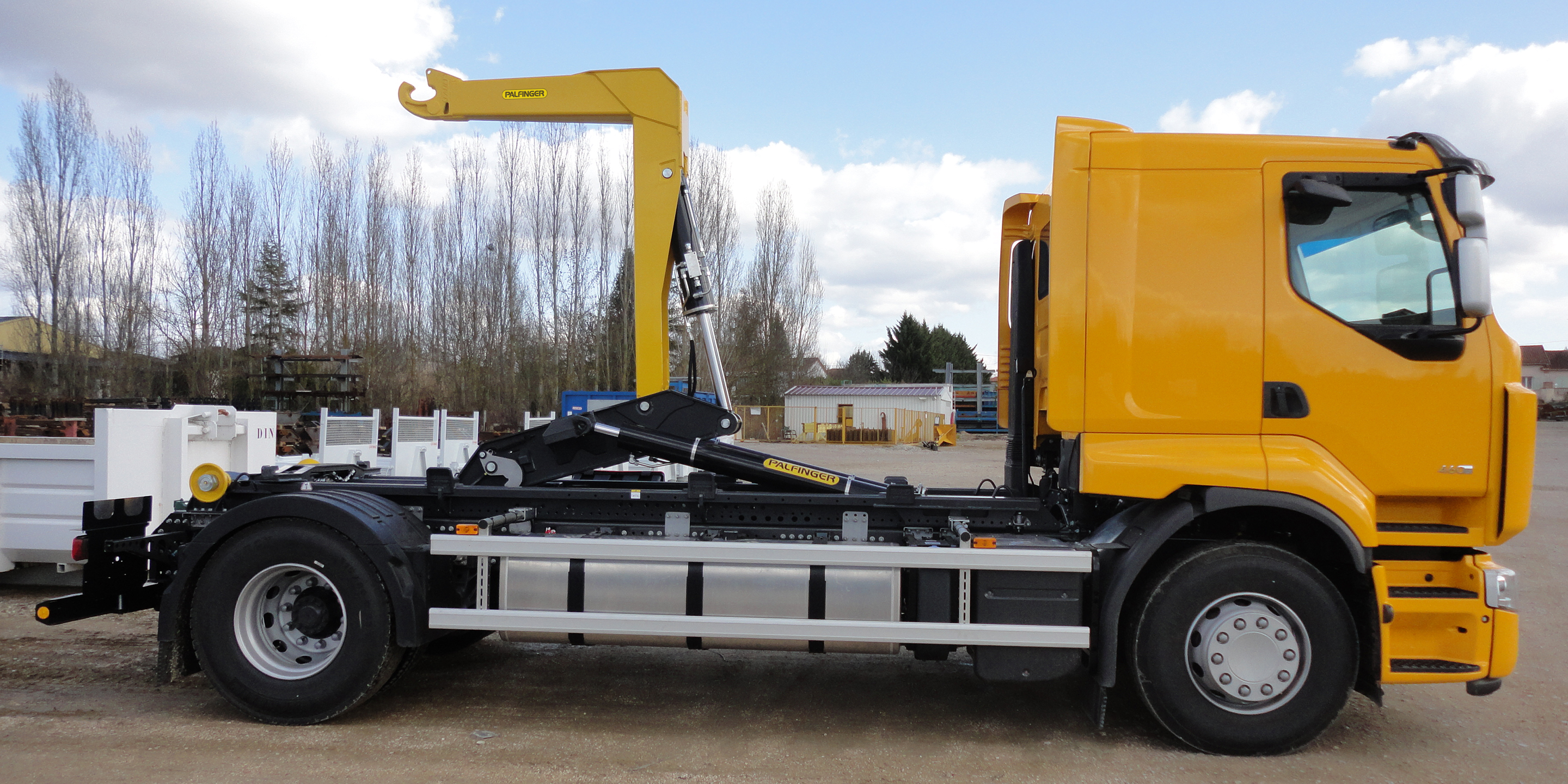

P 14

Market standards : NF - DIN

Hookheight (mm) : 1425-1570

Length (mm) : 4200-4350-4550-4700-4850-5050-5250-5400-5500

Container min. length : 4200 mm

Container max. length : 6600 mm

Rail width : 1060 mm

GVW truck : 19 t

Average weight : 1650 kg

Transport height : 220 mm

Tipping angle : 45-52°





*Above mentioned values are standard values and vary depending on options and chassis.

Units shown are partially optional equipped and do not always correspond to the standard version.

Country-specific regulations must be observed. Dimensions may vary. Subject to technical changes, errors and translation mistakes.

Units shown are partially optional equipped and do not always correspond to the standard version.
